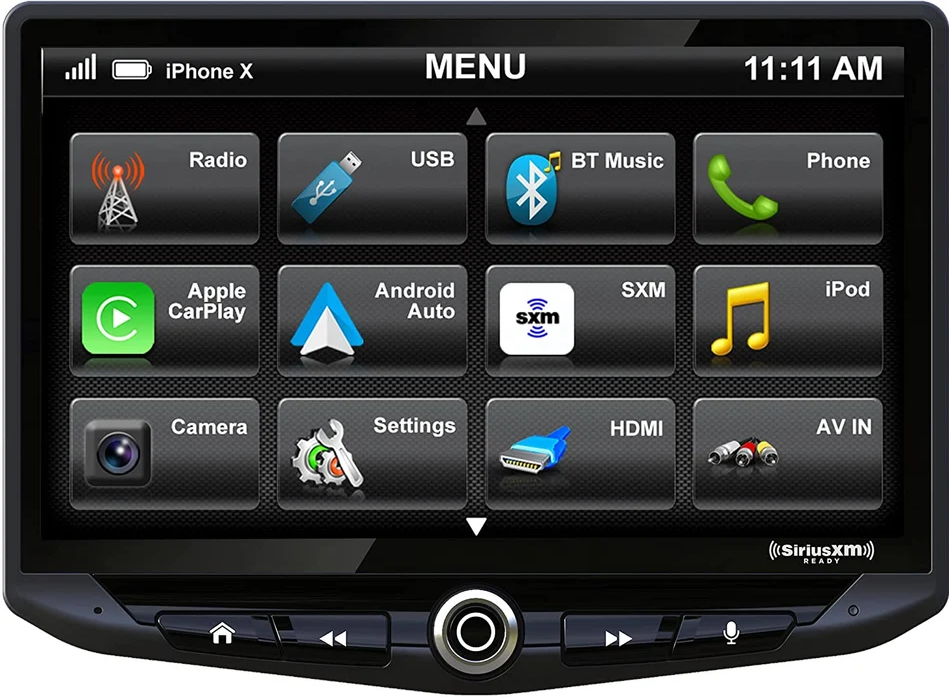

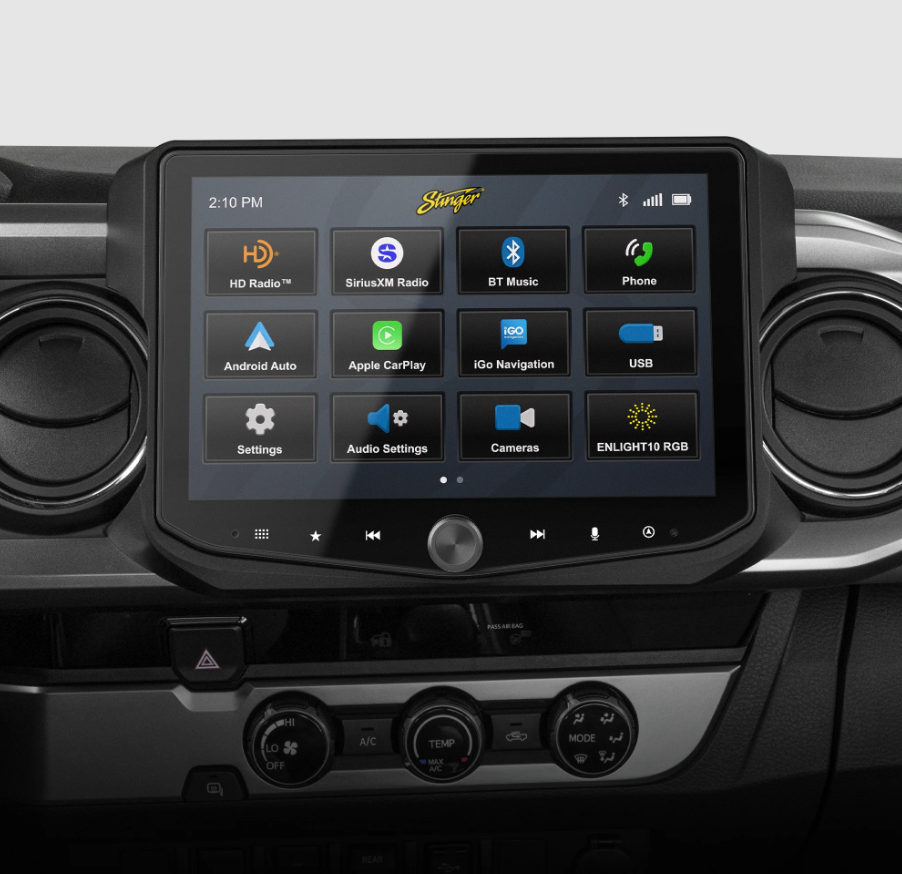

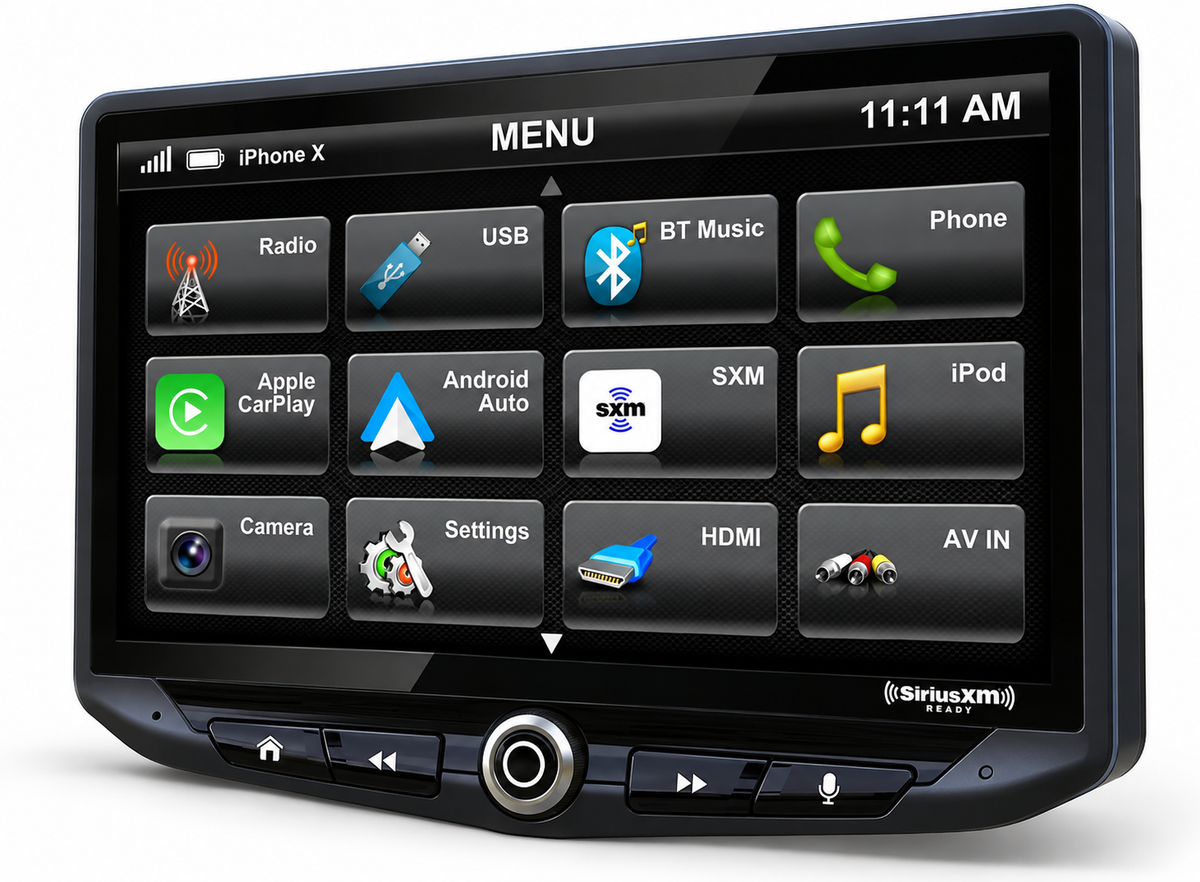

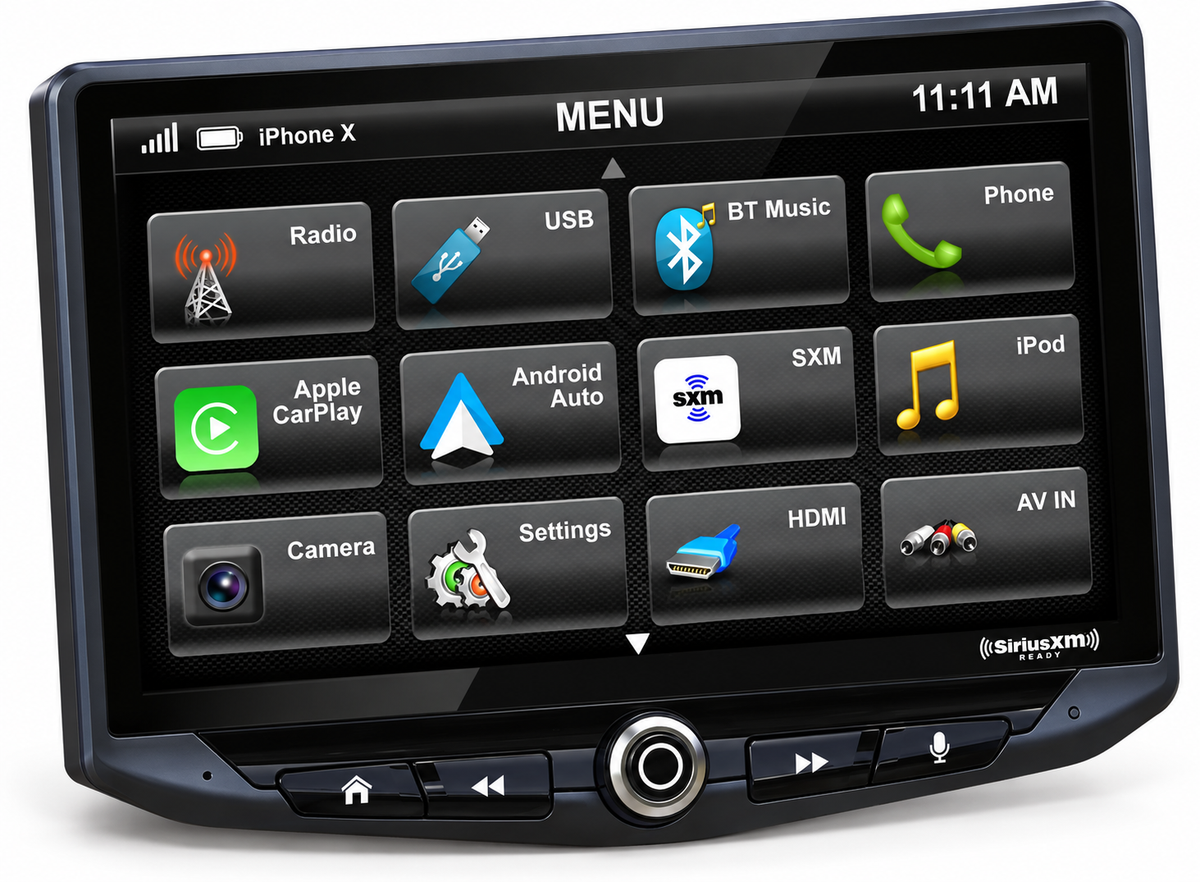

Stinger UN1810-SR HEIGH10 10" XM-Ready Receiver with Apple CarPlay & Android Auto

Upgrade your vehicle's infotainment experience with the Stinger UN1810-SR HEIGH10 — a versatile 10" modular multimedia receiver designed for use with Stinger SR/SRK installation kits. Featuring a large 1024 x 600 capacitive touchscreen, Apple CarPlay, Android Auto, SiriusXM Ready capability, Bluetooth audio streaming, multiple camera inputs, HDMI connectivity, and advanced audio controls, the HEIGH10 delivers modern entertainment, smartphone integration, and flexible installation options in a sleek floating-screen design.

Designed around a modular 1-DIN chassis, the HEIGH10 provides installation flexibility for a wide range of vehicles and applications when paired with the appropriate Stinger SR/SRK kit. Its 10" touchscreen displays 16.7 million colors, while the built-in 4 x 50W peak amplifier, 6-channel RCA outputs, 15-band EQ, crossover controls, and Toslink optical output provide extensive options for building and tuning an aftermarket audio system.

Key Features

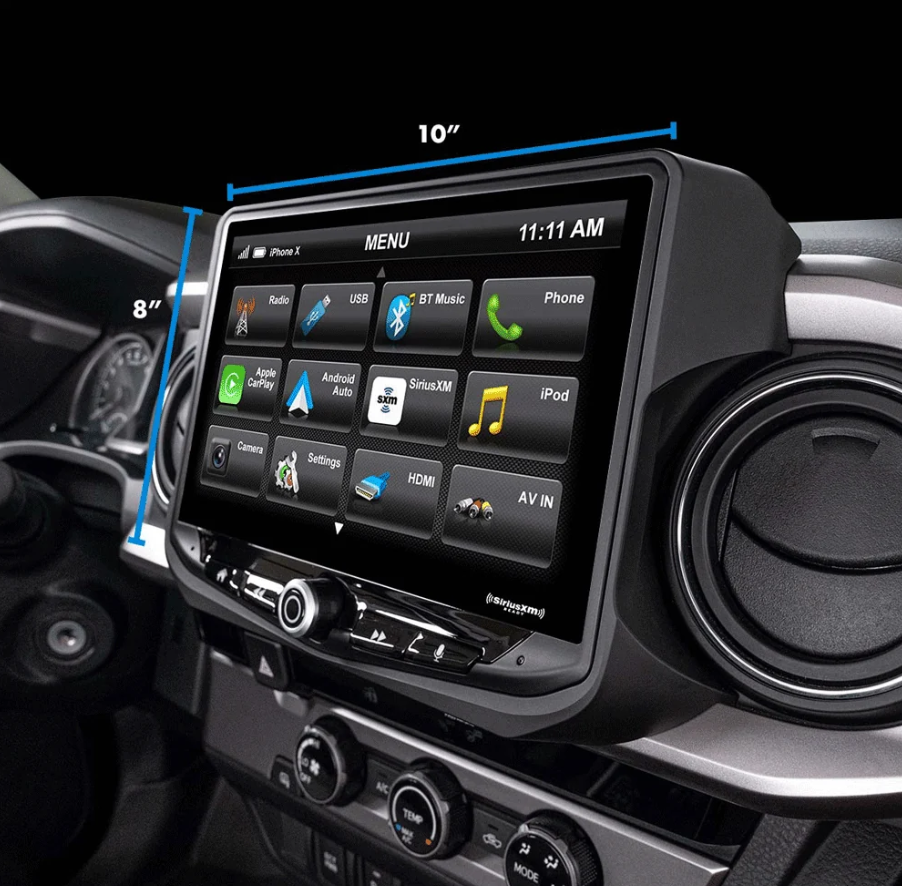

• 10" HD Capacitive Touchscreen – Large 1024 x 600 digital touchscreen with 16.7 million colors for a clear, vibrant display
• Floating Display Design – Large-screen multimedia interface with a modern floating-screen appearance
• Modular 1-DIN Chassis – Separate display and receiver design provides flexible installation options
• SR/SRK Kit Compatible – Designed specifically for use with compatible Stinger SR/SRK installation and integration kits
• Apple CarPlay – Access compatible navigation, music, calls, messages, and apps through your connected iPhone
• Android Auto – Access compatible navigation, music, communication, and other smartphone features from your Android device
• SiriusXM Ready – Supports SiriusXM with the required SiriusXM Connect Vehicle Tuner and subscription
• AM/FM Radio – Built-in AM/FM tuner with PTY and RT information
• Bluetooth 4.2 – Hands-free calling and wireless music streaming with A2DP and aptX
• High-Power Built-In Amplifier – 4 x 50W peak power for powering compatible speakers directly
• 6-Channel RCA Outputs – 4V preamp outputs with dedicated subwoofer control for aftermarket amplifiers and processors
• Toslink Optical Output – Variable optical audio output provides a clean digital connection to compatible DSPs and processors
• 15-Band Graphic EQ – Fine-tune your system with a comprehensive 15-band adjustable equalizer
• User EQ Presets – Save customized audio settings for different listening preferences and sources
• Built-In Crossover – Adjustable high-pass and low-pass filtering for system tuning
• Time Alignment – Adjust speaker timing for improved sound staging and listening position optimization
• HDMI Input – Connect compatible HDMI-equipped devices for additional audio/video functionality
• Dual USB Inputs – Two rear USB connections for compatible media devices and charging
• Multiple Camera Inputs – Supports up to four camera video inputs with wired triggers for rear, blind-spot, trailer, and other camera applications
• Rear Camera Audio Input – Supports microphone audio from compatible rear-camera applications
• Optional iGO Navigation – Built-in microSD card slot supports optional iGO navigation software
• Steering Wheel Control Ready – Supports hardwired remote control integration when used with compatible installation hardware
• Customizable Display – Personalize the interface with customizable backgrounds and illumination settings
• Flexible Installation – Modular design can accommodate single-DIN, double-DIN, flush-mount, and angled installation configurations when properly integrated

Specifications

• Product Type: Modular Multimedia Receiver
• Brand: Stinger
• Model: UN1810-SR
• Series: HEIGH10
• Display Size: 10"
• Display Resolution: 1024 x 600
• Display Type: Capacitive Touchscreen
• Display Colors: 16.7 Million
• Aspect Ratio: 16:9
• Chassis Type: Shallow 1-DIN Modular Chassis
• Apple CarPlay: Yes
• Android Auto: Yes
• SiriusXM: Ready
• SiriusXM Replay: Supported
• AM/FM Radio: Yes
• Radio Information: PTY / RT
• Bluetooth: 4.2
• Bluetooth Audio: A2DP with aptX
• Built-In Amplifier: Yes
• Amplifier Power: 50W x 4 Peak
• Continuous Power: 25W x 4 @ 4 Ohms
• RCA Outputs: 6-Channel
• RCA Preamp Voltage: 4V
• Subwoofer Control: Yes
• Equalizer: 15-Band Graphic EQ
• EQ Presets: 6 User Presets
• Crossover: Adjustable HPF / LPF
• Time Alignment: Yes
• Optical Audio Output: Toslink Variable Output
• HDMI Input: 1
• USB Inputs: 2 Rear USB
• USB Output: 1.5A
• Camera Inputs: 4
• Camera Triggers: Wired
• Rear Camera Audio Input: Yes
• MicroSD Slot: Yes
• Navigation: Optional iGO Navigation
• Steering Wheel Control Ready: Yes
• Display Customization: Yes
• Operating Voltage: 9–18V DC
• Maximum Current Consumption: 10A Fused
• Radio Module Dimensions: 178 x 100 x 116 mm
• Display Dimensions: 247.2 x 180.6 x 48.5 mm
• Installation Type: Modular
• Installation Kit Required: Yes
• Compatible Installation Kits: Stinger SR / SRK Kits
• Vehicle-Specific Dash Kit Included: No
• Wiring Harness Included: No
• GPS Navigation Included: No
• SiriusXM Tuner Included: No

What's in the Box

• Stinger HEIGH10 UN1810-SR 10" Multimedia Receiver
• 10" Capacitive Touchscreen Display
• Main Receiver / 1-DIN Module
• Display Connection Cable
• USB Connection Cables
• Mounting Hardware
• Installation Documentation
