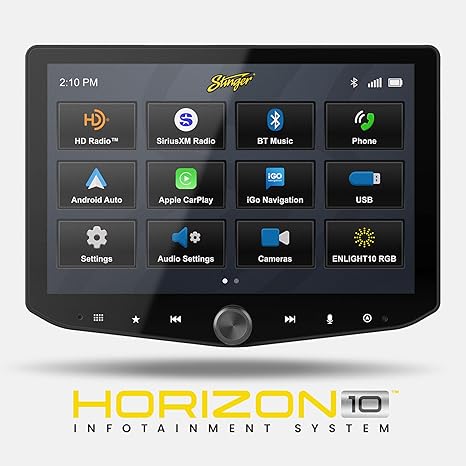

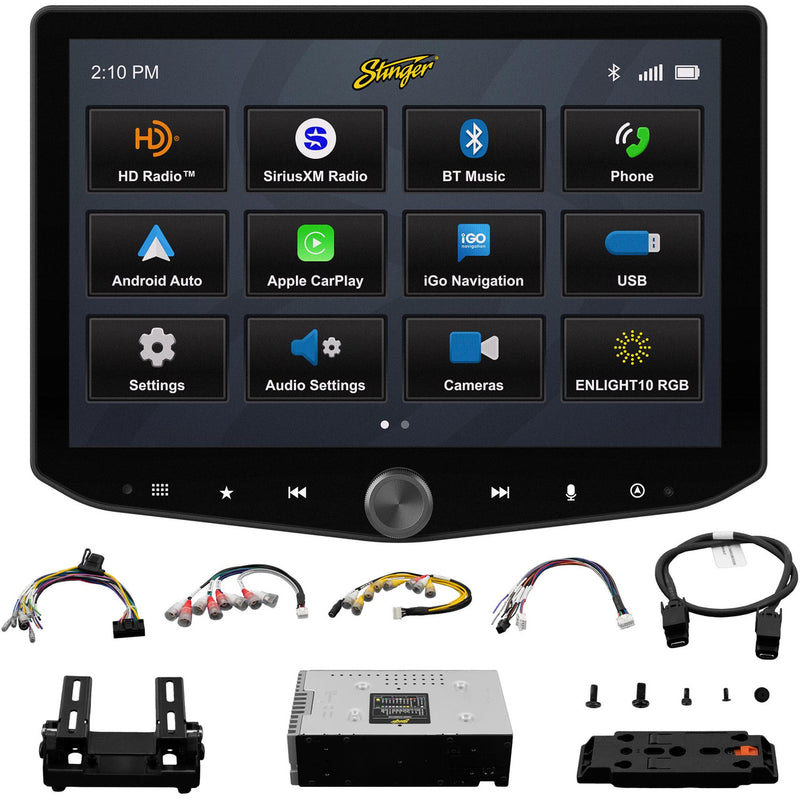

Stinger IX210 Horizon10 10.1-inch Floating Multimedia Infotainment Display System
The Stinger HORIZON10 is a feature-packed 10.1-inch HD touchscreen car radio designed to enhance your driving experience with advanced technology and seamless connectivity. The HORIZON10’s IP65 weather-resistant display is engineered to withstand various driving conditions. Its anti-glare, anti-reflection, and anti-fingerprint coating ensures that you get a clear and flawless view in all environments, making it perfect for both on-road and off-road adventures. The HORIZON10 offers on-screen control for up to four accessories, making it ideal for vehicles with modifications. Compatible with both single and double-DIN installation kits, it fits a wide variety of vehicles, including cars, classic vehicles, RVs, UTVs, and more. For optimal performance, professional installation is recommended.
Features:

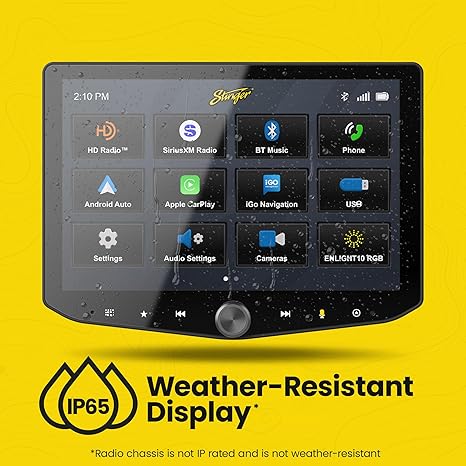

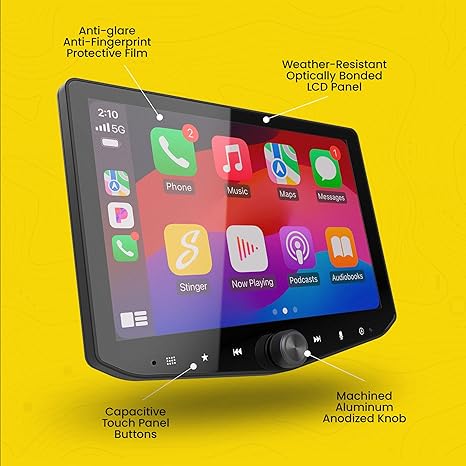

10.1" IP65 Weather-Resistant Touchscreen: The large 10.1” 1280x800 floating touchscreen offers clear and detailed visuals with anti-glare and anti-fingerprint film protection. A dust and weather-resistant screen lets you brave the elements, whether off-roading or cruising with the top down.

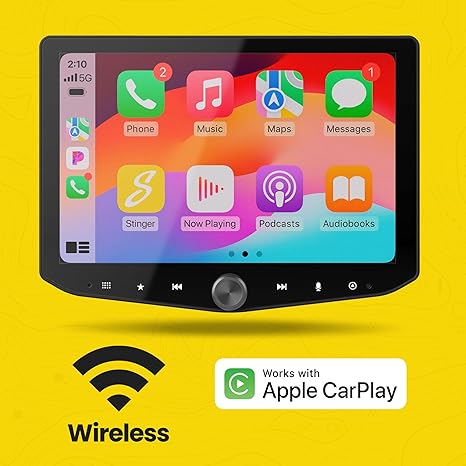

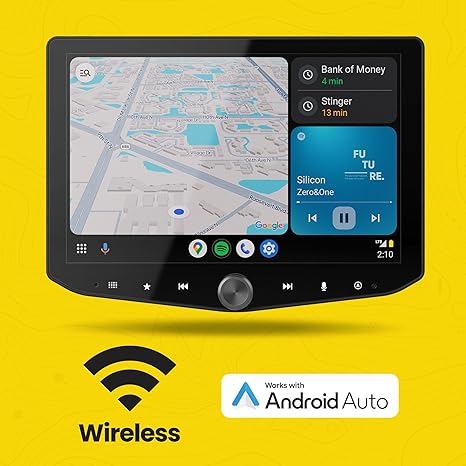

Wired & Wireless Apple CarPlay/ Android Auto: Wirelessly connect your iPhone or Android phone to Apple CarPlay or Android Auto, putting navigation, calls, messages, music, and more at your fingertips.
Bluetooth 5.1 A2DP & WiFi Connectivity: Supports dual phone connections for fast hands-free calling, music streaming, and WiFi connectivity.
2 USB-A Inputs, 1 USB-C Input, 1 HDMI Input: Plug in your phone for wired Apple CarPlay or Android Auto access with fast 3A USB-C phone charging.
4 AHD/CVBS Camera Inputs: Integrate a complete camera system with a front/rear dashcam, blind spot cameras, and backup camera for a safe and stress-free drive.
SiriusXM-Ready & Built-In HD Radio Tuner: With SiriusXM satellite and HD AM/FM radio, enjoy a wide variety of audio content including sports, music, talk shows, podcasts, and more.
Advanced Audio Features: On-screen control for AC DM Smart app, 4.5 Vrms & 8ch RCA outputs with subwoofer control, Toslink (optical) audio output (48 kHz variable),15-band adjustable EQ, 6 user EQ presets, and built-in crossover with HPF & LPF work seamlessly together to unleash a world of personalized sound.
Specifications:
| Category | Specification |
|---|---|
| Operating Voltage | 10.5VDC to 16VDC |
| Grounding System | Negative Ground |
| Max Current Consumption | 15A fused |
| Dimensions | |
| Radio Module (WxHxD) | 177.7 mm x 112.96 mm x 50 mm |
| Display (WxHxD) | 247.2 mm x 180.56 mm x 36.19 mm |
| Display | |
| Diagonal Size | 10.1 inches |
| Aspect Ratio | 16:10 |
| Resolution | 1280 × 800 (1,024,000 pixels) |
| Active Area | 216.96 mm (W) x 135.6 mm (H) |
| Operating Temperature | -20°C to 70°C |
| Audio | |
| Load Impedance | 4Ω nominal / 2Ω allowable |
| Power Output | 18W x 4ch @ 4Ω, 20Hz-20KHz, 1% THD |
| Speaker Level Adjustment | 0-40 steps |
| Audio Preamp Output Level | 4.5Vrms typical |
| Equalizer | 15-band (25Hz-16KHz), +/-6dB |
| USB | |
| USB 2.0 (2) | Max 1.5A, 128GB, FAT32, NTFS |
| USB 3.0 (1) | Max 3A, 128GB, USB-C |
| Bluetooth & WiFi | |
| Bluetooth Version | V5.1 dual |
| WiFi | Supports IEEE 802.11a/b/g/n/ac |
