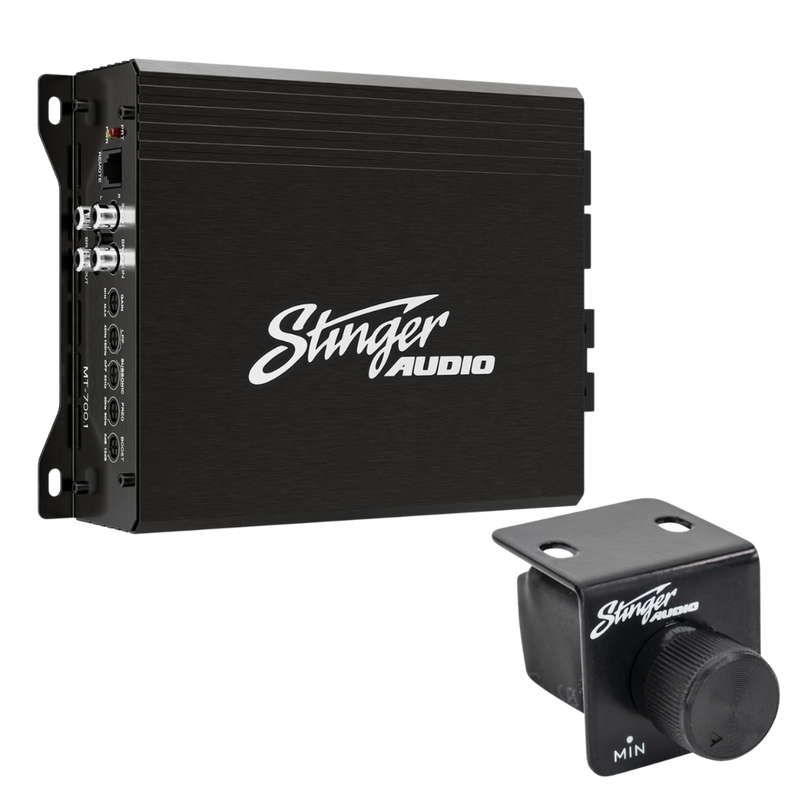

Stinger Audio MT-700.1 700 Watt (RMS) Class D Monoblock Car Audio Amplifier
Features
-
Digital Class-D Mono Block Amplifier: Delivers powerful performance in a compact size, ensuring efficient and high-quality power for your car audio subwoofer system.
-
Small Footprint and Sturdy Design: Precise sound control with our durable metal potentiometer, designed for long-lasting reliability and exceptional tonal adjustments.
-
Robust Unregulated Power Supplies: Advanced pulse width modulator integrated circuits in the power supply circuitry offer superior performance and efficiency.
-
Designed with Advanced HEXFET® Power MOSFET: Featuring reduced on-resistance, faster switching speeds, and unmatched reliability.
-
500V High Current Impulse voltage capacitor: Provides protection for the MOSFET with low loss AC peak surge over-current ability.
-
Direct Insert Power and Speaker Terminals: Decreased resistance for higher power transfer and efficiency.
-
Remote Bass Controller: Enjoy convenient audio control from your driver's seat, allowing you to effortlessly adjust bass levels.
Description
Prepare for an unbeatable audio experience with the Stinger Audio MT700.1 Monoblock Amplifier! This energy-efficient powerhouse churns out 700-Watts of RMS power at 1 ohm, giving your vehicle mind-blowing bass and tonal clarity beyond imagination. Built using superior quality components, including MOSFET power supply, high-grade capacitors, advanced transformers, and high-quality inductors, this Class D car audio amplifier ensures maximum current flow, allowing reliable performance with every heart-pounding beat.
RMS: 300W x 1 @ 4 ohms | 500W x 1 @ 2 ohms | 700 x 1 @ 1 ohm
Number of Channels: |
1 |
1Ω: |
700 Watts x 1 Channel |
2Ω: |
500 Watts x 1 Channel |
4Ω |
300 Watts x 1 Channel |
Bridged RMS Rating / 2Ω Minimum |
1200W x 1 |
Signal to Noise (@ CEA Standard) |
-93db |
Input Sensitivity 0.2-6v |
0.2-6v |
Gain |
0.2v - 6v |
Crossover Control, Linkwitz-Riley |
SUB 0Hz - 50Hz (Subsonic) LP 40Hz - 180Hz @ 12dB/Oct |
Bass-Boost Frequency Range |
30-80 Hz |
Bass-Boost Q |
0-12dB |
Frequency Response (+- 1dB) |
10Hz - 180Hz |
Efficiency (Average) |
85% |
Topology Class: |
Class D |
Remote Bass Control |
Included |
Operating Voltage |
9V to 16V |
Power Terminals: |
4 Gauge |
Speaker Terminal: |
8 Gauge |
Recommended External Fusing |
80A |
