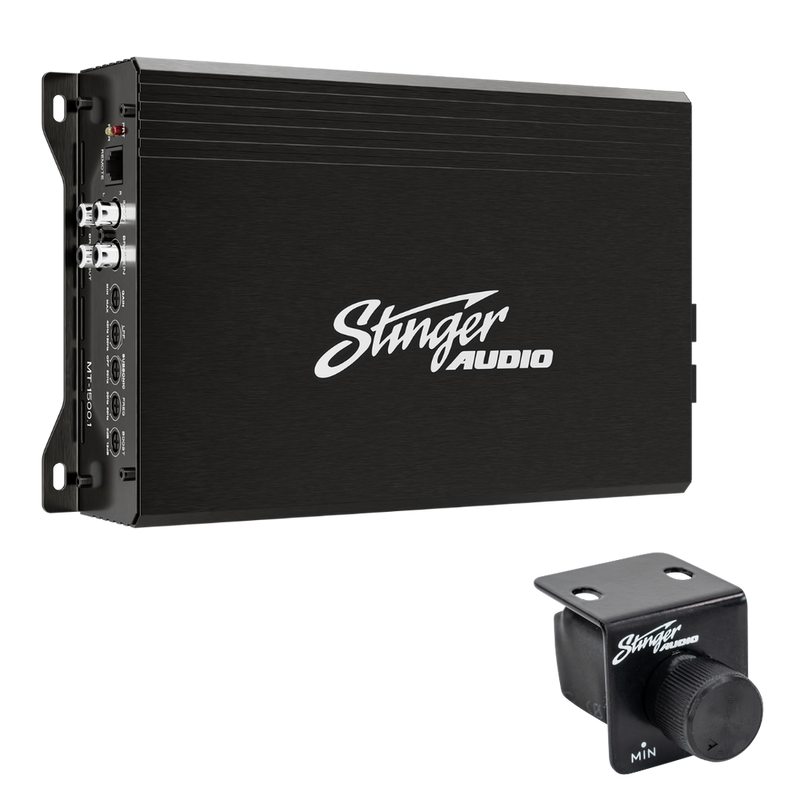

Stinger Audio MT-1500.1 1,500 Watt (RMS) Class D Monoblock Car Audio Amplifier
Features
-
Digital Class-D Mono Block Amplifier: Our Class D mono amplifier packs a powerful punch, with high efficiency and an incredibly small form factor. Perfect for powering your car audio subwoofer system without sacrificing sound quality or performance.
-
Small Footprint and Sturdy Design: Experience total tonal control with our precision metal potentiometer, built to the highest standards for lasting reliability. Fine-tune your sound like never before.
-
Robust Unregulated Power Supplies: Our power supply circuitry utilizes advanced pulse width modulator integrated circuits, designed to provide superior performance and unmatched efficiency. Remote Bass Controller Included: Superior audio control from the comfort of your driver's seat. Our flush-mount knob makes installation easy, allowing you to effortlessly adjust bass levels with just one twist.
-
Designed with Advanced HEXFET® Power MOSFET: Harness the power of innovated engineering and cutting-edge technology with our advanced HEXFET® Power MOSFET. Boasting reduced on-resistance, faster switching speeds, and unparalleled reliability.
-
500V High Current Impulse voltage capacitor: Special Class X2 aluminum zinc high frequency capacitor with low loss AC peak surge over-current ability to protect the MOSFET.
- Direct Insert Power and Speaker Terminals: Decreased resistance for higher power transfer and efficiency.
Description
Ready to amp up your audio? Look no further than the Stinger Audio's MT1500.1 Monoblock amplifier! Boasting an impressive 1500-Watts RMS power at 1 ohm, enjoy thumping bass in any vehicle. With robust features such as MOSFET power supply, high-quality capacitors, advanced transformers, and leading-edge inductors you can count on peak performance and reliability with this state of art system. Get your monstrous low end today with no compromises on quality or performance!
RMS: 550W x 1 @ 4 ohms | 1,000W x 1 @ 2 ohms | 1,500 x 1 @ 1 ohm
Monoblock Class D Car Amplifier
Number of Channels: |
1 |
1Ω: |
1500 Watts x 1 Channel |
2Ω: |
1000 Watts x 1 Channel |
4Ω |
550 Watts x 1 Channel |
Bridged RMS Rating / 2Ω Minimum |
2800W x 1 |
Signal to Noise (@ CEA Standard) |
-93db |
Input Sensitivity 0.2-6v |
0.2-6v |
Gain |
0.2v - 6v |
Crossover Control, Linkwitz-Riley |
SUB 0Hz - 50Hz (Subsonic) LP 40Hz - 180Hz @ 12dB/Oct |
Bass-Boost Frequency Range |
30-80 Hz |
Bass-Boost Q |
0-12dB |
Frequency Response (+- 1dB) |
10Hz - 180Hz |
Efficiency (Average) |
82% |
Topology Class: |
Class D |
Remote Bass Control |
Included |
Operating Voltage |
9V to 16V |
Power Terminals: |
4 Gauge |
Speaker Terminal: |
8 Gauge |
Recommended External Fusing |
150A |
