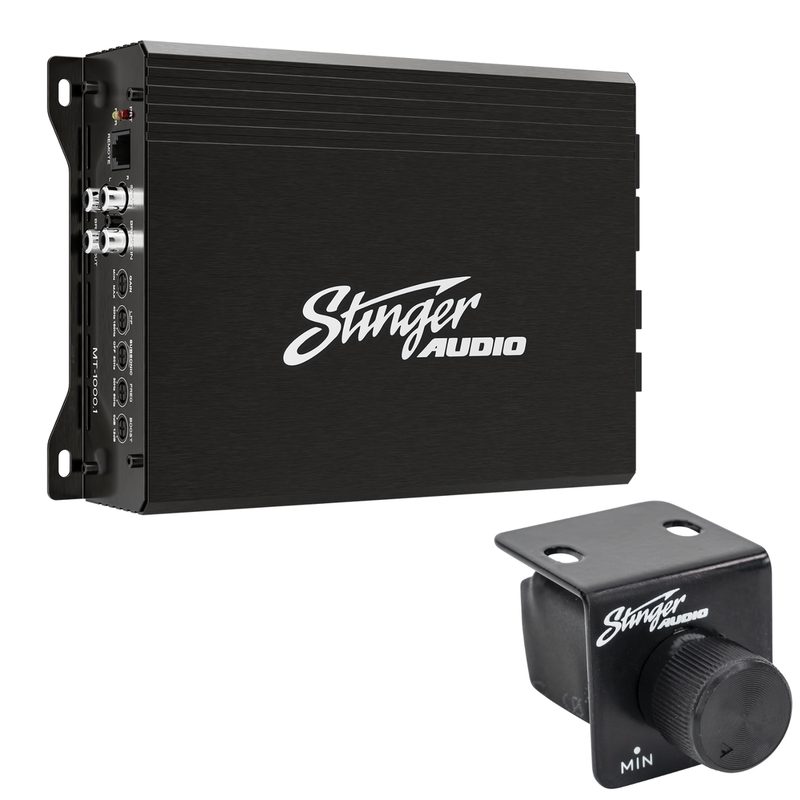

Stinger Audio MT-1000.1 1,000 Watt (RMS) Class D Monoblock Car Audio Amplifier
Features
-
Digital Class-D Mono Block Amplifier: Our Class-D mono amplifier packs a powerful punch with high efficiency and an incredibly small form factor. Perfect for powering your car audio subwoofer system without sacrificing sound quality or performance.
-
Small Footprint and Sturdy Design: Experience total tonal control with our precision metal potentiometer, built to the highest standards for lasting reliability. Fine-tune your sound like never before.
-
Robust Unregulated Power Supplies: Our power supply circuitry utilizes advanced pulse width modulator integrated circuits designed to provide superior performance and unmatched efficiency. Remote Bass Controller Included: Superior audio control from the comfort of your driver's seat. Our flush-mount knob makes installation easy, allowing you to effortlessly adjust bass levels with just one twist.
-
Designed with Advanced HEXFET® Power MOSFET: Harness the power of innovative engineering and cutting-edge technology with our advanced HEXFET® Power MOSFET. Boasting reduced on-resistance, faster switching speeds, and unparalleled reliability.
-
500V High Current Impulse voltage capacitor: Special Class X2 aluminum zinc high-frequency capacitor with low loss AC peak surge over-current ability to protect the MOSFET.
- Direct Insert Power and Speaker Terminals: Decreased resistance for higher power transfer and efficiency.
Description
Stinger Audio introduces the MT1000.1 Class D Monoblock amplifier! With a sleek and compact design, this amplifier can easily fit into any car audio setup. It features a Class D circuitry that delivers efficient power to your speakers, producing a clean and clear sound that is free from distortion. The MT-1000.1 can deliver up to 1,000-Watts of peak power, making it perfect for powering even the most demanding speakers. Its advanced design utilizes MOSFET technology, top of the line capacitors & transformers in addition to cutting-edge inductors – combined to deliver that extra thump you desire on the go.
RMS: 400W x 1 @ 4 ohms | 700W x 1 @ 2 ohms | 1,000 x 1 @ 1 ohm
Number of Channels: |
1 |
1Ω: |
1000 Watts x 1 Channel |
2Ω: |
700 Watts x 1 Channel |
4Ω |
400 Watts x 1 Channel |
Bridged RMS Rating / 2Ω Minimum |
1800W x 1 |
Signal to Noise (@ CEA Standard) |
-93db |
Input Sensitivity 0.2-6v |
0.2-6v |
Gain |
0.2v - 6v |
Crossover Control, Linkwitz-Riley |
SUB 0Hz - 50Hz (Subsonic) LP 40Hz - 180Hz @ 12dB/Oct |
Bass-Boost Frequency Range |
30-80 Hz |
Bass-Boost Q |
0-12dB |
Frequency Response (+- 1dB) |
10Hz - 180Hz |
Efficiency (Average) |
82% |
Topology Class: |
Class D |
Remote Bass Control |
Included |
Operating Voltage |
9V to 16V |
Power Terminals: |
4 Gauge |
Speaker Terminal: |
8 Gauge |
Recommended External Fusing |
100A |
