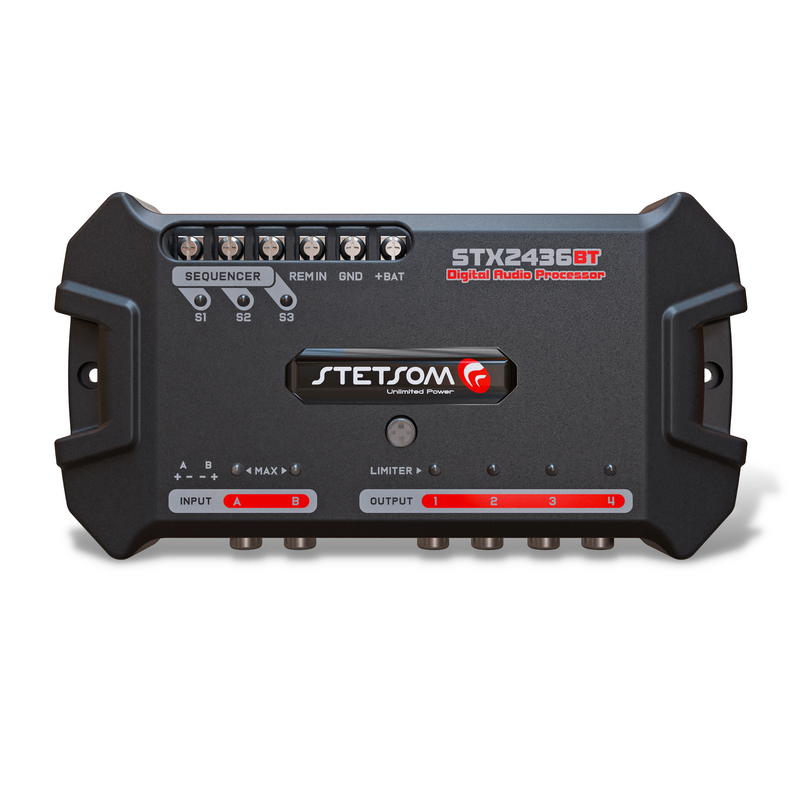

Stetsom STX 2436 Bluetooth DSP Crossover & Equalizer 4 Output Channel Full Digital Signal Processor

In stock
SKU: STE-STX2436
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
$109.99 USD

Share this product on Social Media!

The STX2436BT is a digital audio processor that offers a variety of high-precision adjustments and settings to enhance the performance of your audio system. Through Bluetooth communication, the processor’s information can be viewed and configured remotely using smartphones with Android or iOS systems. Its digital signal processor (DSP) allows real-time modification of equalizations, crossover filters, alignment, gain control, phase inversion, limiter, digital input/output routing, and other treatments.

Features:

  • SEQUENCER 2. REM IN
  • NEGATIVE POWER CONNECTOR (GND)
  • POSITIVE CONNECTOR (+BAT)
  • SMC INPUT
  • AUDIO INPUT WITH WIRE CONNECTION (HIGH INPUT)
  • AUDIO INPUT WITH RCA CONNECTION (INPUT)
  • MAX LEDs (INPUT CHANNELS)
  • COMMAND BUTTON
  • AUDIO OUTPUTS CHANNELS (OUTPUT)
  • LIMITER LEDs (OUTPUT CHANNELS)

Specifications:

Number of Channels Input: 2 x RCA (A+B) or 2 x HIGH INPUT (A+B) Output: 4 (1, 2, 3, 4)
Graphic Equalizer 15 Bands (gain ±12dB)
Graphic Equalizer Presets 12
Parametric Equalizer 5 Bands (1 Input + 4 Output) (gain ±12dB, Factor Q 0.4 a 10.0)
Crossover with Variable Freq. Butterworth: 12/18/24/36 dB/8ª Linkwitz-Riley: 12/18/24/36 dB/8ª
Crossover Presets 11
Routing between input/output A, B ou A+B
Alignment 0ms ~ 8ms (275cm)
Phase Inversion 0° ~ 180°
Limiter Threshold: -24dB ~ 0dB Attack: 0.1ms ~ 100.0ms e Release: 1ms ~ 1600ms (manual or auto.)
Master Level 0 ~ 100%
Output Gain -45dB ~ +15dB per output
Frequency Generator 10Hz ~ 22kHz and Level -60 ~ 0dB
Frequency Scan Starting and ending frequency: 10Hz ~ 22kHz Level: -60dB ~ 0dB
Pink Noise Generator Gain: -60dB ~ 0dB
Battery Voltage Monitor Current, minimum and maximum voltage
Password 6-digit password
Input Impedance RCA: 28 kΩ / FIO: 1 kΩ
Output Impedance 47 Ω
Signal to Noise Ratio > 90dB
Total Harmonic Distortion < 0,01% T.H.D.
Channel Separation > 80dB
Frequency Response 10Hz ~ 22kHz @ 0dB
Max. Input Voltage RCA: 5,6 Vpp (+8,2 dBu) HIGH INPUT: 15 Vpp (+18 dBu)
Max. Output Voltage 5,6 Vpp (+8,2 dBu)
Power Supply 10V ~ 15V DC
Max. Output current SEQUENCER 180 mA per output
Rated Current Consumption 170mA @ 12.6V DC
Maximum Current Consumption 710mA @ 12.6V DC
Protection Short Circuit (PTC fuse)
Bluetooth Version Low Energy (LE)
Range 15 meters*
Compatibility Android 5.0 or higher iOS 12 or higher
Dimensions (H x W x L) 1.3” x 3,8” x 7,4”
Weight 0.40 Lb
Compatible SMC Remote Control Sold Separately
