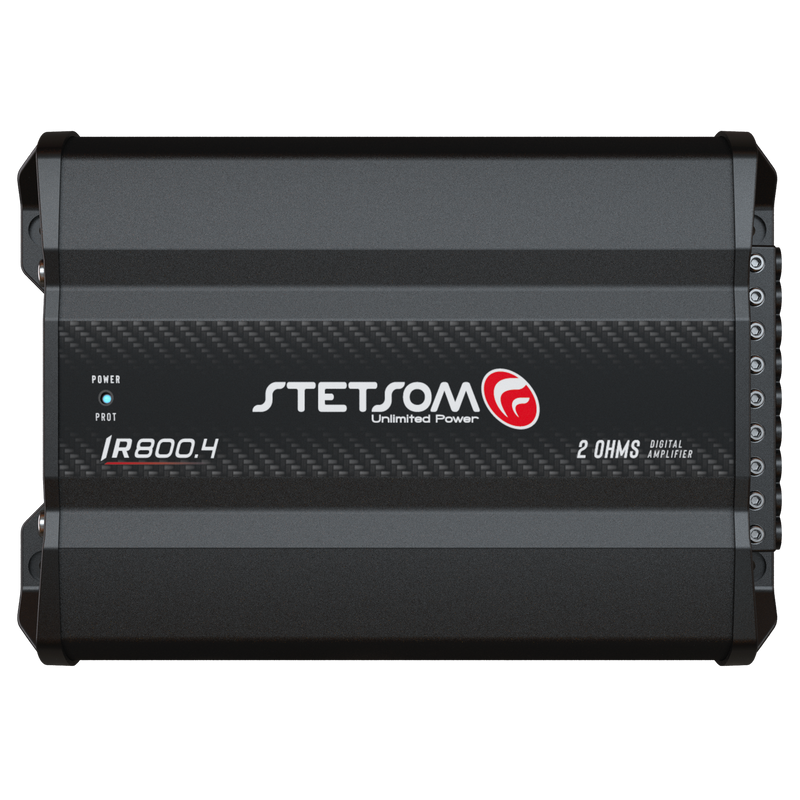

Stetsom IR 800.4 Compact Digital Multi Channel Amplifier 4 Channels 800 W Full Range
The Stetsom HL 800.4 is a 4-channel amplifier with a total power output of 800 watts. Its Class D full range technology delivers high efficiency and low distortion levels. With its slim design, this amplifier can be installed even in tight spaces. Its robust aluminum casing ensures protection and durability.
Features:
- 800w RMS ( 12.6v ) | 1060w peak RMS ( 14.4v ) at 2 Ohms
- RCA & High inputs; 4 channel monoblock amplifier, Mosfet Class D, Full Range stable at 2 Ohms
- Audio Controls:Crossover ( HPF & LPF fixed at 90Hz ) | Flat mode where every ajustments on the amp stay disabled, allowing reproduction of all frequencies supported by the amp.
- Compact and powerfull cooler for better ventilation and safety long use for hours
- Power connectors ( power / ground ) 6awg, Remote connector 18awg, Speakers 13awg, Fuse 40A ( max 12" far from the battery )
Specifications:
| Number of Channels | 4 |
| RMS Power | 800W |
| RMS Power at 2 Ohm 12.6V | 4 x 200W (STEREO) |
| RMS Power at 4 Ohm 12.6V | 4 x 135W (STEREO) |
| RMS Power at 2 Ohm 14.4V | 4 x 265W |
| RMS Power at 4 Ohm 14.4V | 4 x 175W (STEREO) |
| Power @ 12.6V Bridge 4 Ohms | 2 x 400W (BRIDGE) |
| Power @ 13.8V Bridge 4 Ohms | 2 x 530W (BRIDGE) |
| Supply Voltage | 9V ~15,5V |
| Frequency Response | 5Hz ~ 22 KHz |
| Crossover Low Pass | 90 Hz |
| Crossover High Pass | 90 Hz |
| Signal to Noise | >80 dB |
| Input Sensitivity | RCA: 0,2V / FIO: 1,5V |
| Input Impedance | RCA: 30K Ohms / FIO: 1K Ohms |
| Impedance Output | STEREO: 2 OHMS / BRIDGE: 4 OHMS |
| Consumption with Signal Musical | 44A |
| Consumption with Signal Bass | 88A |
| Dimensions (H x W x D) mm | 55 x 162 x 235,5 mm |
| Weight Kg | 1,5 Kg |
| UPC | 7897748704856 |
