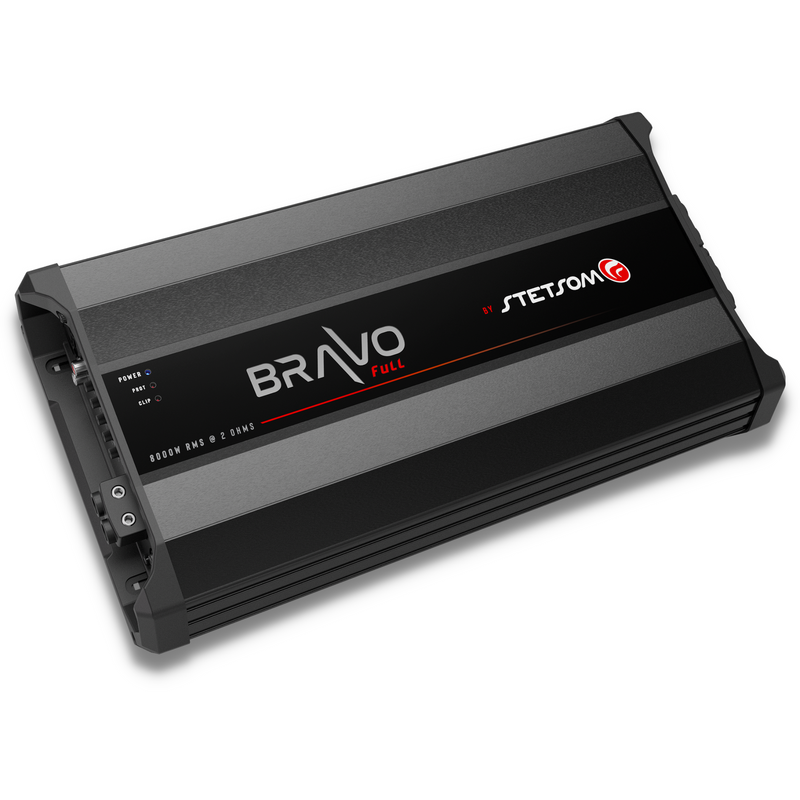

Stetsom BRAVOFULL8K2 BRAVO FULL 8K Digital Full-Range Amplifier Mono 1 Channel Class D 8000 Watts RMS
Stetsom BRAVO FULL 8K 2-Ohm Digital Full-Range Car Audio Amplifier 8000 Watts
The BRAVO FULL line was developed for automotive sound lovers who seek maximum performance in FULL-RANGE amplifiers.
Its frequency response from 10Hz to 12kHz offers audio quality and definition, and can be used with subwoofers, woofers, drivers, and tweeters.
TECHNICAL SPECIFICATIONS
CHARACTERISTICS
BRAVO FULL 8000 – 2 OHMS
Number of Channels
1
RMS Power
8000W RMS
RMS Power at 2 Ohm 12.6V
8000W RMS
RMS Power at 4 Ohm 12.6V
4200W RMS
RMS Power at 2 Ohm 14.4V
8700W RMS
RMS Power at 4 Ohm 14.4V
4400W RMS
Supply Voltage
9V ~ 16V DC
Frequency Response
10Hz ~ 12KHz
Crossover Low Pass
90Hz ~ 12KHz
Crossover High Pass
10Hz ~ 90Hz
Signal to Noise
>90dB
Input Sensitivity
200mV
Input Impedance
13K Ohms
Impedance Output
2 Ohms
Consumption with Signal Musical
360A
Consumption with Signal Bass
720A
Dimensions (H x W x D) mm
80 x 231,5 x 419 mm
Weight Kg
6,0 Kg
UPC: 7897748705334
