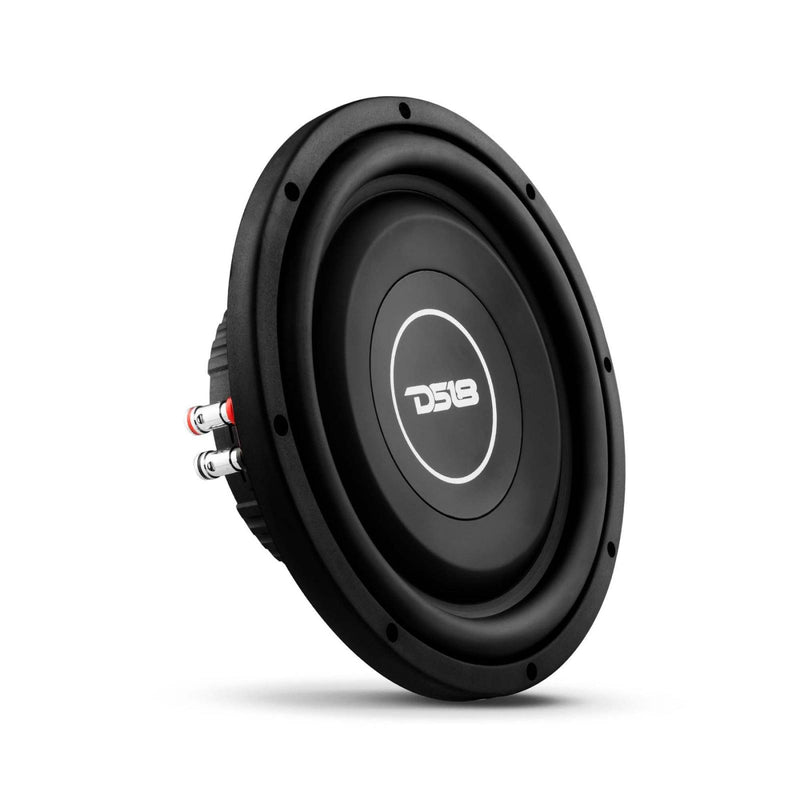

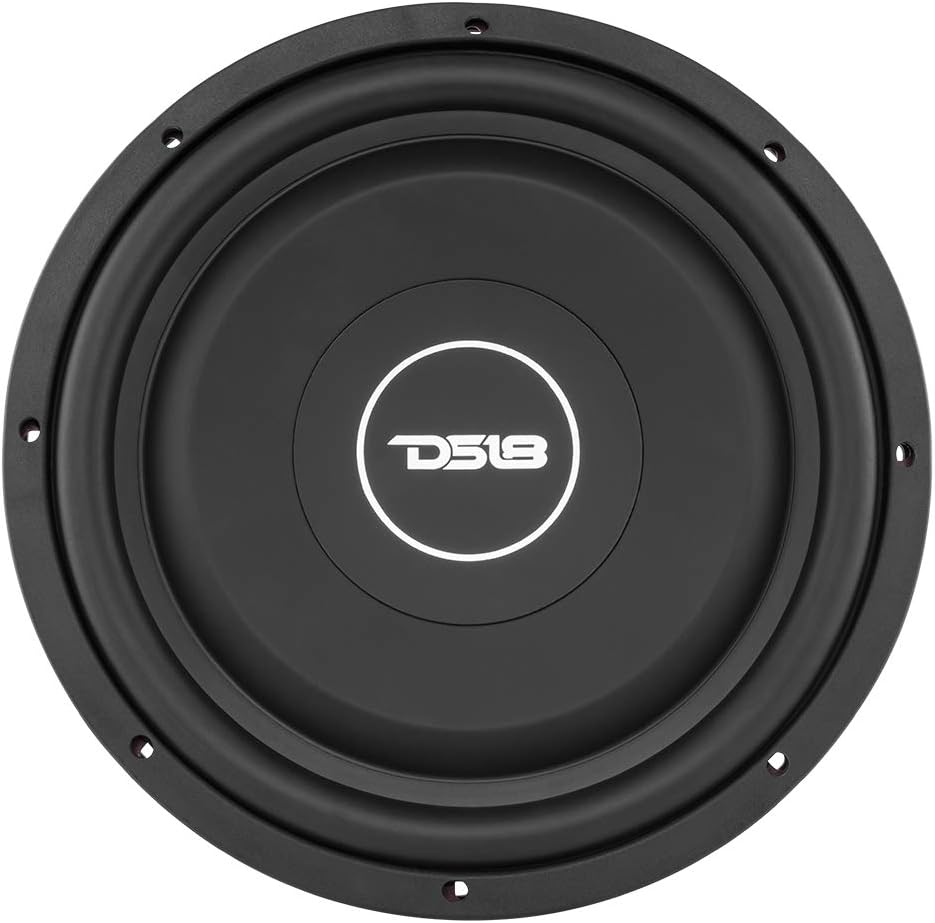

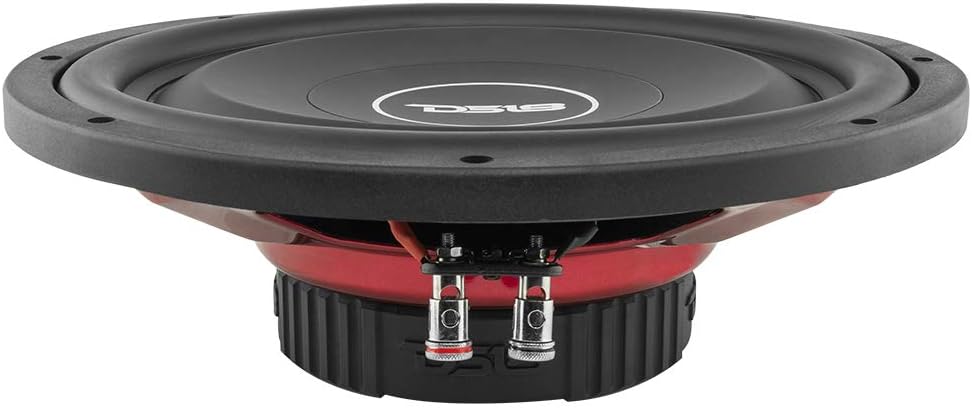

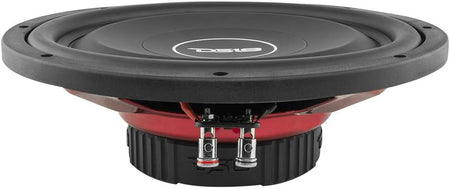

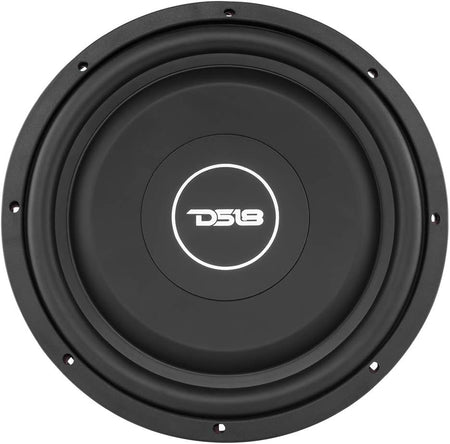

DS18 DS-SRW12.4 SRW Shallow 12 Inch Subwoofer 900 Watts Svc 4-Ohm DS18
We have further developed our shallow mount sub to include a much requested 12-inch option. This sub has all the FEATURES that our shallow mount 10 but with more cone area in 12-inch.
These shallow subs take 220w RMS and 440w peak so you can get that extra thump you need with the added cone area of the 12. The sensitivity is high for a sub coming in at 88db so it will not take full power to reach maximum potential which gives you an array of amplifier options.
They will come in DVC and SVC so you can wire to your amps recommended impedance with ease. These subs are perfect for the enthusiast that is wanting to keep storage space by using shallow mounted subs so the box depth can be much shallower than normal for much more bass!
DETAILS:
- Model: SRW12.4D
- Type: Shallow Subwoofer
- Size: 12 inch
- RMS Power: 220W
- MAX Power: 440W
- Impedance: 4+4 OHMS
- Voice coil size: 2 inch
- Magnet: Ferrite
- Magnet Size: 45oz
- Frequency Response: 40-3.5KHz
MATERIALS:
- Frame: Aluminum
- Cone: PPI n
- Surround: Rubber Edge
- Voice Coil Former Material: BASV4
DIAMETERS:
- Mounting Cut-Out: 10.9 inch (279mm)
- Mounting Depth: 3.5 inch (88mm)
- Overall Diameter: 12.4 inch (316mm)
- Enclosure SPECIFICATIONS:s
- Optimum Sealed FT3 0.75FT3
- Optimum Ported FT3 1.5 FT3
SPECIFICATIONS:
| SERIES | SRW Series |
| SOLD AS | Piece |
| WARRANTY | 1 Year Warranty |
| UNIVERSAL | Yes |
| AAIAID | FXVX |
| YOUTUBE VIDEO | https://youtu.be/DoSwCJgBNdY |
| VEHICLE TYPE | Car|Jeep|Marine|Truck/SUV |
| BRAND | DS18 |
| UPC | 810005182119 |
| DIAMETER | 12.0 Inch |
| WATT | 900 Watts |
| OHM | 4 ohm |
| DIM LENGTH | 12.875 |
| DIM WIDTH | 12.875 |
| DIM HEIGHT | 4.75 |
| DIM UNIT | in |
| WEIGHT | 8.5 |
| WEIGHT UNIT | lb |
