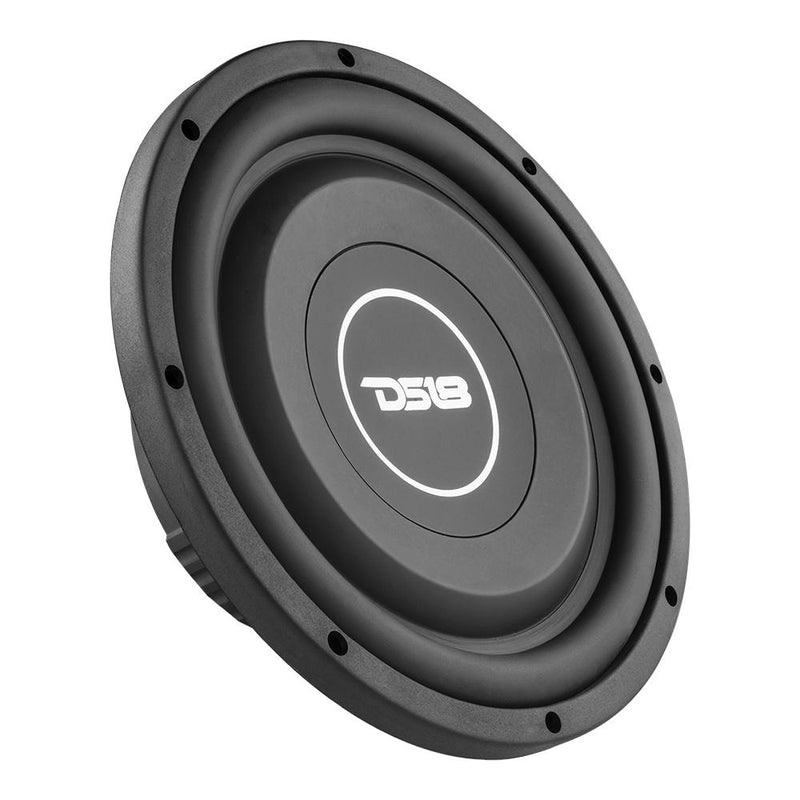

DS18 DS-SRW10.4 SRW Shallow 10 Inch Subwoofer 700 Watts Svc 4-Ohm DS18

In stock
SKU: DS-SRW10.4
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $99.95 USD

It's easy to get great bass when there's very little room with our new line of slim mount subwoofers. The SRW 10.4D (DVC) and SRW 10.4 (SVC) mounts in little as 3.15 inches mounting depth and can be utilized in both ported and sealed boxes for great bass in a tight area.

This sub handles 200 watts RMS and 400 watts peak power with a 90 db sensitivity which is very high for a slim mount sub raising this model high above the bar.

This sub comes in both dual voice coil 4 ohm (SRW 10.4D) and single voice coil 4 ohm (SRW 10.4) so you can wire appropriately to your amp for maximum power to bring all your music to life!

KEY FEATURES:
  • Rubber surround and plastic cone for long lasting life and durability.
  • High strength aluminum 2 inch voice coil to maximize cooling efficiency and great power handling.
  • Mounts in a very shallow depth of 3.15 inches so you can fit this sub almost anywhere.
  • Works great in ported and sealed boxes for tight thumping bass
DETAILS:
  • Nominal Diameter 10 inch
  • Nominal Impedance 4 ohms
  • RMS Power Handling 200 Watts
  • Maximum Power Handling 400 Watts
  • Sensitivity (1w/1m) 89dB
  • Frequency Response 424.2Khz
  • Recommended Lo Pass Crossover 80Hz
  • Voice Coil Diameter 50.8mm / 2 inch
  • Voice Coil Former Material Aluminum
  • Winding Material SV
  • Basket Material Steel Basket
  • Frame Material Steel Basket
  • Magnet Weight Ferrite 45 oz
MEASUREMENTS:
  • Overall Diameter 260mm / 8.42 inch
  • Front Mount Baffle Cutout 232mm / 7.12 inch
  • Over Depth 93mm / 3.34 inch
  • Mounting Depth 80mm / 2.83 inch
SPECIFICATIONS:
SERIES SRW Series
SOLD AS Piece
WARRANTY 1 Year Warranty
UNIVERSAL Yes
AAIAID FXVX
YOUTUBE VIDEO https://youtu.be/DoSwCJgBNdY
VEHICLE TYPE Marine|Jeep|Car|Truck/SUV
BRAND DS18
UPC 810000000000.0
DIAMETER 10.0 Inch
WATT 700 Watts
OHM 4 ohm
DIM LENGTH 10.75
DIM WIDTH 10.75
DIM HEIGHT 4.25
DIM UNIT in
WEIGHT 8.5
WEIGHT UNIT lb
  • Installation Guide
