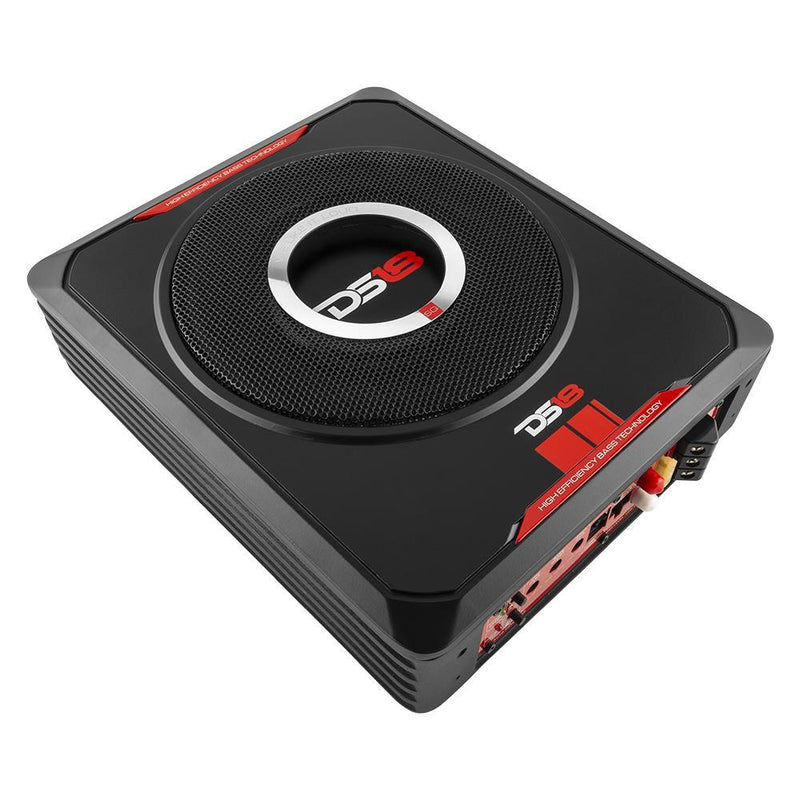

DS18 DS-SQBASS8 8 Inch UnderSeat Amplified Subwoofer 150 Watts DS18
The SQBASS is an 8-Inch Subwoofer with a slim, compact design providing 600 Watts MAX and a frequency response of 20Hz - 150Hz. Low Impedance 2-Ohm subwoofer to bring out the maximum performance of the built-in amplifier.
With it's compact size you can fit the SQBASS under your vehicle's seat without diminishing sound quality.

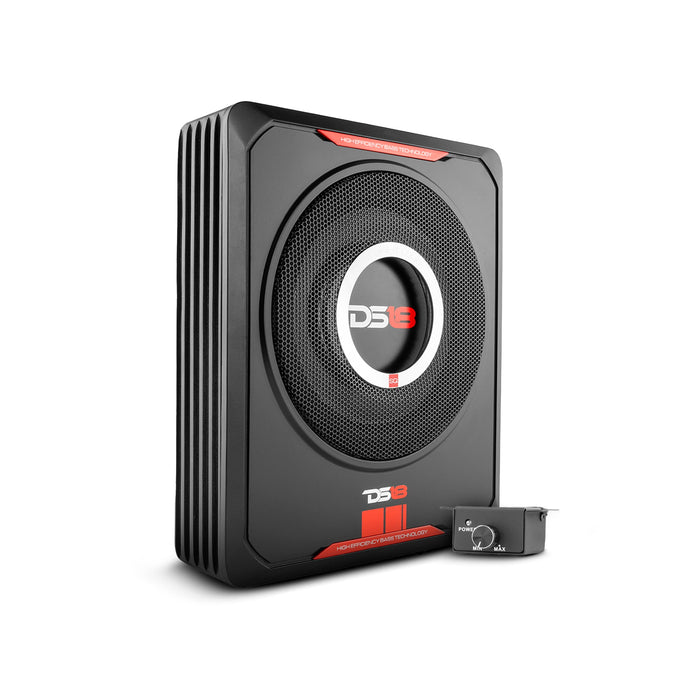

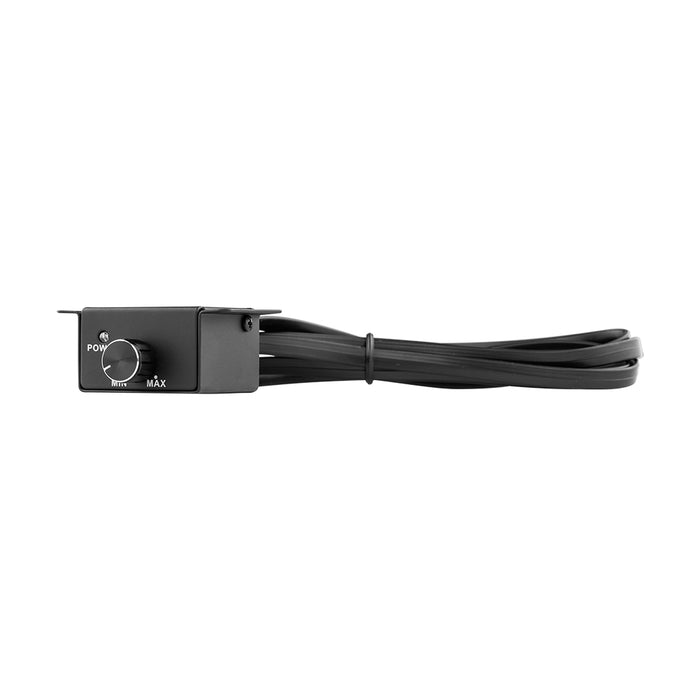

With your remote bass control take control of your music experience by precisely adjusting the levels of the bass you desire.
Digitally optimized subwoofer with built-in amplifier (2-Ohm) for efficient and accurate bass.
DETAILS:
- RMS Power: 14.4V DC
- Impedance: 2 ohm 1 x 50W
- THD: <0.5 percent
- Signal-to-Noise ratio: >80dB
- Frequency response: 20Hz-150Hz
- Input Sensitivity: High Level 300mV-10V/ Low Level 100mV-3.5V
- Low Pass Filter: 50-150Hz
- Bass Boost: 0 to 12dB
- Subsonic Filter: 20Hz
- Fuse rating: 25A
- Size (LxWxH): 290x245x77 mm
SPECIFICATIONS:
| SOLD AS | Piece |
| WARRANTY | 1 Year Warranty |
| UNIVERSAL | Yes |
| AAIAID | FXVX |
| YOUTUBE VIDEO | https://youtu.be/DoSwCJgBNdY |
| VEHICLE TYPE | Marine|Jeep|Car|Truck/SUV |
| BRAND | DS18 |
| UPC | 810005182454 |
| DIAMETER | 8.0 Inch |
| WATT | 150 Watts |
| DIM LENGTH | 16.75 |
| DIM WIDTH | 12.875 |
| DIM HEIGHT | 5.75 |
| DIM UNIT | in |
| WEIGHT | 13.0 |
| WEIGHT UNIT | lb |
