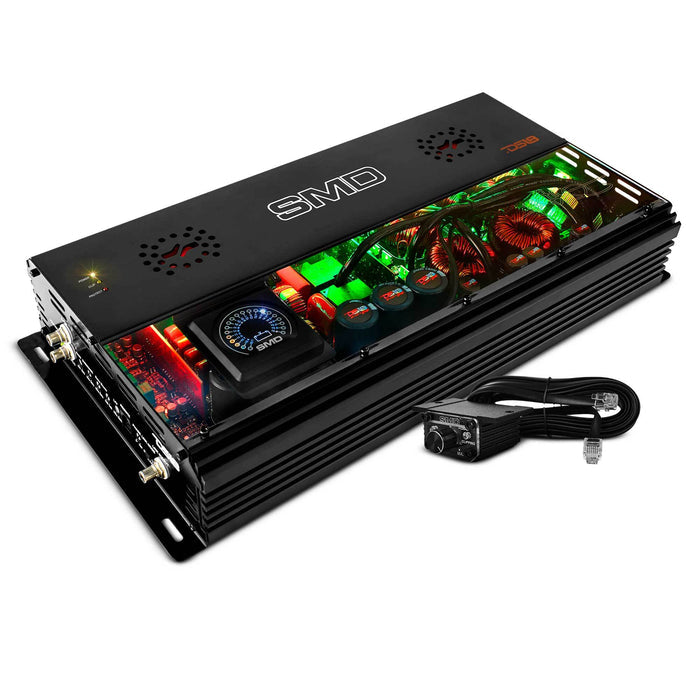

SMD Monoblock Amplifier with VM-1 Voltmeter and Digital LED Lights 5000W RMS at 1-ohm - Steve Meade Designs (Pre-Order Ship Date 11/10/24)

In stock
SKU: DS-SMD-5000.1D
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $1,149.95 USD

Monoblock Amplifier with VM-1 Voltmeter and Digital LED Lights

Introducing the SMD-5000.1D— engineered by DS18 in collaboration with Steve Meade Designs. Built for superior audio performance, it features premium Korean components and Sky High Car Audio’s OFC Internal Wiring. With DS18’s reputation as the LOUDEST in pro audio and Steve Meade’s industry-standard installation peripherals, this amp is built for extreme power and convenience.

With the SMD-5000.1D, we achieved that and more. What sets the SMD-5000.1D apart is its unique clear half-top design ensuring efficient heat dissipation through a reverse-mounted board and dual cooling fans. It also features an exclusive built-in SMD VM-1 digital/analog-style LED voltmeter that monitors power draw in real-time. Customizable RGB lighting adds another layer of personalization, allowing you to match your vehicle’s interior or create dynamic light displays.

Manufactured using premium components from Korea, this amplifier guarantees the reliability and powerful bass amplification that DS18 is known for. The SMD-5000.1D is not only visually striking but also engineered for top-tier performance. It delivers an impressive 2000W RMS at 4-ohm, 3500W RMS at 2-ohm, and 5000W RMS at 1-ohm, driving even the most demanding subwoofer setups with ease.

The SMD-5000.1D is designed for audiophiles seeking superior bass output and power efficiency. As a Class D amplifier, it prioritizes efficiency and low heat production, delivering pristine audio performance with minimal distortion. Equipped with a precision attenuation knob for easy bass control, it maintains a <0.02% THD, ensuring exceptional Total Harmonic Distortion levels. With 0 AWG power and ground inputs and a 520A fusing requirement, it’s built for robust power delivery. Additional features include a Fixed LPF (Low-Pass Filter) and Tiffany RCA connectors for the highest quality signal transfer in your setup.

Crafted with precision using only the best components, DS18’s SMD-5000.1D is a monoblock amplifier capable of powering high-output subwoofers with deep, controlled bass. Its advanced protection suite includes thermal overload, DC output, short circuit, and voltage input protection, ensuring safe operation in any setup.

Features:

  • 1 Channel Subwoofer Monoblock
  • Exclusive SMD Design ~ Class D
  • 1 - 4 Ohm Stable ~ 5000 Watts @ 1 Ohm RMS
  • VM-1 Voltmeter ~ Fans ~ Linkable
  • Acrylic Window ~ Digital LED Lighting w/ Remote
  • Bass Knob ~ LED Indicators ~ Made in Korea

Specifications:

Amplifier Class: Digital
Amplifier Type: Subwoofer
Number of Channels: 1
Minimum Impedance: 1 ohm
Led Indicator: Power / Protection / Clip
Power Input Terminal Size: 0 AWG
Recommended Fuse Size (Not Included): 520A
Cooling Fan: Yes
Thermal Protection: Yes
Over-Load Protection: Yes
DC Output Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes
Clipping Protection: Yes
Body Color / Finish: Black
Metal Adjustment Knobs with Click Position: Yes
Professional Tiffany RCA Connectors: Yes
Remote Level Knob with Clip indicator: Yes (Metal Case)
Linkable (Strap mode) Amplifier: Yes
Reliable Heavy Duty Korean Board Design: Yes
Very High Efficiency Digital Circuit Design: Yes
Exclusive SMD design with VM-1 Voltmeter: Yes
Front Acrylic Window and Digital RGB Lighting: Yes
IR Remote Control for LED patterns and colors: Yes

Audio:

Frequency Response: 15Hz-250Hz
Signal to Noise Ratio: >98dB
Efficiency @ 4ohm: >86%
Damping Factor: 300
Input Impedance: 22K ohm
Total Harmonic Distortion (THD): <0.02%
Low Level Input Range: 200mV-6V
High Level Input: NO
Selectable X-Over: Fixed LPF
X-Over Filter Range: 35Hz-250Hz
Bass Boost Range: 0~9dB
Bass Boost Frequency: 30Hz-60Hz
Infrasonic Filter: 10Hz-30Hz
Phase Selector: 0~180

RMS Power @ 4 ohm (14.4v)
2000W
RMS Power @ 2 ohm (14.4v)
3500W
RMS Power @ 1 ohm (14.4v)
5000W

Measurements:

Overall Length: 18.1" / 462mm
Overall Width: 9.15" / 232mm
Overall Height: 3" / 76mm
Heatsink Length: 16.5" / 420mm
Gross Single Unit Weight: 15Lb / 6.8kg
