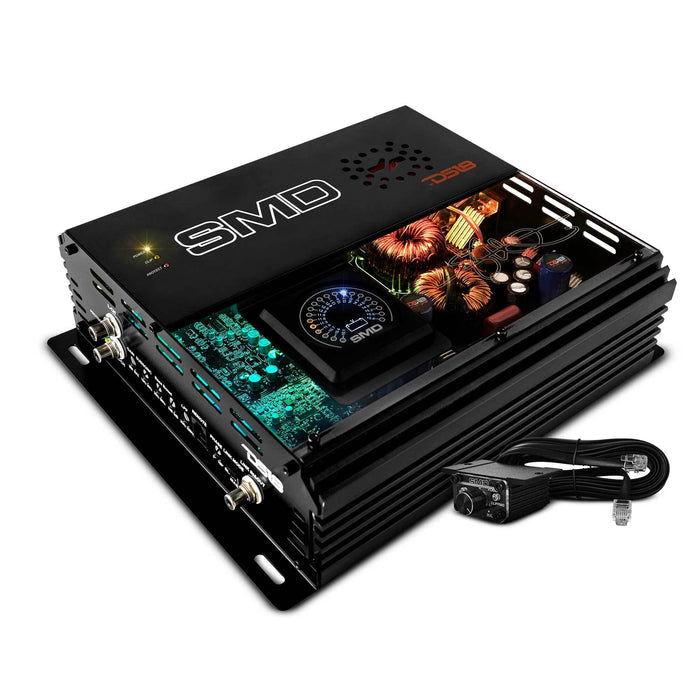

SMD Monoblock Amplifier with VM-1 Voltmeter and Digital LED Lights 2000W RMS at 1-ohm - Steve Meade Designs
Massive Power & Clarity
Superior Performance
Advanced Technology
Premium Quality
YOU MIGHT ALSO NEED
Monoblock Amplifier with VM-1 Voltmeter and Digital LED Lights
Introducing the SMD-2000.1D— engineered by DS18 in collaboration with Steve Meade Designs. Built for superior audio performance, it features premium Korean components and Sky High Car Audio’s OFC Internal Wiring. With DS18’s reputation as the LOUDEST in pro audio and Steve Meade’s industry-standard installation peripherals, this amp is built for extreme power and convenience.
With the SMD-2000.1D, we achieved that and more. What sets the SMD-2000.1D apart is its unique clear half-top design ensuring efficient heat dissipation through a reverse-mounted board and dual cooling fans. It also features an exclusive built-in SMD VM-1 digital/analog-style LED voltmeter that monitors power draw in real-time. Customizable RGB lighting adds another layer of personalization, allowing you to match your vehicle’s interior or create dynamic light displays.
Manufactured using premium components from Korea, this amplifier guarantees the reliability and powerful bass amplification that DS18 is known for. The SMD-2000.1D is not only visually striking but also engineered for top-tier performance. It delivers an impressive 800W RMS at 4-ohm, 1400W RMS at 2-ohm, and 2000W RMS at 1-ohm, driving even the most demanding subwoofer setups with ease.
The SMD-2000.1D is designed for audiophiles seeking superior bass output and power efficiency. As a Class D amplifier, it prioritizes efficiency and low heat production, delivering pristine audio performance with minimal distortion. Equipped with a precision attenuation knob for easy bass control, it maintains a <0.02% THD, ensuring exceptional Total Harmonic Distortion levels. With 0 AWG power and ground inputs and a 200A fusing requirement, it’s built for robust power delivery. Additional features include a Fixed LPF (Low-Pass Filter) and Tiffany RCA connectors for the highest quality signal transfer in your setup.
Crafted with precision using only the best components, DS18’s SMD-2000.1D is a monoblock amplifier capable of powering high-output subwoofers with deep, controlled bass. Its advanced protection suite includes thermal overload, DC output, short circuit, and voltage input protection, ensuring safe operation in any setup.
Features:
- 1 Channel Subwoofer Monoblock
- Exclusive SMD Design ~ Class D
- 1 - 4 Ohm Stable ~ 2000 Watts @ 1 Ohm RMS
- VM-1 Voltmeter ~ Fans ~ Linkable
- Acrylic Window ~ Digital LED Lighting w/ Remote
- Bass Knob ~ LED Indicators ~ Made in Korea
Specifications:
| Specification | Value |
|---|---|
| Model | SMD-2000.1D |
| Type | Class D Monoblock Subwoofer Amplifier |
| Channels | 1 |
| RMS Power @ 4 Ω | 800 W |
| RMS Power @ 2 Ω | 1,400 W |
| RMS Power @ 1 Ω | 2,000 W |
| Frequency Response | 15 Hz–250 Hz |
| Signal‑to‑Noise Ratio | > 98 dB |
| THD | < 0.02 % |
| Minimum Impedance | 1 Ω |
| Input Voltage Range | 8.5–16.9 V |
| Protection Features | Thermal, DC Offset, Short Circuit, Voltage Input protection |
| Cooling | Reverse-mounted board + dual fans |
| Filters | Fixed LPF, subsonic (10‑50 Hz), adjustable bass boost (30‑60 Hz, 0‑9 dB) |
| Controls | Gain (200 mV–6 V), LPF frequency, bass boost, subsonic filter |
| Indicators | VM‑1 digital voltmeter, RGB LED lighting, clip/protect LEDs |
| Power/Ground Inputs | 0 AWG terminals, 200 A fuse recommended |
| Dimensions (L×W×H) | 11.1″ × 9.15″ × 3″ (282 × 232 × 76 mm) |
| Weight | 9 lb (4.08 kg) |
| UPC | 810097266490 |
