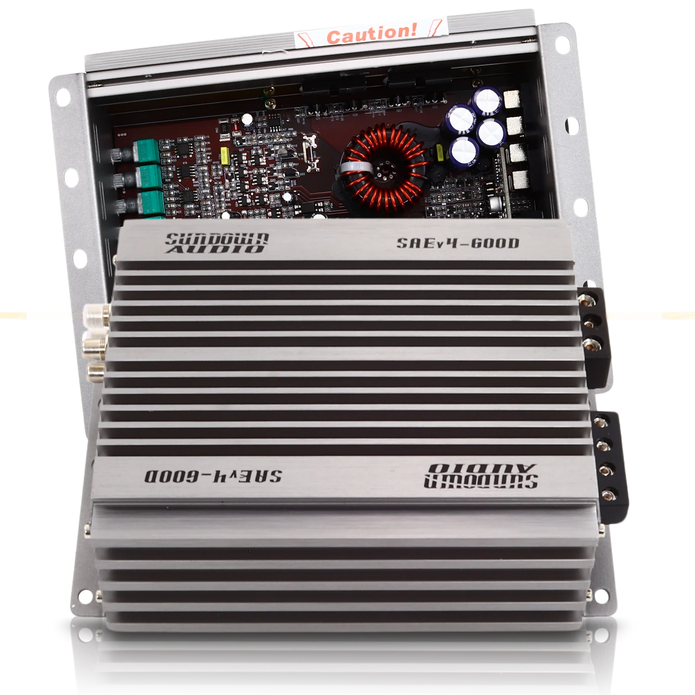

Sundown Audio SUN-SAEv.4-600D SAEv4-600.1D 600W Class D Amplifier
Back after popular demand, we introduce to you, the SAEv4 series of amplifiers from Sundown Audio. Many customers have stated they wanted us to bring back a budget friendly Korean style amplifier like the very popular SAEv1 and SAEv2 series of amplifiers. We listened and did just that. Sporting an all new chassis and heatsink, we’ve added 33% more aluminum, which takes a dramatic approach to help keep your amplifier cool during heavy loads.
The all new SAEv4 amps are Class A/B for the multi channels and Class D for the Mono Channels. We also decided to stick with the newest Half bridge technology available to keep the amplifiers as small as possible and still provide the cleanest, and strongest signal power you desire. Those of you who are wanting the price point of Full bridge amplifiers and the stability of half bridge amplifiers, the SAEv4 series is right up your alley.
Product Manual
Features
Digital Class-D Mono Block Amplifier
Dual MOS-FET PWM Power Supply
1 Ohm Stable Load
12 dB/Octave - Variable Low Pass Filter
12 dB/Octave - Variable Subsonic Filter
4 Way Protection Circuit (Thermal, Voltage Speaker short and DC Offset)
Wired Remote Control
Specifications
Input Sensitivity 6V Max
600 x 1 @ 1 ohms RMS
450 x 1 @ 2 ohms RMS
250 x 1 @ 4 ohms RMS
1 OHM Stable
Variable Low Pass Filter : 40HZ - 180HZ
-12dB/8 Variable Crossover Slope (LPF)
Signal / Noise Ratio : 92DB
Operation Voltage : DC 10.5V - 15.5V Power Input
Recommended Fuse : 60 Amps
Dimensions : 9.8” L x 6.3” W x 2.75” H
