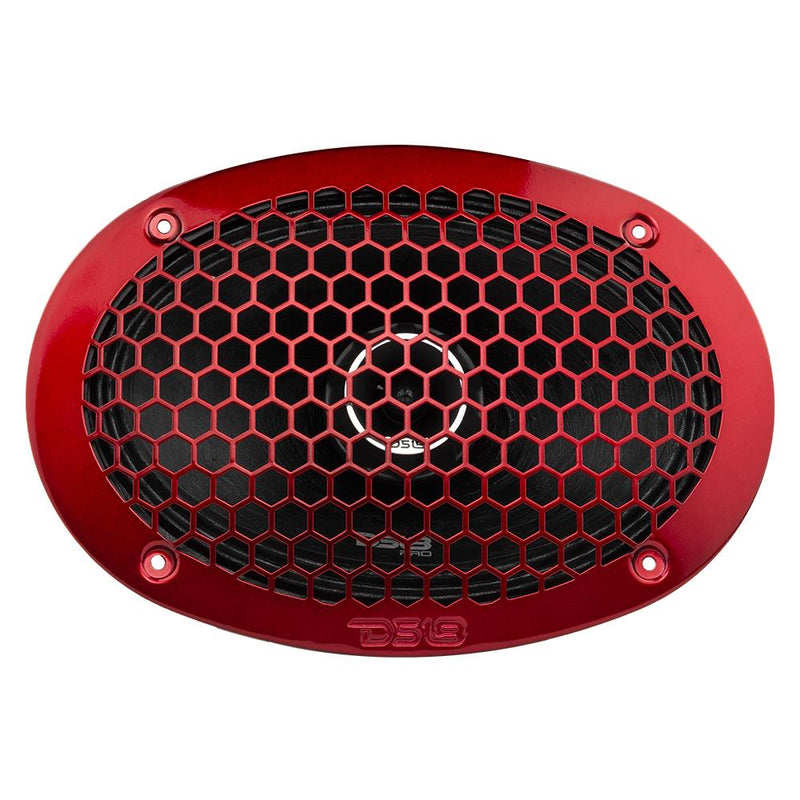

DS18 DS-PRO-ZT69 PRO-ZT 6x9 Inch Mid-Range Loudspeaker W/ Water resistance Cone Built-in Bullet Tweeter and Grill 550 Watts 4-Ohm DS18

In stock
SKU: DS-PRO-ZT69
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $94.95 USD

DS18 amassed a wealth of experience in manufacturing the most elegant neodymium midranges for those seeking simple perfection. Neodymium magnets provide a higher magnetic flux density in the air gap, which generates a much greater action force in the voice coil.

For this reason, Neo magnets have the strongest permanent magnets of all the commercially available speakers. Ranging in sizes, mounting depths, and frequency responses, we have more than 10 different models of Neo midranges to accommodate any build.

DETAILS:
  • Nominal Diameter: 6 x 9 inch
  • Nominal Impedance: 4 Ohms
  • RMS Power Handing: 275 Watts
  • MAX Power Handing: 550 Watts
  • Sensivity (1w/1m): 98dB
  • Frequency Response: 60Hz - 22KHz
  • Recommended Hi Pass Crossover: 80Hz
  • Midrange
  • Voice Coil Diameter: 1.5 inch (38.1mm)
  • Voice Coil Former Material: Kapton
  • Winding Material: CCAW
  • Basket Material: Steel
  • Magnet Weight: 27 oz
TWEETER:
  • Voice Coil Diameter: 1 inch
  • Voice Coil Material: Kapton
  • Winding Material: CCAW
  • Diaphragm Material: Aluminum Alloy
  • Magnet Weight: 0.44 oz
  • Magnet Material: Neodymium
  • Thiele and Small Parameters
  • Equivalent Volume / Vas: 14.6927 LTR
  • Excursion / Xmax: 1.6mm
  • Free Air Resonance / Fs: 85Hz
  • Mechanical Factor / Qms: 3.906
  • Electrical Factor / Qes: 0.639
  • Total Factor / Qts: 0.602
  • DC Resistance / Re: 3.2 ohms
MEASUREMENTS:
  • Overall Diameter: 260 x 180mm (10.24 x 7.09 inch)
  • Front Mount Baffle Cutout: 219 x 150 (8.62 x 5.91 inch)
  • Mounting Depth: 85 mm (3.35 inch)
  • Overall Depth: 97 mm (3.81 inch)
SPECIFICATIONS:
SERIES Pro Series
SOLD AS Piece
WARRANTY 1 Year Warranty
UNIVERSAL Yes
AAIAID FXVX
YOUTUBE VIDEO https://youtu.be/DoSwCJgBNdY
VEHICLE TYPE Marine|Jeep|Car|Truck/SUV
BRAND DS18
UPC 810000000000.0
DIAMETER 6x9 Inch
WATT 550 Watts
OHM 4 ohm
DIM LENGTH 11.0
DIM WIDTH 8.0
DIM HEIGHT 5.0
DIM UNIT in
WEIGHT 5.5
WEIGHT UNIT lb
