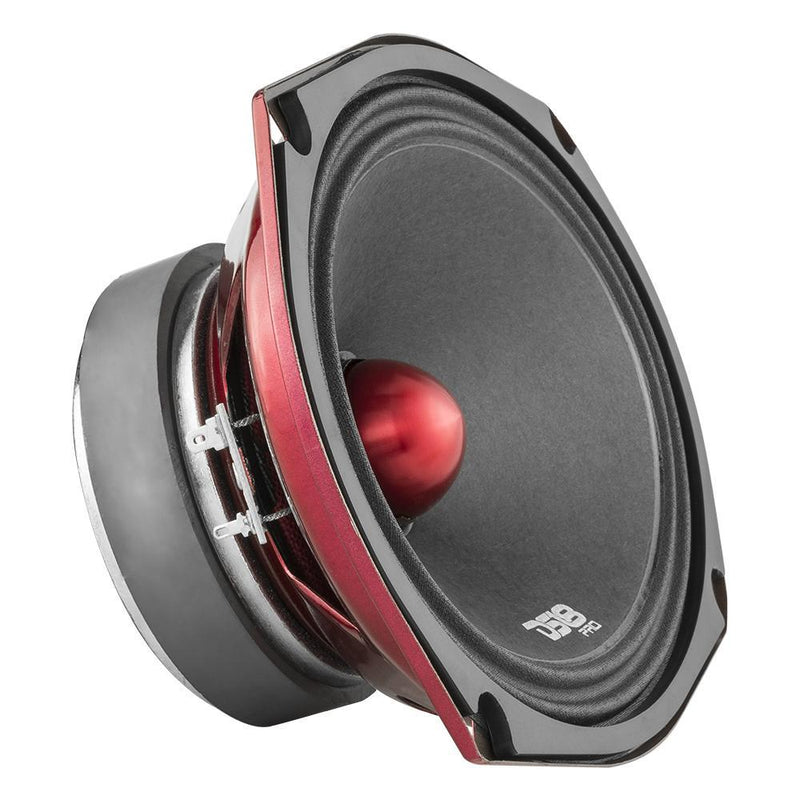

DS18 DS-PRO-X698BM PRO-X 6X9 Inch Mid-Range Loudspeaker W/ Bullet and Grill 700 Watts 8-Ohm DS18

Out of stock
SKU: DS-PRO-X698BM
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $69.95 USD

During the focused RnD period of perfecting the PRO-EXL line, DS18 identified the opportunity to spawn off another line since there was a division amongst competition audiophiles and concert/voceteo audiophiles.

Therefore, DS18 created the PRO audio line, which features a wide variety of midranges that produce concert-like sounds that will knock the wind out of you

DETAILS:
  • Model: PRO-X694
  • Type: Midrange Loudspeaker
  • Size: 6X9 inch
  • RMS Power: 275W
  • MAX Power: 550W
  • Frequency Response: 106-17KHz
  • Impedance: 8 ohm
  • Sensitivity: 98dB
MATERIALS:
  • Surround: Cloth Edge
  • Frame: Red Steel Basket
  • Cone: Non-Pressed Paper Cone
  • Magnet: Ferrite
  • Voice Coil Wire: CCAW
DIAMETERS:
  • Voice Coil Size: 1.5 inch
  • Magnet Size: 27 oz
  • Mounting Depth: 3.35 inch
  • Cut-Out Dimension: 8.62 x 5.91 inch
PARAMETERS:
  • Vas 14.69 LTR
  • Xmax 9.2 mm
  • Fs 100 Hz
  • Qms 7.223
  • Qes 1.118
  • Qts 0.968
  • Re 5.2ohms
SPECIFICATIONS:
SERIES Pro Series
SOLD AS Piece
WARRANTY 1 Year Warranty
UNIVERSAL Yes
AAIAID FXVX
YOUTUBE VIDEO https://youtu.be/DoSwCJgBNdY
VEHICLE TYPE Marine|Jeep|Car|Truck/SUV
BRAND DS18
UPC 810000000000.0
DIAMETER 6x9 Inch
WATT 700 Watts
OHM 8 ohm
STYLE Mid Range
DIM LENGTH 10.875
DIM WIDTH 8.175
DIM HEIGHT 5.0
DIM UNIT in
WEIGHT 5.5
WEIGHT UNIT lb
  • Installation Guide
