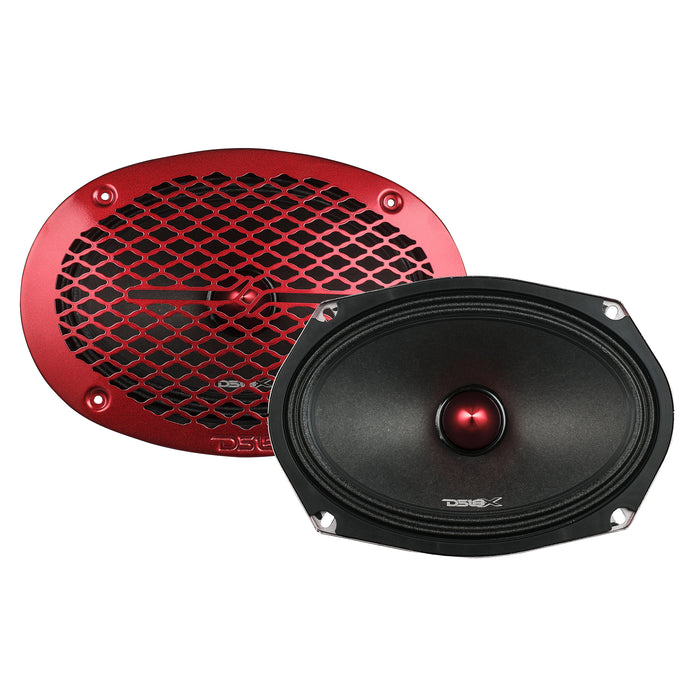

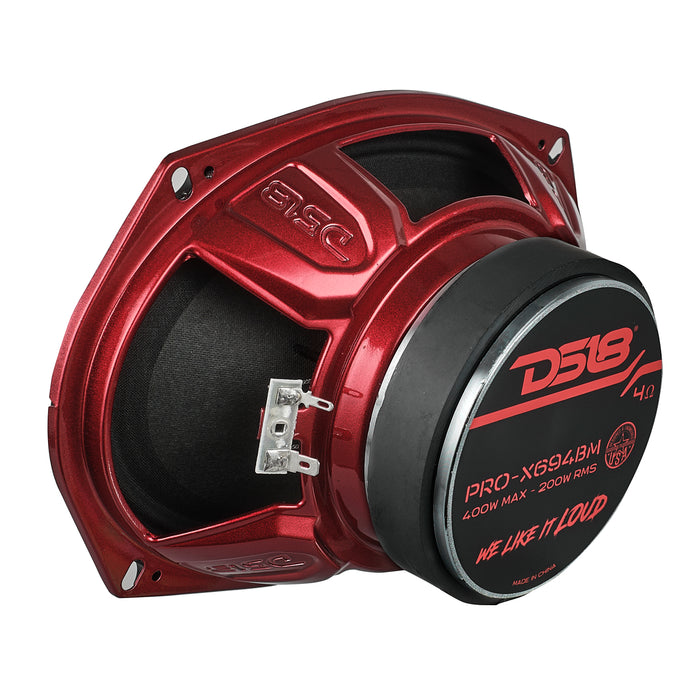

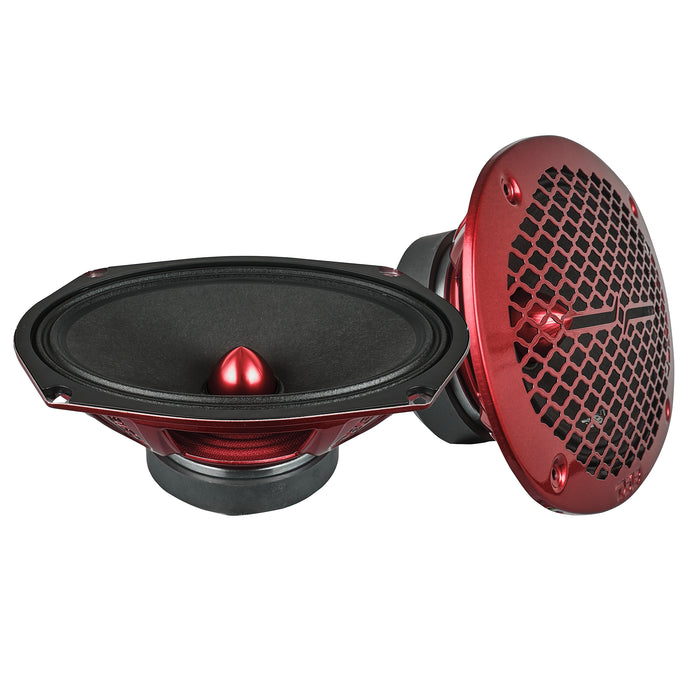

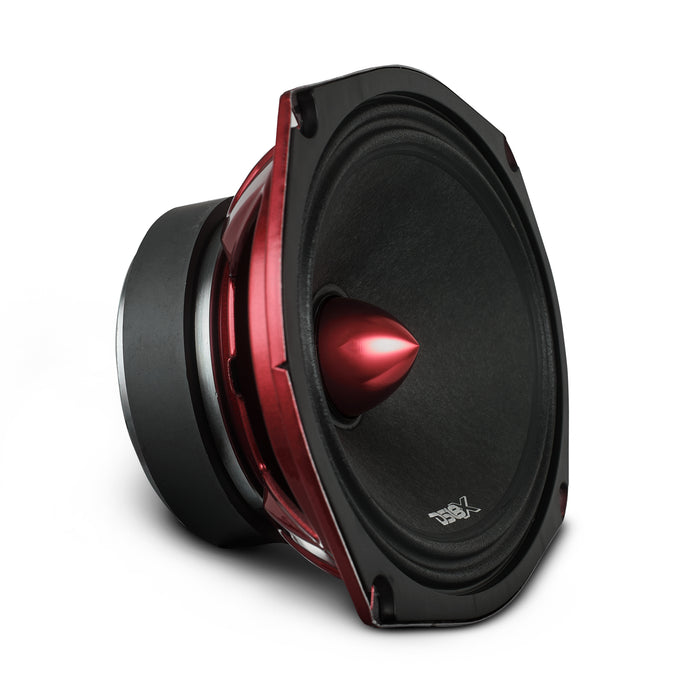

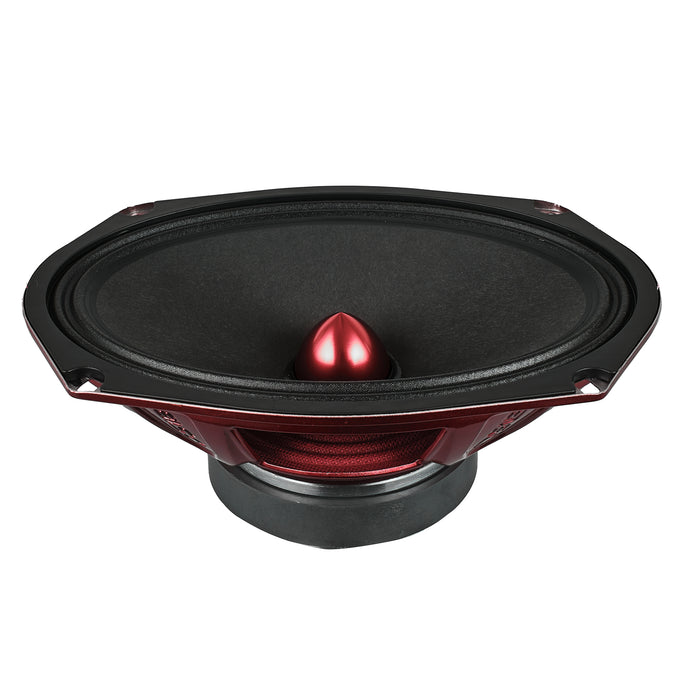

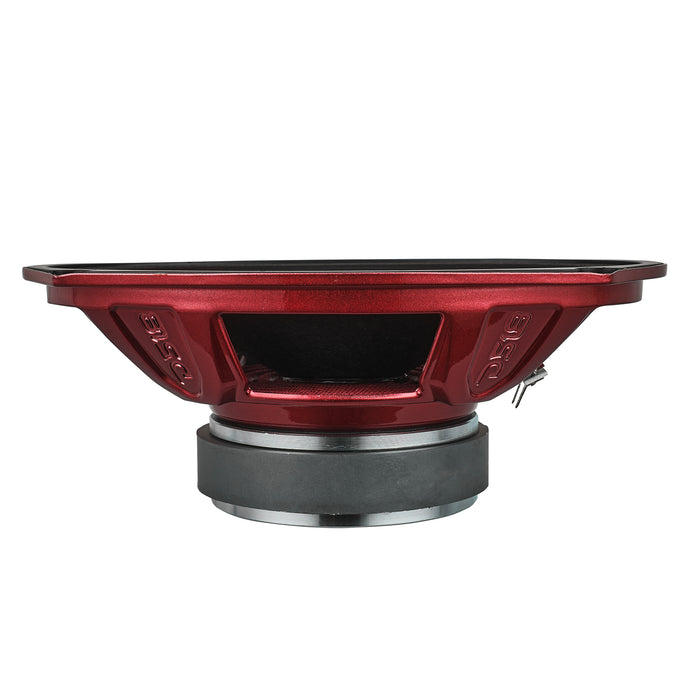

DS18 PRO-X 6X9" Mid-Range Loudspeaker with Bullet | 200W RMS 4-Ohm

This 6x9" mid-range loudspeaker delivers 200W RMS of crisp, punchy sound with a bold bullet design. Built with a 1.5" voice coil, ferrite magnet, and aluminum phase plug for wide dispersion and durability. Easy to install and perfect for high-output audio setups.

Features:

• 6x9" Mid-Range W/Bullet
• MAX Power: 400 Watts
• RMS Power: 200 Watts
• Impedance: 4-Ohm
• Ferrite Magnet
• 96dB ~ w/Grill

Specifications:

SKU
PRO-X694BM
Nominal Diameter
6 x 9" / 152 x 228mm
Nominal Impedance
4 Ohm
RMS Power Handling
200W
MAX Power Handling
400W
Sensitivity (1w/1m)
96dB
Frequency Response
100Hz-12.5KHz
Recommended HI Pass Crossover
120HZ
Sold in Pair or Single
Single
Grill Included
Yes

UPC: 810005181877

Motor:

Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Non-Pressed Paper
Bullet Material
Aluminum
Bullet Color/Finish
Glossy Red
Surround Material
Cloth
Basket Material
Steel
Basket Color/Finish
Glossy Red
Magnet Material
Ferrite
Magnet Weight
27Oz
Displacement Volume
0.32L / 0.011ft3

Thiele & Small Parameters:

Equivalent Volume
20.38L / 0.719ft3
Excursion (one way)
7.7mm
Free Air Resonance
120Hz
Mechanical Factor
5.166
Electrical Factor
0.731
Total Factor
0.64
Mechanical Mass
8.551g
Mechanical Compliance
0.225mm/N
BL Factor
6.544
Voice Coil Inductance
3.86mH
Cone Area
207.34cm2
DC Resistance
3.2 ohms

Measurement:

Overall Diameter
9.25 x 6.5" / 235 x 165mm
Overall Diameter With Grill
10.2 x 7.08" / 260 x 180mm
Overall Depth
3.5" / 88.85mm
Overall Depth With Grill
3.9" / 100mm
Front Mount Baffle Cutout
8.7 x 6" / 222 x 152mm
Mounting Depth
3.27" / 83mm
Motor Diameter
4.3" / 110mm
