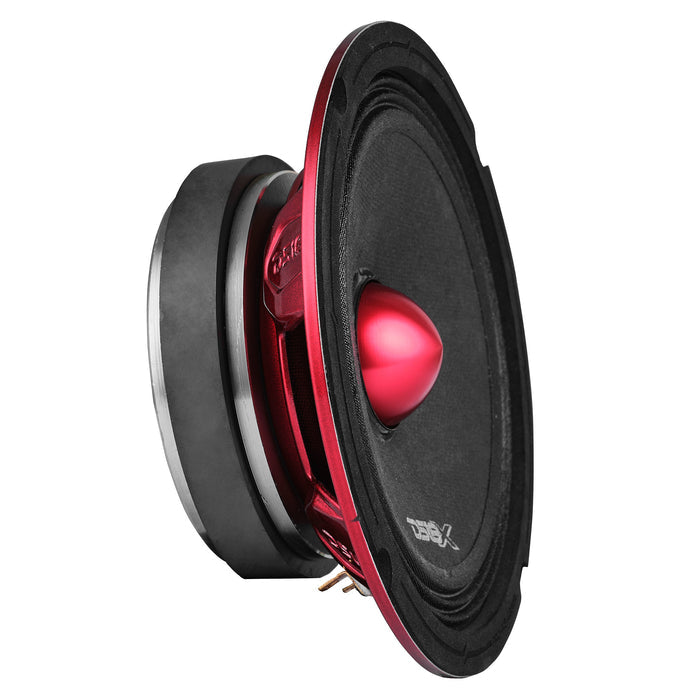

DS18 PRO-X6.4BMSL Slim Loudspeaker - 6.5", Midrange, Red Aluminum Bullet, 400W Max, 200W RMS, 4 Ohms (1 Speaker)

In stock
SKU: DS-PRO-X6.4BMSL
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $43.95 USD

PRO-X 6.5" Slim Mid-Range Loudspeaker with Bullet 400 Watts 4-Ohm

The PRO-X6.4BMSL is a slim mid-range designed to take your sound system to EXTREME levels of performance.
Featuring a 1.5" Kapton Voice Coil, the PRO-X6.4BMSL is built to withstand the most intense jam sessions without compromising on quality, so you can play your music as long as you want.
Engineered for compatibility, the PRO-X6.4BMSL has a reduced mounting depth and an RMS Power Rating of 200W allowing it to effortlessly integrate into any build.
Equipped with an innovative Bullet Resonator, the PRO-X6.4BMSL is insanely versatile. From deep and powerful bass at 80Hz to crystal-clear highs reaching 5KHz, the PRO-X6.4BMSL delivers a complete audio experience. Its high 93dB sensitivity ensures accurate tonal reproduction even at extreme volumes.
The PRO-X6.4BMSL strikes the perfect balance between size and performance. Redesigned with meticulous attention to detail, it features a sturdy steel basket with a vibrant red gloss finish so you can get LOUD in style.
Complete your sound system today with DS18’s PRO-X6.4BMSL.

SPECS

SKU
PRO-X6.4BMSL
Nominal Diameter
6.5" / 165mm
Nominal Impedance
4 ohms
RMS Power Handling
200W
MAX Power Handling
400W
Sensitivity (1w/1m)
93db
Frequency Response
80Hz - 5KHz
Recommended HI Pass Crossover
130Hz
Sold in Pair or Single
Single
Grill Included
No


Motor

Voice Coil Diameter
1.5" / 38.1mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Non-Pressed
Bullet Material
Aluminum
Bullet Color/Finish
Glossy Red
Surround Material
Cloth
Basket Material
Steel
Basket Finish / Color
Glossy Red
Magnet Material
Ferrite
Magnet Weight
21 Oz


Thiele & Small Parameters

Equivalent Volume Vas
4.51L / 0.159ft3
Excursion (one way) Xmax
6.4mm
Free Air Resonance Fs
140Hz
Mechanical Factor Qms
6.59
Electrical Factor Qes
0.81
Total Factor Qts
0.72
Mechanical Mass Mms
6.92g
Mechanical Compliance Cms
0.19mm/N
BL Factor BL
4.99
Voice Coil Inductance Le
0.03mH
Cone Area Sd
130.7Cm2
DC Resistance Re
3.3ohms


Measurement

Overall Diameter
6.65" / 169mm
Overall Depth
2.36" / 60mm
Front Mount Baffle Cutout
5.63" / 143mm
Mounting Depth
2.15" / 54.5mm
Motor Diameter
4.3" / 110mm
