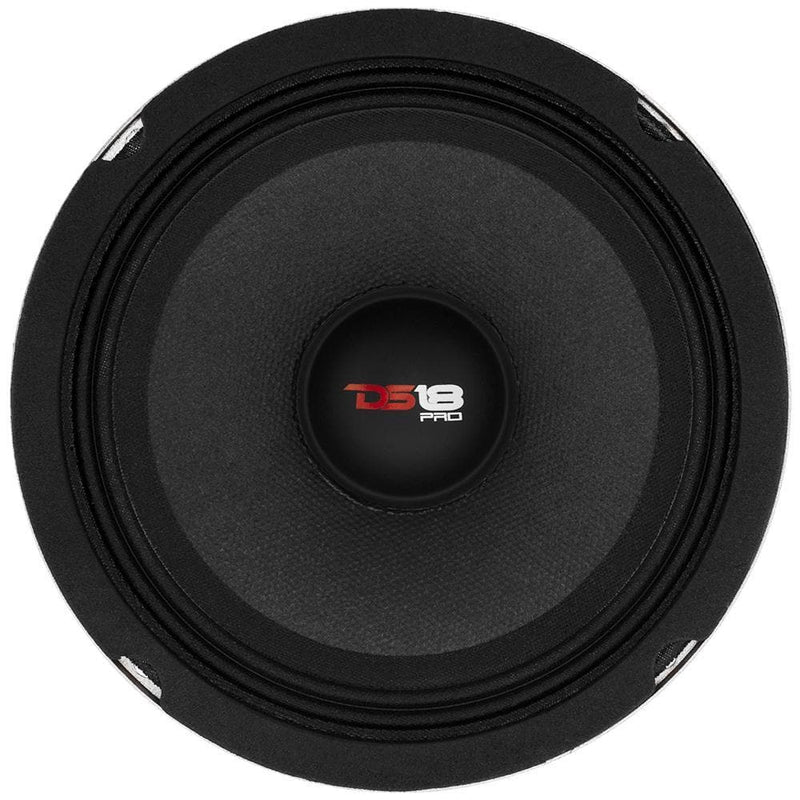

DS18 DS-PRO-X5M PRO-X 5.25 Inch Mid-Range Loudspeaker 300 Watts 8-Ohm DS18
Built for clear and aggressive midrange output, the DS18 PRO-X5M is a 5.25-inch pro audio midrange loudspeaker designed to deliver powerful, concert-style sound in car, truck, Jeep, and marine audio systems. With a focus on high efficiency and vocal clarity, it performs exceptionally well in custom builds where projection and articulation matter more than deep bass. Its non-pressed paper cone and cloth edge surround work together to produce a natural yet loud midrange response, while the ferrite magnet and steel basket provide stability under demanding power conditions. Whether used in a full pro audio setup or as part of a dedicated midrange array, this speaker brings strong output and clarity for enthusiasts looking to elevate their system performance.
Product Features
- 5.25-inch pro audio midrange loudspeaker
- Designed for loud, clear concert-style midrange output
- High-efficiency performance for custom audio builds
- Non-pressed paper cone for natural sound response
- Cloth edge surround for controlled movement and durability
- Red steel basket for structural strength
- Ferrite magnet for stable power handling
- Ideal for cars, trucks, Jeeps, SUVs, and marine systems
- Works well in pro audio and high-output speaker arrays
Specifications
- Model: PRO-X5M
- Type: Midrange Loudspeaker
- Size: 5.25 inch
- RMS Power: 150W
- Max Power: 300W
- Impedance: 8 Ohm
- Frequency Response: 245Hz – 13.5kHz
- Sensitivity: 90.4 dB
- Voice Coil: 1.2 inch
- Magnet Size: 18.5 oz
- Mounting Depth: 2.6 inch (66mm)
- Cut-Out Diameter: 4.33 inch (110mm)
- Frame Material: Steel Basket
- Cone Material: Non-Pressed Paper
- Surround: Cloth Edge
- Weight: 3.0 lb
