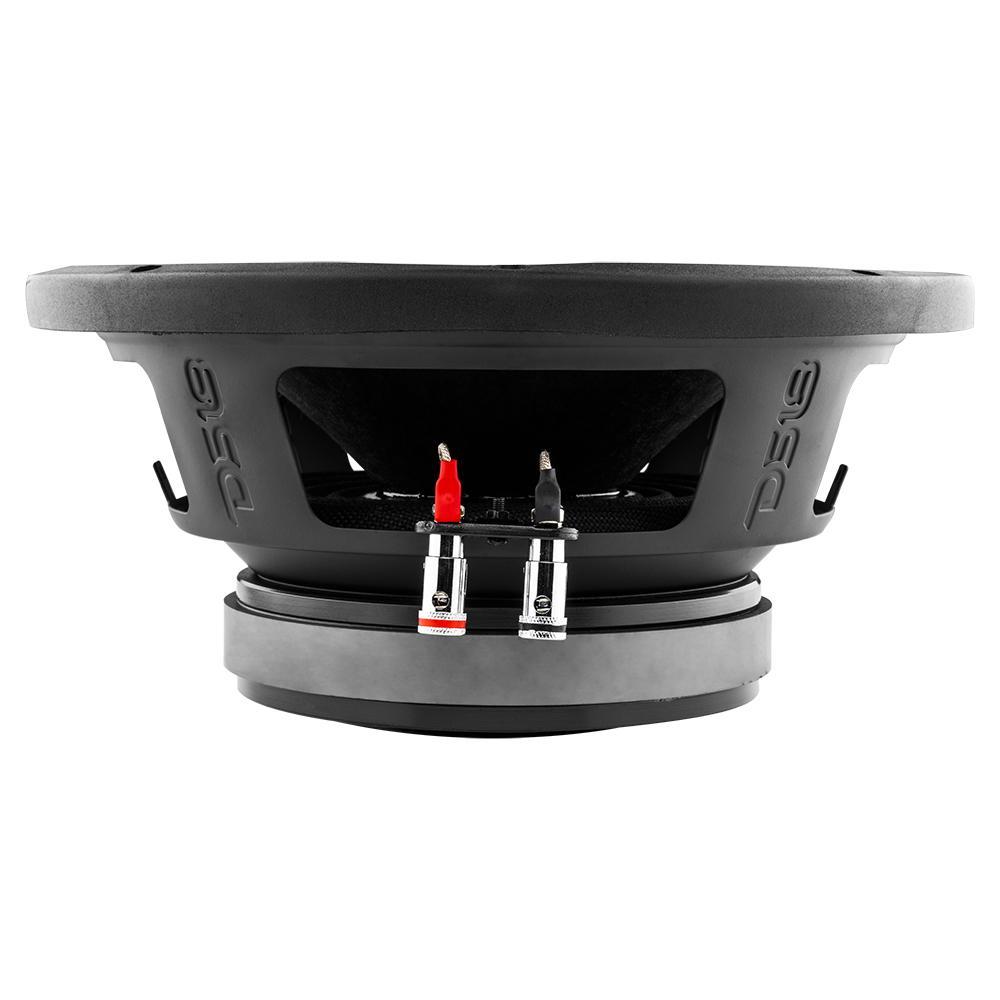

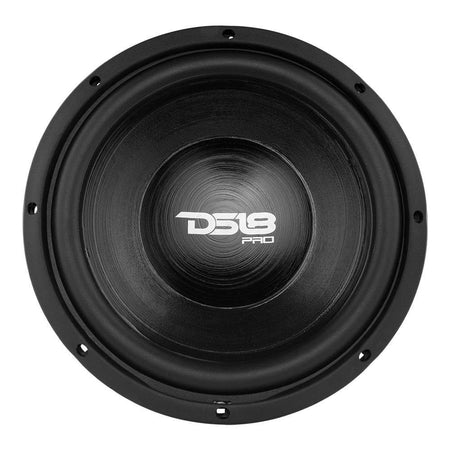

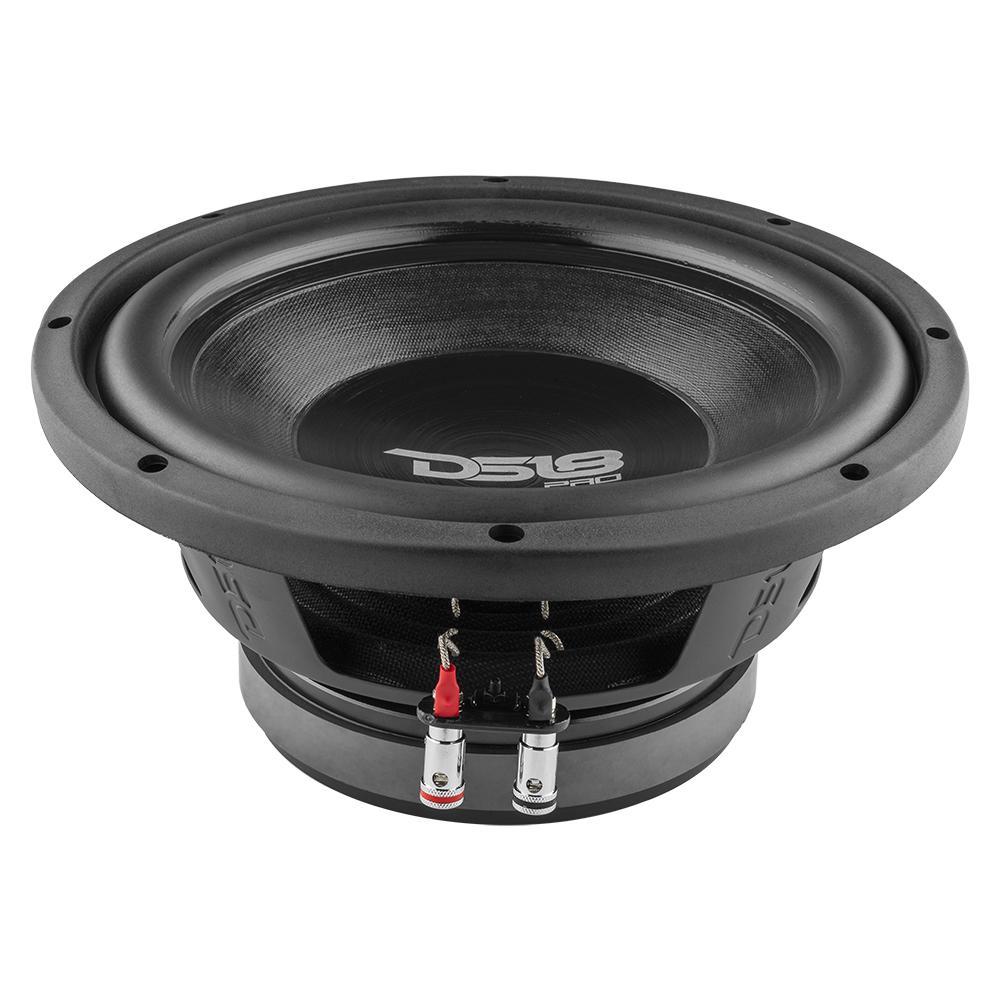

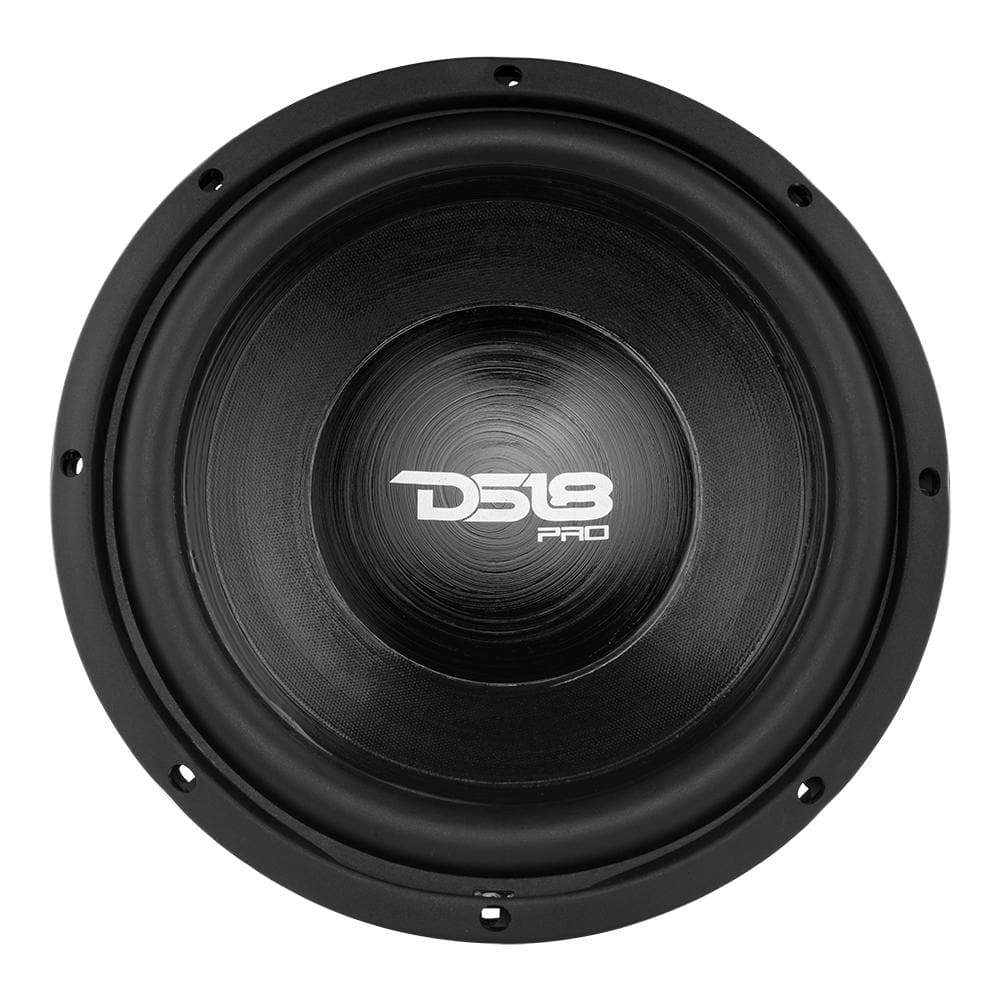

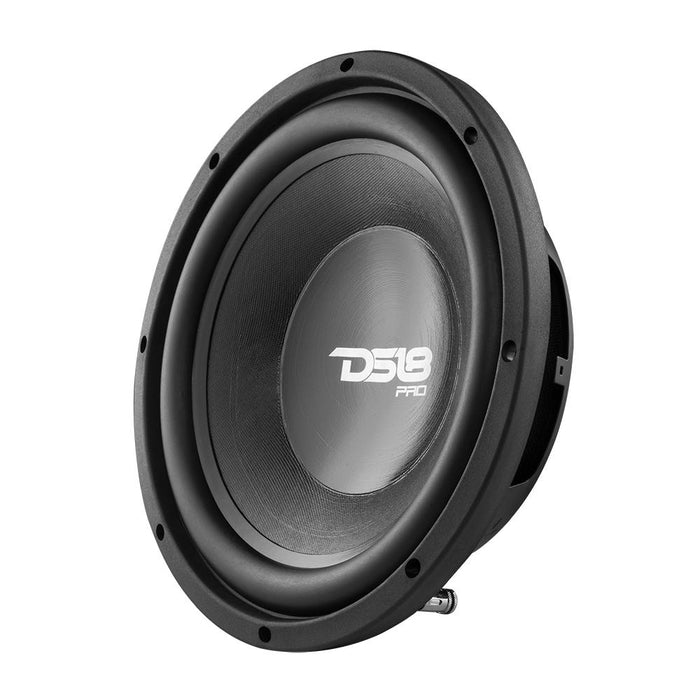

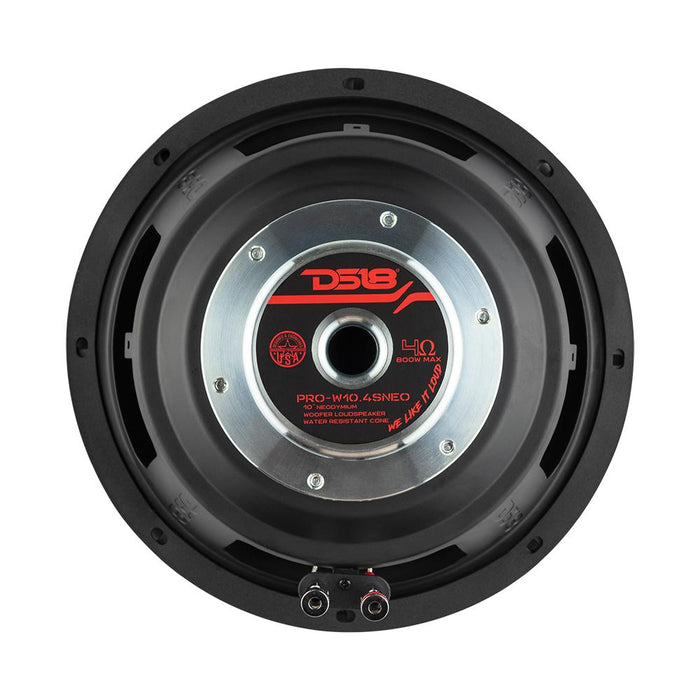

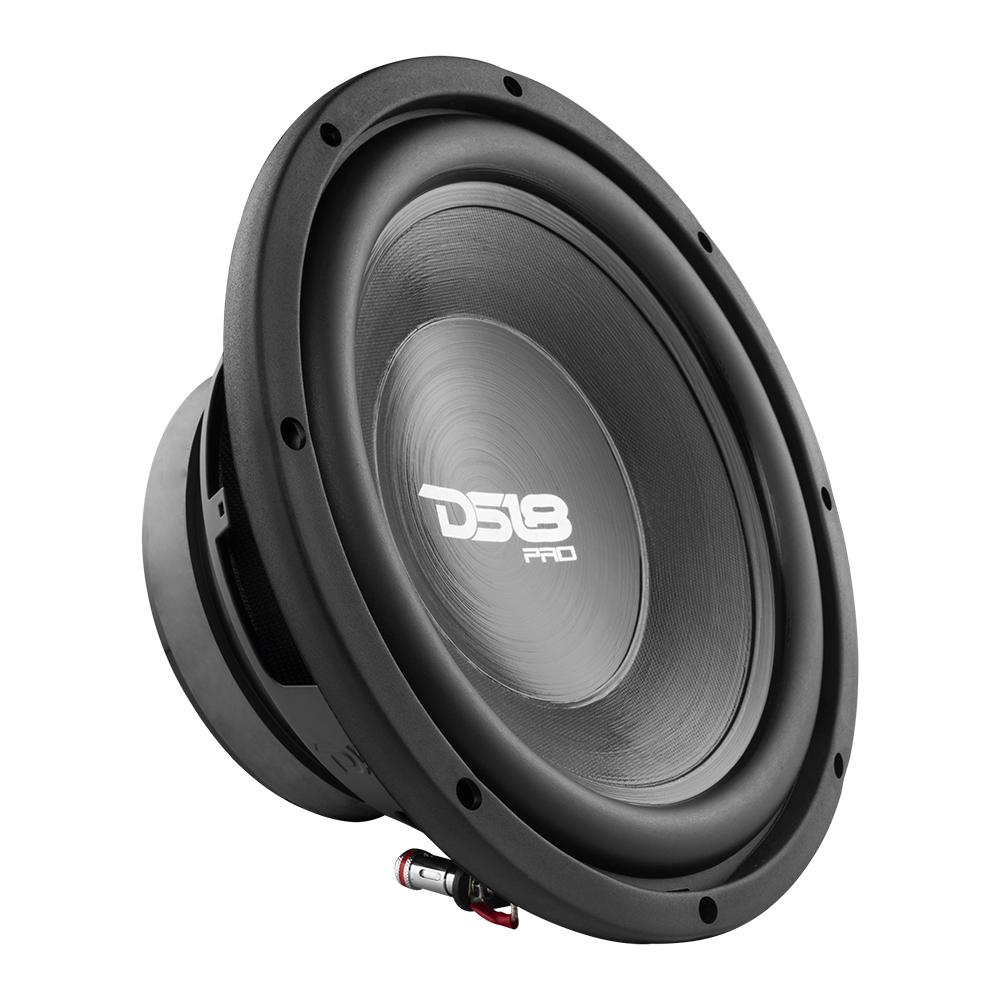

DS18 PRO 10" Neodymium Water Resistant Woofer 400 Watts Rms 4-Ohm SVC
Upgrade your ride with this 10" water-resistant woofer built for motorcycles and powersports. Delivers 800W peak power, corrosion-resistant design, and deep, clear sound in any weather. Perfect for outdoor audio systems.\
Features:
- 10" Woofer
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 4-Ohm 2.5" SVC
- Neodymium Magnet ~ 91dB
- Water Resistant
Specifications:
SKU
PRO-W10.4SNEO
Nominal Diameter
10’’ / 254mm
Nominal Impedance
4 ohms
RMS Power Handling
400W
MAX Power Handling
800W
Sensitivity (1w/1m)
91 dB
Frequency Response
40Hz-5KHz
Recommended Lo Pass Crossover
180hz
UPC: 810005186070
Motor:
Voice Coil Diameter
2.5’’ / 65.5mm
Voice Coil Former Material
Til
Winding Material
SV
Cone Material
Water resistant paper
Dust Cap Material
Water resistant paper
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Matte Black
Magnet Material
Ferrite
Magnet Weight
8.8 oz
Displacement Volume
1.8L / 0.0635ft3
Thiele & Small Parameters:
Equivalent Volume VAS
23.43L / 0.827ft3
Free Air Resonance FS
40 Hz
Mechanical Factor QMS
5.171
Electrical Factor QES
0.5
Total Factor QTS
0.38
Moving Mass MMS
91.85g
Compliance CMS
0.16mm/N
Bl Factor BI
12.95
Voice Coil Inductance LE
0.4578mH
Diaphragm Area SD
352.99 cm2
Dc Resistance RE
3.2 ohms
Efficiency Bandwidth Product EBP
80
Recommended Enclosures:
Sealed Internal Volume
1.4ft3
Sealed Box Output Response F3
53Hz
Ported Internal Volume
1.5ft3
Port Size *Square (W x H x Long)
3" x 3" x 5.6" / 76 x 76 x 142mm
Port Tunning Frequency FB
45Hz
Ported Box Output Response F3
38Hz
Measurement:
Overall Diameter
10.4" / 264 mm
Overall Depth
4.8" / 122mm
Front Mount Baffle Cutout
9.1" / 231 mm
Mounting Depth
4.25" / 108mm
Motor Diameter
3.42" / 87mm
Dimensions L x W x H (Inches)
10.87 X 10.87 X 5.5
Product Weight (lb)
7
M/C Dimensions L x W x H (Inches)
22.5 x 12 x 11.5
M/C Weight (lb)
29.5
M/C Qty
4
Sold in
Single
