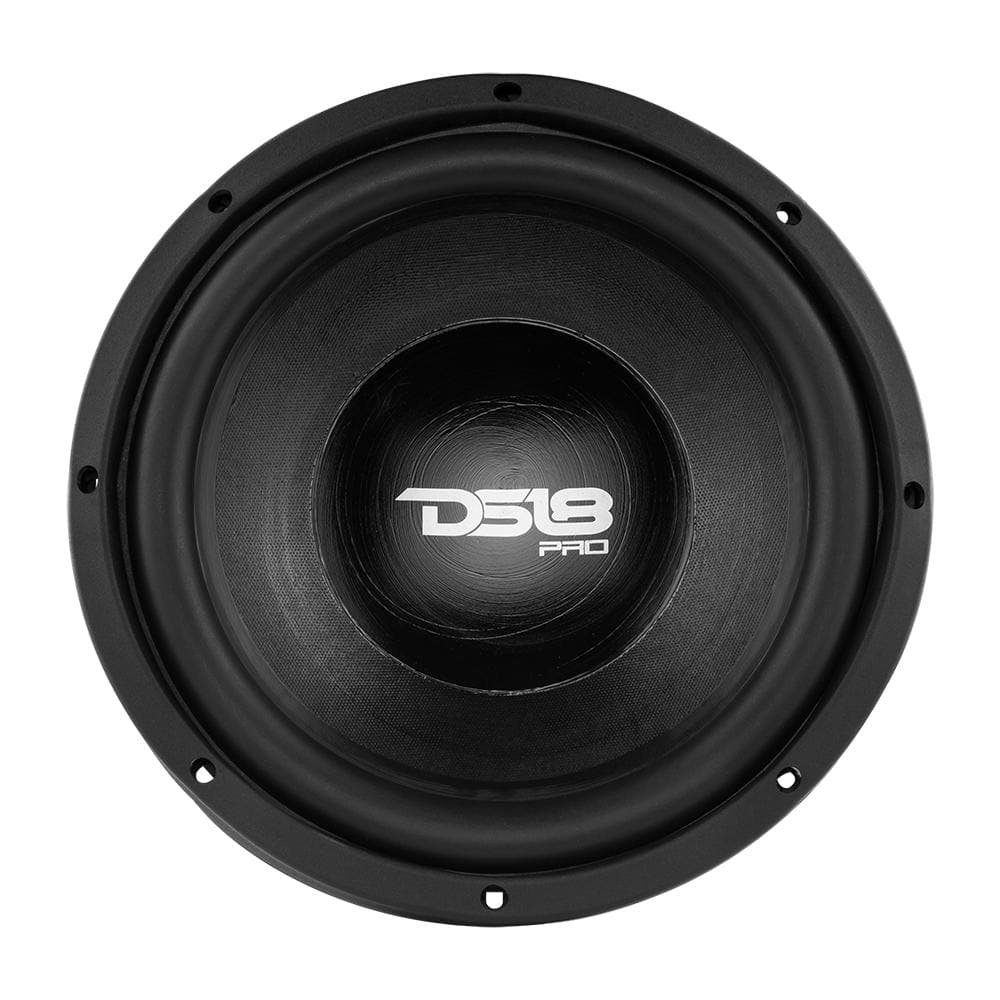

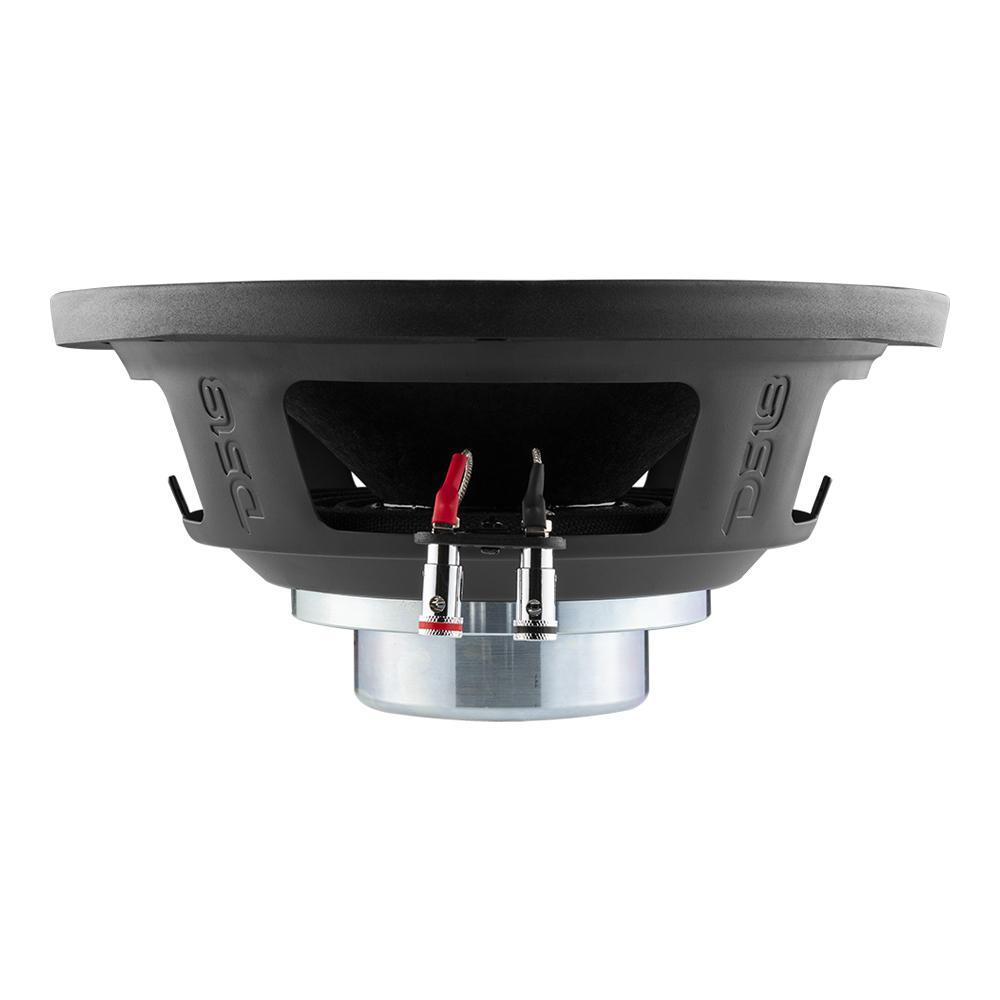

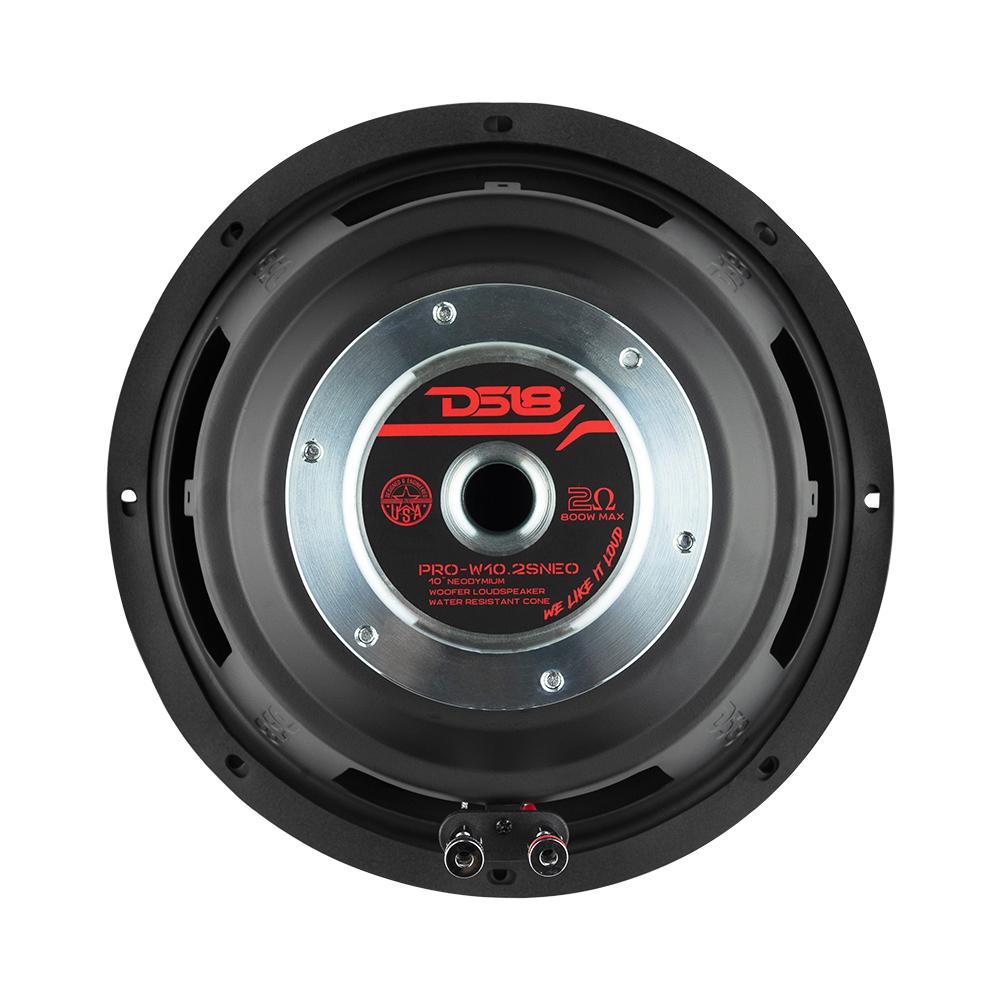

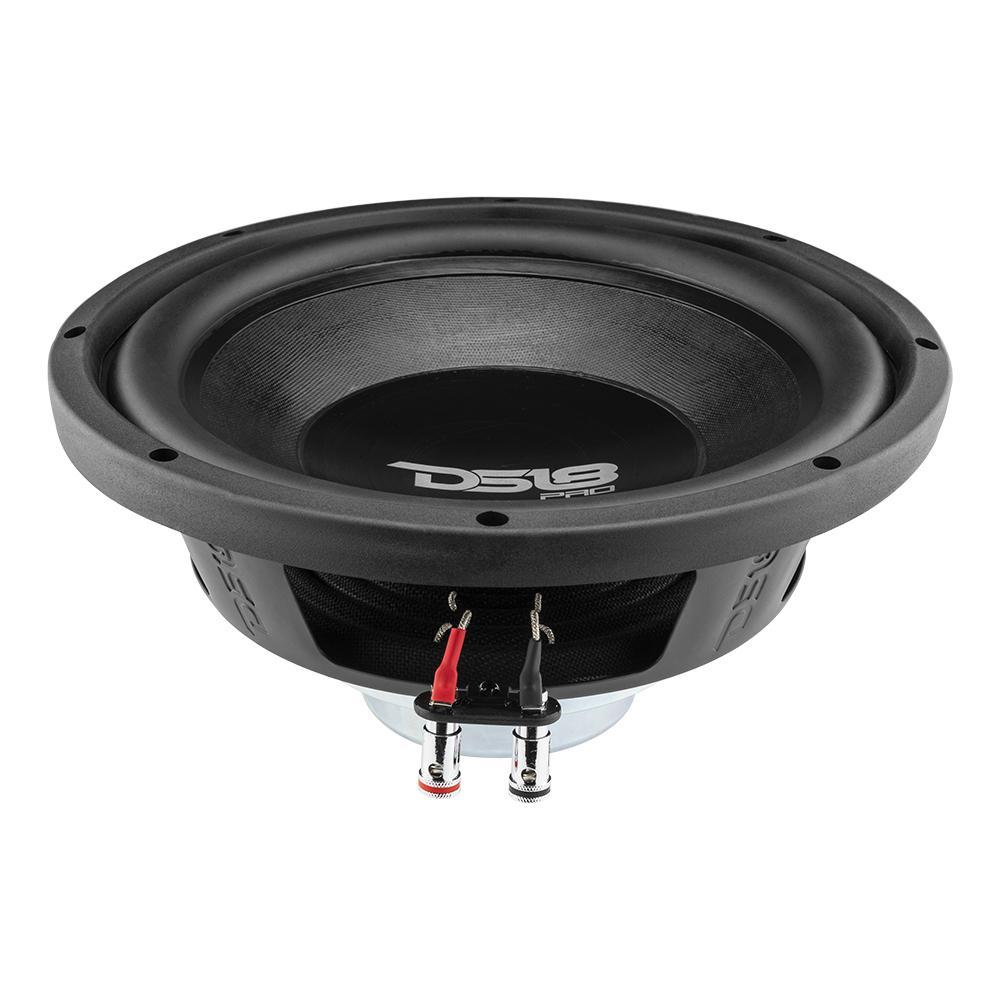

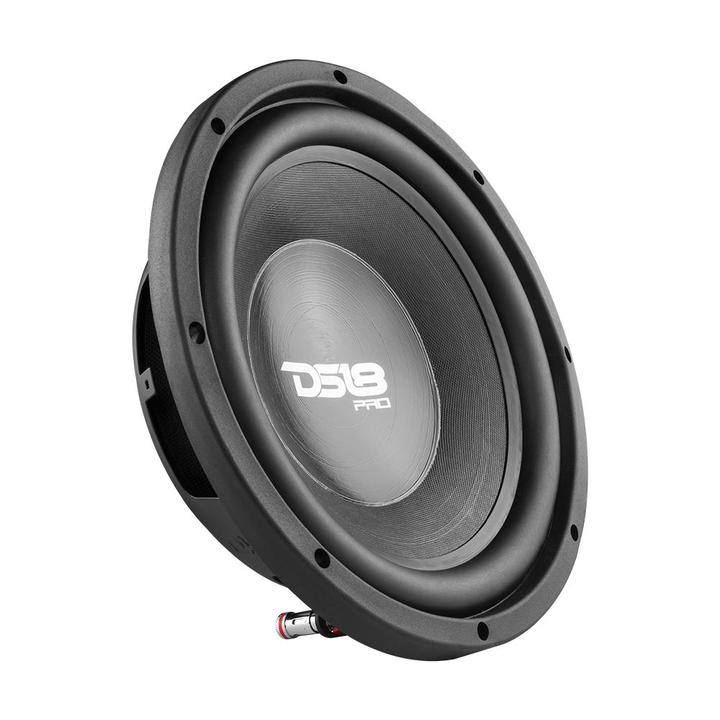

DS18 PRO 10" Neodymium Water-Resistant Woofer – 400W RMS, 2-Ohm SVC

Take your ride to the next level with the DS18 PRO-W10.2SNEO — a powerful 10" water-resistant woofer built for motorcycles and powersports. With 700W peak power, a 2.5" voice coil, and a neodymium motor, this speaker delivers loud, clear, and durable sound in any weather. Corrosion-resistant materials and a rugged design ensure long-lasting performance on the road or trail.

Features:

• 10" Woofer
• MAX Power: 800 Watts
• RMS Power: 400 Watts
• Impedance: 2-Ohm 2.5" SVC
• Neodymium Magnet ~ 91dB
• Water Resistant

Specifications:

SKU
PRO-W10.2SNEO
Nominal Diameter
10’’ / 254mm
Nominal Impedance
2 Ohm
RMS Power Handling
400W
MAX Power Handling
800W
Sensitivity (1w/1m)
91 dB
Frequency Response
40Hz-5KHz
Recommended Lo Pass Crossover
180hz

UPC: 810005186056

Motor:

Voice Coil Diameter
2.5’’ / 65.5mm
Voice Coil Former Material
Til
Winding Material
SV
Cone Material
Water resistant paper
Dust Cap Material
Water resistant paper
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Matte Black
Magnet Material
Ferrite
Magnet Weight
8.8 oz
Displacement Volume
1.8L / 0.0635ft3

Thiele & Small Parameters:

Equivalent Volume VAS
22.5L / 0.79ft3
Free Air Resonance FS
40 Hz
Mechanical Factor QMS
5.846
Electrical Factor QES
0.452
Total Factor QTS
0.397
Moving Mass MMS
91.85g
Compliance CMS
0.16mm/N
Bl Factor Bl
12.95
Voice Coil Inductance LE
0.4578mH
Diaphragm Area SD
352.99 cm2
Dc Resistance RE
2.0 ohms
Efficiency Bandwidth Product EBP
88.4

Recommended Enclosures:

Sealed Internal Volume
1.4ft3
Sealed Box Output Response F3
53Hz
Ported Internal Volume
1.5ft3
Port Size *Square (W x H x Long)
3" x 3" x 5.6" / 76 x 76 x 142 mm
Port Tunning Frequency FB
45Hz
Ported Box Output Response F3
38Hz

Measurement:

Dimensions L x W x H (Inches)
10.87 x 10.87 x 5.5
Overall Depth
4.8" / 122mm
Front Mount Baffle Cutout
9.1" / 231 mm
Mounting Depth
4.25" / 108mm
Motor Diameter
3.42" / 87mm
Weight (lb)
7
M/C Dimensions L x W x H (Inches)
29.5 x 22.5 x 12
M/C Weight (lb)
29.5
M/C Qty
4
Sold in
Single
