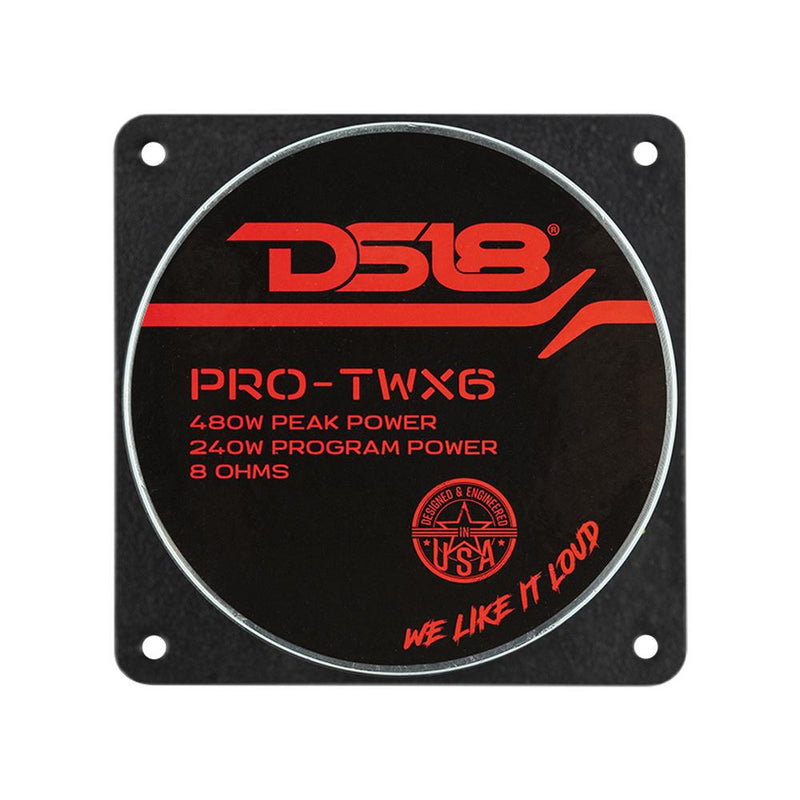

DS18 DS-PRO-TWX6 PRO 1.5 Inch VC Aluminum Super Bullet Tweeter 480 Watts 8-Ohm DS18

In stock
SKU: DS-PRO-TWX6
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $44.95 USD

DS18's new 8 ohm super tweeter is sleek and refined after many years of testing and development. These square aluminum housings hold a titanium 1.5 inch voice coil rated for 240w Program power and 480w MAX power with a ferrite motor structure.

With a 112db sensitivity rating, these tweeters do not need a lot of power to get extremely loud. These tweets have a range of 1.7hz to 20khz so you will be sure you wont miss one crack of the high hat!

KEY FEATURES:
  • Sturdy 4x4 aluminum throat for easy mounting and aesthetic symmetrical look.
  • 112db sensitivity with a 240w program and 280w peak power rating.
  • Mounting depth of 2.75 inches so they will clear most door panel locations with minimal fabrication work.
  • Silver bullet resonator helps clear and loud frequencies to carry through the air.
  • Nominal Diameter 4 inchx4 inch / 102x102mm
  • Nominal Impedance 8 ohms
  • Peak Power 480 watts
  • Program Power 240 watts
  • AES Power 120 watts
  • Sensitivity (1w/1m) 112 db
  • Frequency Response 1.7Hz-20KHz
  • Recommended Hi Pass Crossover 2.5hz
MOTOR:
  • Voice Coil Diameter 1.5 inch / 38mm
  • Voice Coil Former Material KSV
  • Winding Material SN
  • Diaphragm Material Titanium
  • Body Material Aluminum
  • Magnet Material Ferrite
  • Magnet Weight 15 oz
MEASUREMENTS:
  • Overall Diameter 4 inchx4 inch / 102x102mm
  • Front Mount Baffle Cutout 3.5 inch / 90mm
  • Overall Depth 2.7 inch/ 69mm
  • Mounting Depth 2.5 inch / 65mm
  • Motor Diameter 3.5 inch / 90mm
SPECIFICATIONS:
SERIES Pro Series
SOLD AS Piece
WARRANTY 1 Year Warranty
UNIVERSAL Yes
AAIAID FXVX
YOUTUBE VIDEO https://youtu.be/DoSwCJgBNdY
VEHICLE TYPE Marine|Jeep|Car|Truck/SUV
BRAND DS18
UPC 810000000000.0
DIAMETER 1.5 Inch
WATT 480 Watts
OHM 8 ohm
MATERIAL L Aluminum
DIM LENGTH 4.25
DIM WIDTH 4.25
DIM HEIGHT 3.25
DIM UNIT in
WEIGHT 3.0
WEIGHT UNIT lb
  • Installation Guide
