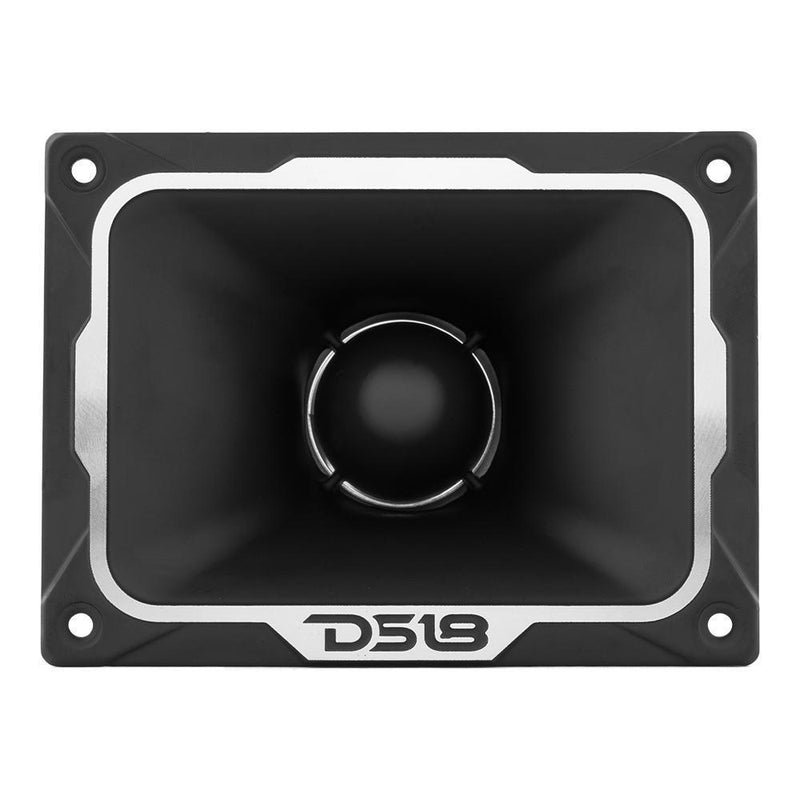

DS18 DS-PRO-TWX5 PRO 1.5 Inch VC Aluminum Super Bullet Tweeter 480 Watts 4-Ohm DS18
DS18's new 4 ohm supertweeter is sleek and refined after many years of testing and development. These aluminum housings hold a titanium 1.5 inch voice coil rated for 250w RMS and 500w MAX power with a ferrite motor structure.
With a 107db sensitivity rating, these tweeters do not need alot of power to get extremely loud. These tweets have a range of 3khz to 20khz so you will be sure you wont miss one crack of the high hat!
DETAILS:
- Model: PRO-TWX5
- Type: Super Bullet Tweeter
- Nominal Diameter 4 inchx5.35 inch
- RMS Power: 250 Watts
- MAX Power: 500 Watts
- Voice Coil Diameter: 1.5 inch
- Sensitivity: 107 dB
- Impedance: 4 Ohms
- Frequency Response: 3KHz - 20KHz
- Package Quantity: 1
- Magnet Ferrite
MEASUREMENTS:
- Overall Width 4 inch x 5.35 inch
- Overall Depth 3.17 inch
- Front Mount Baffle Cutout 2.95 inchx4.09 inch
- Mounting Depth 2.95 inch
SPECIFICATIONS:
| SERIES | Pro Series |
| SOLD AS | Piece |
| WARRANTY | 1 Year Warranty |
| UNIVERSAL | Yes |
| AAIAID | FXVX |
| YOUTUBE VIDEO | https://youtu.be/DoSwCJgBNdY |
| VEHICLE TYPE | Marine|Jeep|Car|Truck/SUV |
| BRAND | DS18 |
| UPC | 810005184946 |
| DIAMETER | 1.5 Inch |
| WATT | 480 Watts |
| OHM | 4 ohm |
| MATERIAL L | Aluminum |
| DIM LENGTH | 6.25 |
| DIM WIDTH | 4.5 |
| DIM HEIGHT | 3.5 |
| DIM UNIT | in |
| WEIGHT | 3.0 |
| WEIGHT UNIT | lb |
