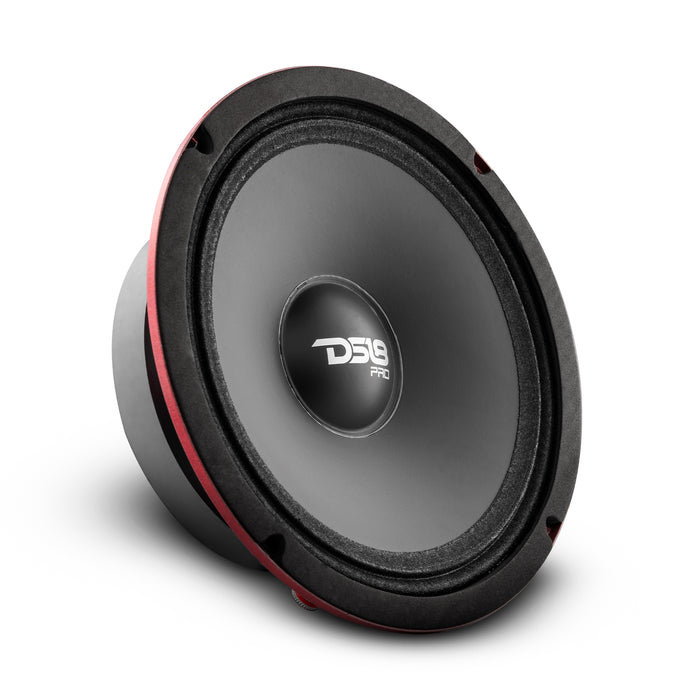

DS18 RO 6.5” Shallow Mount Loudspeaker – 200W RMS, Water-Resistant, 2-Ohm
sp
Features:
- 6.5" Shallow Mid-Range
- Water Resistant
- RMS Power: 200 Watts(400 Watts Peak)
- Impedance: 2 Ohm
- Ferrite Magnet
- 95dB
Specifications:
SKU
PRO-SM6.2
Nominal Diameter
6.5” / 165.1mm
Nominal Impedance
2 OHMS
RMS Power Handling
200 Watts
MAX Power Handling
400 Watts
Sensitivity (1w/1m)
95 dB
Frequency Response
80Hz-14KHz
Recommended Hi Pass Crossover
180 Hz
SKU
PRO-SM6.2
UPC: 810005181853
Motor:
Voice Coil Diameter
1.5” / 38.1 mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Water Resistant Paper
Dust Cap Material
Water Resistant
Surround Material
Coated Cloth
Basket Material
Steel
Basket Color
Glossy Red
Magnet Material
Ferrite
Magnet Weight
20 Oz
Thiele & Small Parameters:
Vas
4.7L / 0.165ft3
Xmax
8 mm
Fs
188 Hz
Qms
6.869
Qes
1.522
Qts
1.246
Mms
5.082 g
Cms
0.142 m/N
Bl
2.811
Le
0.289mH
Sd
153.94 cm2
Re
2 OHMS

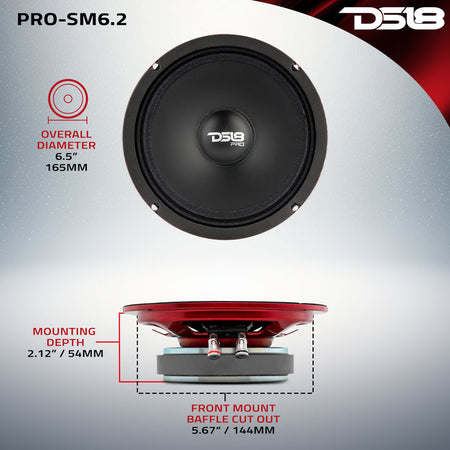

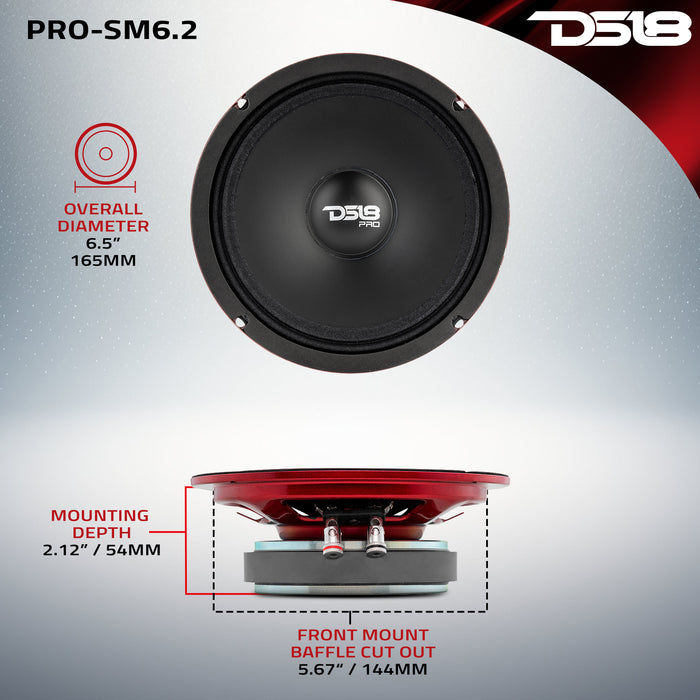

Measurement:
Overall Diameter
6.5” / 165mm
Overall Depth
2.32” / 59 mm
Front Mount Baffle Cutout
5.67“ / 144 mm
Mounting Depth
2.12” / 54 mm
Motor Diameter
4.33" / 110 mm
