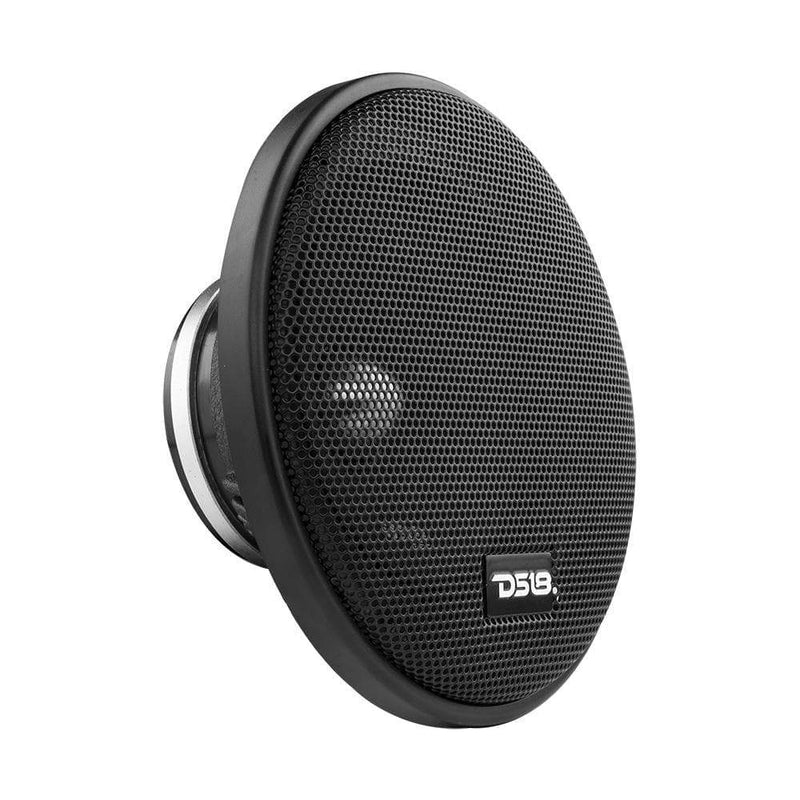

DS18 DS-PRO-FR5NEO PRO 5.25 Inch Neodymium Full-Range Loudspeaker W/ Bullet 400 Watts 4-Ohm W/ Grill DS18

In stock
SKU: DS-PRO-FR5NEO
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $99.95 USD

DS18 amassed a wealth of experience in manufacturing the most elegant neodymium midranges for those seeking simple perfection.

Neodymium magnets provide a higher magnetic flux density in the air gap, which generates a much greater action force in the voice coil. For this reason, Neo magnets have the strongest permanent magnets of all the commercially available speakers.

Ranging in sizes, mounting depths, and frequency responses, we have more than 10 different models of Neo midranges to accommodate any build.

DETAILS:
  • Model: PRO-FR5NEO
  • Type: Full Range Loudspeaker with Bullet
  • Size: 5.25 inch
  • RMS Power: 200W
  • MAX Power: 400W
  • Frequency Response: 242Hz - 13.6KHz
  • Impedance: 4 Ohm
  • Sensitivity: 94.6dB
MATERIALS:
  • Surround: Cloth Edge
  • Frame: Aluminum
  • Cone: Non-Pressed Paper Cone
  • Magnet: Neodymium
  • Voice Coil Wire: KCCAW 2 Layer
DIAMETERS:
  • Voice Coil Size: 1.2 inch
  • Magnet Size: NEO
  • Mounting Depth: 1.74 inch (44mm)
  • Cut-Out Dimension: 4.65 inch (118mm)
SPECIFICATIONS:
SERIES Pro Series
SOLD AS Piece
WARRANTY 1 Year Warranty
UNIVERSAL Yes
AAIAID FXVX
YOUTUBE VIDEO https://youtu.be/DoSwCJgBNdY
VEHICLE TYPE Marine|Jeep|Car|Truck/SUV
BRAND DS18
UPC 664000000000.0
DIAMETER 5.25 Inch
WATT 400 Watts
OHM 4 ohm
STYLE Full Range
DIM LENGTH 7.0
DIM WIDTH 7.0
DIM HEIGHT 3.75
DIM UNIT in
WEIGHT 2.5
WEIGHT UNIT lb
  • Installation Guide
