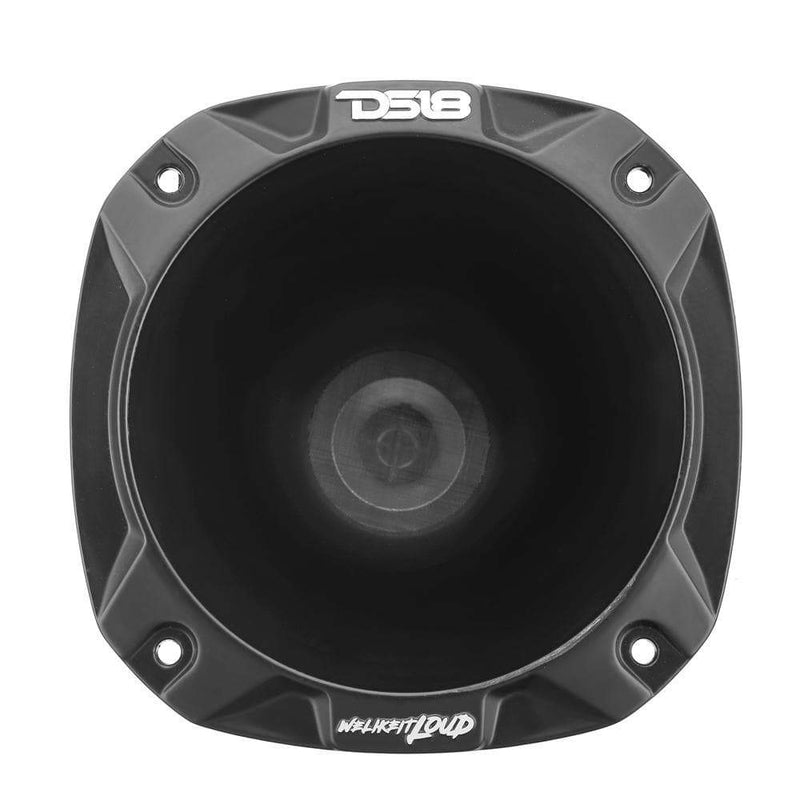

DS18 DS-PRO-DKH1XS PRO-D1 2 Inch Bolt On Short Throat Compression Driver W/ Spacer 2 Inch Titanium Voice Coil and PRO-HA52/BK Horn 640 Watts 8-ohm DS18

The DKH1S includes the DS18 DKH1 driver plus our newly redesigned shorty throat so you only need 4.9 inches mounting depth to mount these ear ripping drivers.

The new throat is aluminum with brilliantly brushed DS18 logos and made for maximum directional efficiency. With an AES power handling of 160w and peak at 640w you will be sure to draw everyone's attention to your audio!

KEY FEATURES:

• DS18 Driver spacer increases the sensitivity decibel level significantly for the loudest response.
• Aluminum Shorty throat with brushed DS18 logos for an amazing look and great fitment.
• DKH1 Driver with an AES rating of 160 watts and peak of 640w for super loud and vibrant highs with a Titanium 8 ohm voice coil.
• 5.7 inch mounting depth and 6 inches total mounting depth so you don't need a large amount of mounting depth like other traditional driver and throat combinations.

SPECIFICATIONS:

• Throat Diameter 2 inch/50.8mm
• Installation Type Bolt-on
• Nominal Impedance 8 OHMS
• Program Power Handling 320W
• Peak Power Handling 640W
• AES Power Handling 160W
• Sensitivity 115dB
• Frequency Response 630Hz-20KHz
• Recommended HI Pass Crossover 900 Hz

MOTOR:

• Voice Coil Diameter 2.03 inch/51mm
• Voice Coil Former Material Kapton
• Winding Material CCA
• Diaphragm Material Titanium
• Magnet Material Ferrite
• Magnet Weight 35oz

MEASUREMENTS:

• Overall Diameter 7 inch/180mm
• Overall Depth 6 inch/154.7mm
• Bolt Pattern/Type 5.5mm hole-6.3 inch/161 mm Diameter
• Mounting Depth 5.7 inch/145.8mm
• Mounting Hole Diameter 5.7 inch/145mmm
