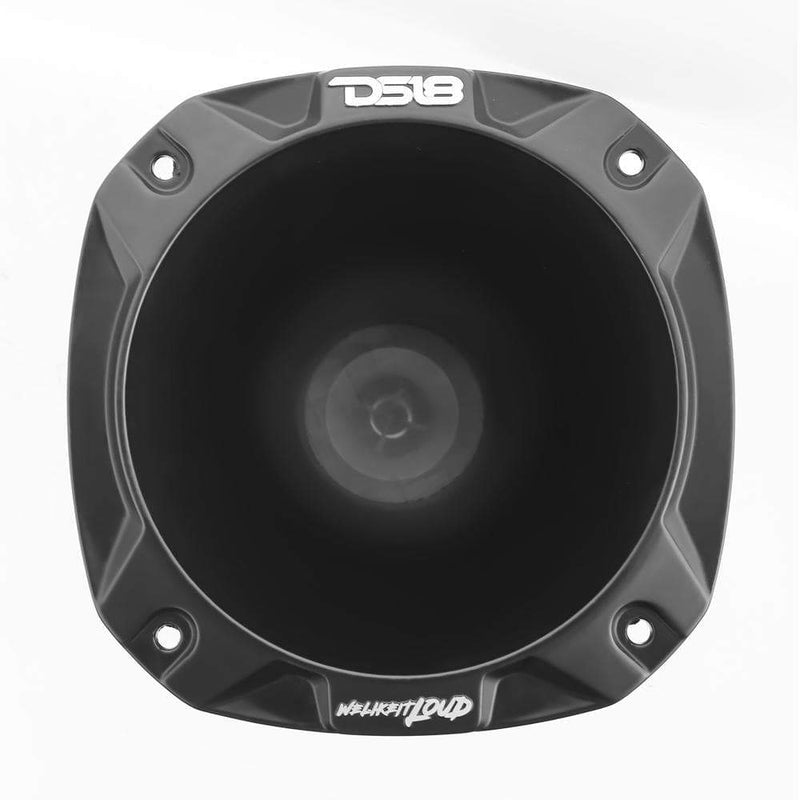

DS18 DS-PRO-DKH1X PRO-D1 2 Inch Bolt On Throat Compression Driver W/ Spacer 2 Inch Titanium Voice Coil and PRO-HA102/BK Horn 640 Watts 8-ohm DS18
Everyone is looking for louder horns and what they can do to tweak them. We make that easy for you with no guesswork with the DKH1X.
This full size driver includes the DS18 DKH1 redesigned to be louder with the included DB spacer to increase the drivers overall sensitivity. Plus our newly redesigned shorty throat so you you only need 7.9 inches depth to mount these ear ripping drivers.
The new throat is aluminum with brilliantly brushed DS18 logos and made for maximum directional efficiency. With an AES power handling of 160w and peak at 640w you will be sure to draw everyone's attention to your audio!
KEY FEATURES:
- DS18 Driver spacer increases the sensitivity decibel level significantly for the loudest response.
- Aluminum full size throat with db sensitivity spacer
- DKH1 Driver with an AES rating of 160 watts and peak of 640w for super loud and vibrant highs with a Titanium 8 ohm voice coil.
- 5.7 inch mounting depth and 6 inches total mounting depth so you don't need a large amount of mounting depth like other traditional driver and throat combinations.
SPECIFICATIONS:
- Throat Diameter 2 Inch/50.8mm
- Installation Type Bolt-on
- Nominal Impedance 8 OHMS
- Program Power Handling 320W
- Peak Power Handling 640W
- AES Power Handling 160W
- Sensitivity 115dB
- Frequency Response 630Hz-20KHz
- Recommended HI Pass Crossover 900 Hz
MOTOR:
- Voice Coil Diameter 2.03 Inch/51mm
- Voice Coil Former Material Kapton
- Winding Material CCA
- Diaphragm Material Titanium
- Magnet Material Ferrite
- Magnet Weight 35oz
MEASUREMENTS:
- Overall Diameter 7 Inch/180mm
- Overall Depth 8.3 Inch/211mm
- Bolt Pattern/Type 5.5mm hole-6.3 Inch/161 mm Diameter
- Mounting Depth 7.9 Inch/201.5mm
- Mounting Hole Diameter 5.7 Inch/145mmm
SPECIFICATIONS:
| SERIES | Pro Series |
| SOLD AS | Piece |
| WARRANTY | 1 Year Warranty |
| UNIVERSAL | Yes |
| AAIAID | FXVX |
| YOUTUBE VIDEO | https://youtu.be/DoSwCJgBNdY |
| VEHICLE TYPE | Marine|Jeep|Car|Truck/SUV |
| BRAND | DS18 |
| UPC | 810005185837 |
| DIAMETER | 2.0 Inch |
| WATT | 640 Watts |
| MOUNT STYLE | Bolt On |
| OHM | 8 ohm |
| COLOR L | Black |
| MATERIAL L | Aluminum |
| DIM LENGTH | 7.0 |
| DIM WIDTH | 7.0 |
| DIM HEIGHT | 8.75 |
| DIM UNIT | in |
| WEIGHT | 9.0 |
| WEIGHT UNIT | lb |
