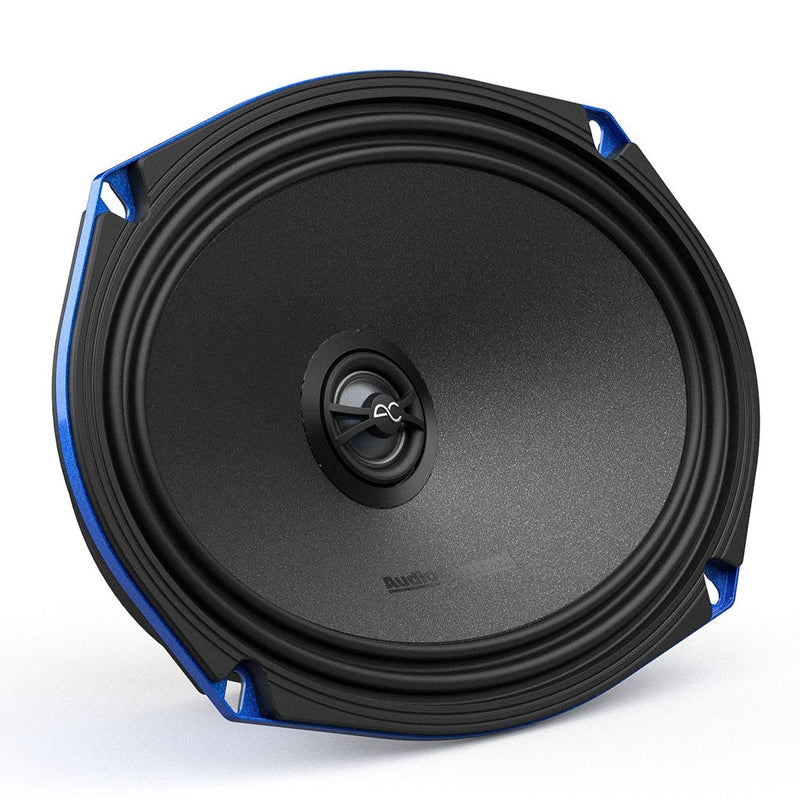

Audio Control PNW-69 PNW Series 6 x 9″ High-Fidelity Coaxial Speakers

In stock
SKU: AC-PNW69
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $229.00 USD

PNW Series 6 x 9" High-Fidelity Coaxial Speakers

Experience the vibrant landscapes of the Pacific Northwest through your music with AudioControl’s PNW speakers. Backed by over 45 years of engineering top-quality audio components, these speakers offer a wild auditory adventure like no other. Combine them with AudioControl’s legendary amplifiers for an unmatched audio experience.

Features:

  • Edge-enhanced steel frame for added structural strength
  • Black anodized voice coil former for superior heat dissipation
  • Linear double-roll surround for precise cone movement
  • Complex FEA-designed high-efficiency motor
  • Rigid poly mica-coated cone for optimized sound reproduction
  • Rear dampened hybrid silk dome tweeter for extended frequency response
  • Concentric point source design for seamless transition from midrange to tweeter
  • Sonic diffuser and radiant collar for better off-axis frequency response
  • High-quality mounting hardware included

Specifications:

  • Crossover Type: Butterworth
  • DC Resistance (Re): 2.6 ohms
  • Filter Type: HP
  • System Frequency (Fs) Response: 50-20k Hz
  • XO Frequency: 5250 Hz
  • Slope (Octave): -6 dB
  • Tweeter Voice Coil Diameter: 20 mm
  • Midrange Voice Coil Diameter: 35 mm

In the Box: PNW-69 Speakers, Manual

Dimensions:

  • Overall Dimensions: 6 x 9 in / 167 x 235 mm
  • Overall Diameter (w/o Metal bracket): 7.2 x 10.43 in / 183 x 265 mm
  • Cut Out Diameter: 5.74 x 8.34 in / 146 x 212 mm
  • Mounting Depth: 2.95 in / 75 mm
  • Mounting Height (w/o Grille): 0.24 in / 6.3 mm
  • Mounting Height (w/ Grille): 0.98 in / 25 mm
  • Motor Diameter (w/ Cover): 4.6 in / 117 mm

Weight: 11 lbs
