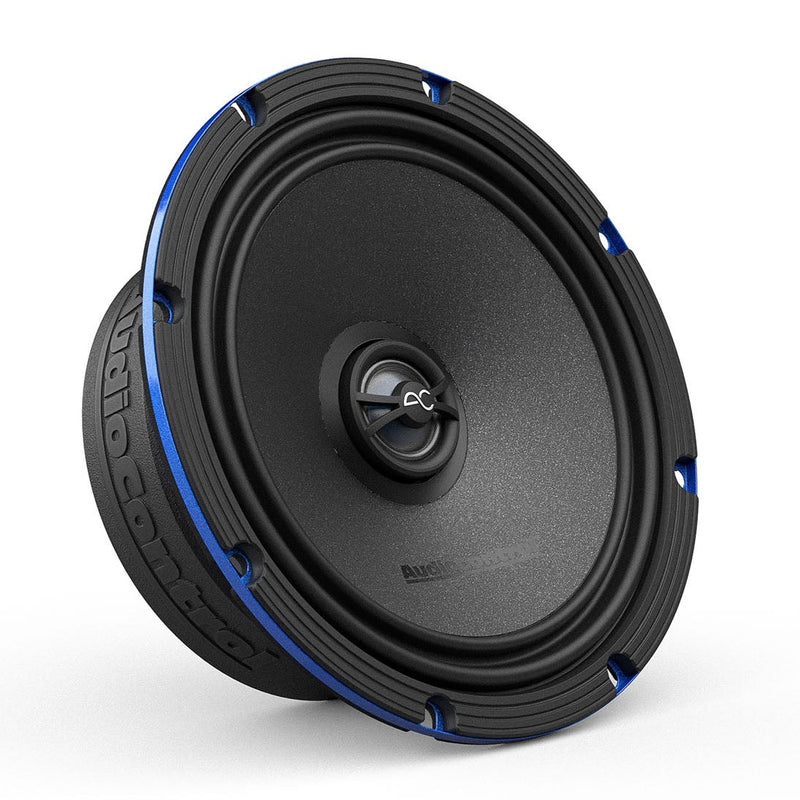

Audio Control PNW-65 PNW Series 6.5″ High Fidelity Coaxial Speakers

PNW Series 6.5" High-Fidelity Coaxial Speakers

Embark on an auditory adventure with AudioControl’s PNW speakers, backed by over 45 years of engineering top-quality audio components. Combine these speakers with AudioControl’s legendary amplifiers to experience the vibrant landscapes of the Pacific Northwest through your music like never before. Featuring an edge-enhanced steel frame for ultimate structural strength, a black anodized voice coil former for superior heat dissipation, and a linear double-roll surround for precise cone movement, the PNW line ensures optimal sound reproduction with its rigid poly mica-coated cone.

Features:

• Edge-enhanced steel frame for added structural strength
• Black anodized voice coil former for superior heat dissipation
• Linear double-roll surround for precision cone movement
• Complex FEA-designed high-efficiency motor
• Rigid poly mica-coated cone for optimized sound reproduction
• Rear dampened hybrid silk dome tweeter for extended frequency response
• Concentric point source design for a seamless transition from midrange to tweeter
• Sonic diffuser and radiant collar for better off-axis frequency response
• High-quality mounting hardware included

Specifications:

• Crossover Type: Butterworth
• DC Resistance (Re): 2.3 ohms
• Filter Type: HP
• System Frequency (Fs) Response: 60-20k Hz
• XO Frequency: 5250 Hz
• Slope (Octave): -6 dB
• Tweeter Voice Coil Diameter: 20 mm
• Midrange Voice Coil Diameter: 35 mm

In the Box: PNW-65 Speaker, Manual

Dimensions:

• Overall Diameter (w/o Grille): 6.5 in / 166 mm
• Cut Out Diameter: 5.59 in / 142 mm
• Mounting Depth: 2.36 in / 60 mm
• Height (w/o Grille): 0.20 in / 5.2 mm
• Height (w/ Grille): 0.86 in / 22 mm
• Motor Diameter (w/ Cover): 4.6 in / 117 mm
• Grille Overall Diameter: 7.05 in / 179 mm
