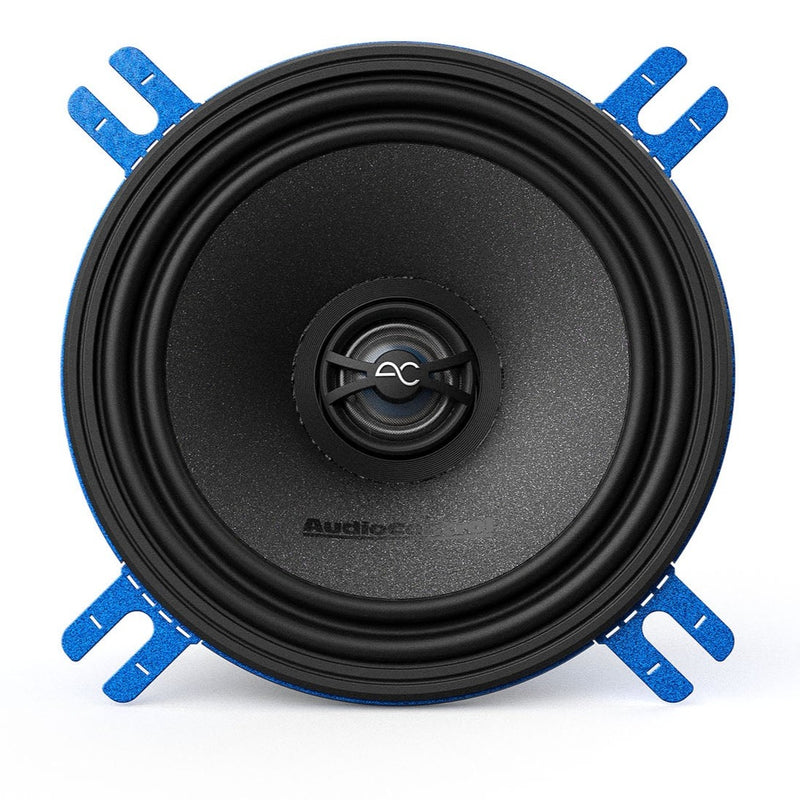

AudioControl PNW-4 PNW Series 4″ High-Fidelity Coaxial Speakers – 50W RMS / 100W Peak
Experience the PNW Series from AudioControl
With over 45 years of expertise in engineering top-quality audio components, AudioControl presents the PNW series speakers, offering a wild new auditory adventure. Transport yourself to the vibrant landscapes of the Pacific Northwest through your music when you pair AudioControl’s legendary amplifiers with the PNW series of speakers. Prepare for an unparalleled audio experience, unlike anything you've heard before.
Features:
- Edge-enhanced steel frame for added structural strength
- Black anodized voice coil former for superior heat dissipation
- Linear double-roll surround for precision cone movement
- Complex FEA-designed high-efficiency motor
- Rigid poly mica-coated cone for optimized sound reproduction
- Rear dampened hybrid silk dome tweeter for extended frequency response
- Concentric point source design for a seamless transition from midrange to tweeter
- Sonic diffuser and radiant collar for better off-axis frequency response
- High-quality mounting hardware included
Specifications:
- Crossover Type: Butterworth
- DC Resistance (Re): 2.6 ohms
- Filter Type: HP
- System Frequency (Fs) Response: 75-20k Hz
- XO Frequency: 5900 Hz
- Slope (Octave): -6 dB
- Midrange Voice Coil Diameter: 25 mm
In the Box: PNW-4 Speaker, Manual
Dimensions:
- Overall Diameter (w/o Grille): 5.23 in/ 133 mm
- Cut Out Diameter: 3.60 in/ 91.5 mm
- Mounting Depth: 1.66 in/ 42.2 mm
- Height (w/o Grille): 0.16 in / 4.1 mm
- Height (w/ Grille): 0.64 in / 16.5 mm
- Motor Diameter (w/ Cover): 2.96 in / 75.4 mm
- Grille Overall Diameter: 5.40 in / 137 mm
Weight: 1 lb
SKU: AC-PNW4
UPC: 850038647452
