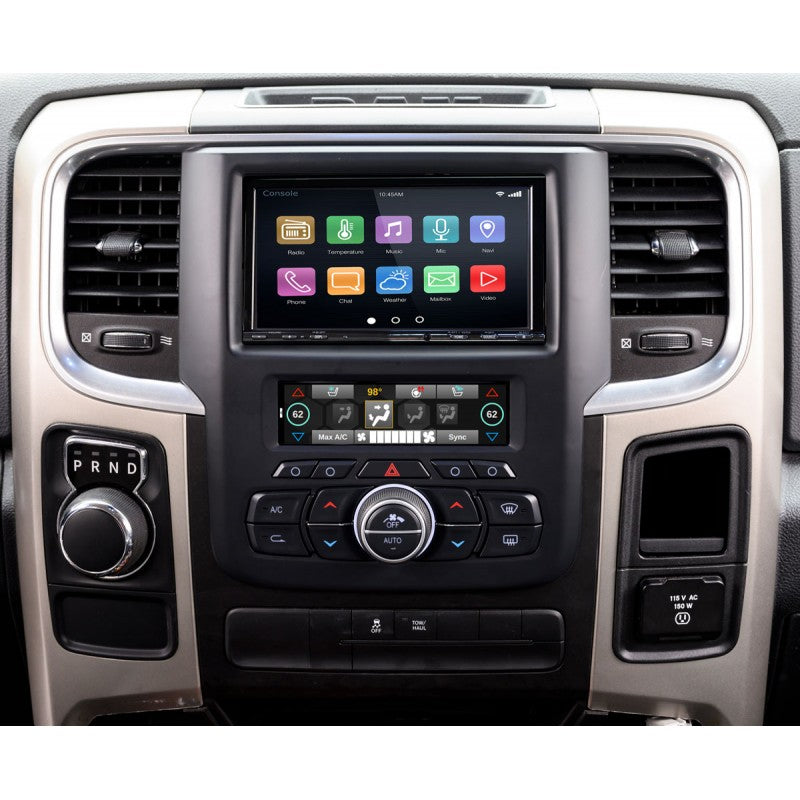

PAC Audio RPK4CH4101 RadioPRO Integrated Installation Kit with Integrated Climate Controls For Select RAM Trucks with 8" Display

This complete radio replacement solution provides everything needed to achieve the best possible installation of any aftermarket radio, including factory-matched buttons, knobs, and graphical user interface. Giving the RAM owner a familiar user experience with the benefits of added features provided by the 5.2” LCD touchscreen. Easily swipe between climate control, camera selection, vehicle settings, performance gauges, and vehicle information.

Features:

Factory-matched dash kit with a complete set of climate control knobs and buttons (no need to use OE parts)

4 Programmable hard buttons with proximity-sense technology for quick access of cameras and more

Supports up to 5 driver safety cameras with the use of RPA-16P5V, sold separately

Accommodates a single-DIN or double-DIN aftermarket radio

Multi-purpose 5.2” touchscreen LCD display for:

Climate control

Camera selection

Vehicle settings

Performance gauges

Vehicle information

Feature setup for installer use

Retains:

Steering wheel control functions

Reverse camera (if equipped)

Bed camera** (if equipped, requires RPA-16P5V)

Amplified audio system (if equipped)

Vehicle settings through 5.2” touchscreen

What's in the Box:

Main kit plastic with integrated touchscreen

All climate control buttons and knobs

Radio replacement interface

Plug-in vehicle connection harness

Radio connection harness

Reverse camera input harness

USB cable for connecting to OE hub

USB cable for use without OE hub

Chime speaker with bracket

Double DIN mounting hardware

Single DIN pocket

Antenna adapter

Factory Matched USB Hub (2 USB, HDMI, A/V Aux)

Disclosure:

Only compatible in vehicles equipped with the 8" screen

Does not retain the following features in the vehicle's cluster display:

Compass

Phone Pop-Ups

Navigation Pop-Ups

Clock

Does not retain the following uConnect features

WiFi Hotspot

SOS/Assist

Does not retain factory amplifiers Speed Controlled Volume

If vehicle is equipped with a cargo camera or more cameras are being added beyond a reverse camera, PAC part number RPA-16P5V must be used
