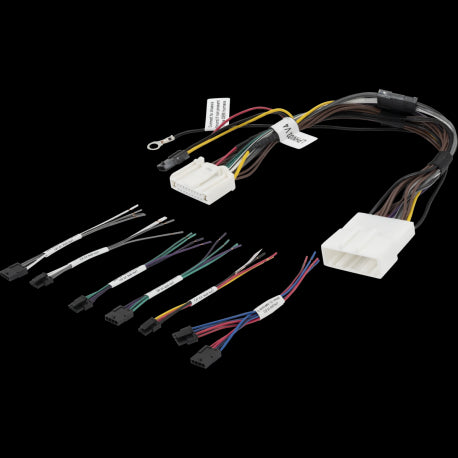

PAC LPHNI03 | LocPro Advanced T-Harness – Add Aftermarket Amp, LOC or Processor to 2007+ Chevy/Nissan/Subaru
PAC's LPHNI03 LocPro Advanced T-harness makes amplifier installation a lot easier by giving you access to the speaker-level output signals from your Nissan, Mazda, Subaru, Suzuki, or Chevrolet factory radio. You can use this T-harness to connect to an amplifier or signal processor with speaker-level inputs, or to a line output converter with an amp.
Features:
- T-harness for adding an amp to a non-amplified system
- Fits select 2007-up Nissan, Mazda, Subaru, Suzuki, or Chevrolet vehicles
- 4 channels of speaker-level signals from factory radio
- Low-power 12-volt, ground, accessory, and remote turn-on connections in-line fuse on 12V power wire
- Remote turn-on signal output with butt connector
- Works with PAC LocPro Advanced line output converters, and most amps and sound processors with speaker-level inputs
Vehicle Compatibility: The LPHNI03 harness is compatible with factory radio systems without an outboard amplifier in select Chevrolet, Mazda, Nissan, Subaru, and Suzuki vehicles.
Can be used with: LocPRO Line Output Converters, Audiocontrol Amplifiers, Audiocontrol DSPs

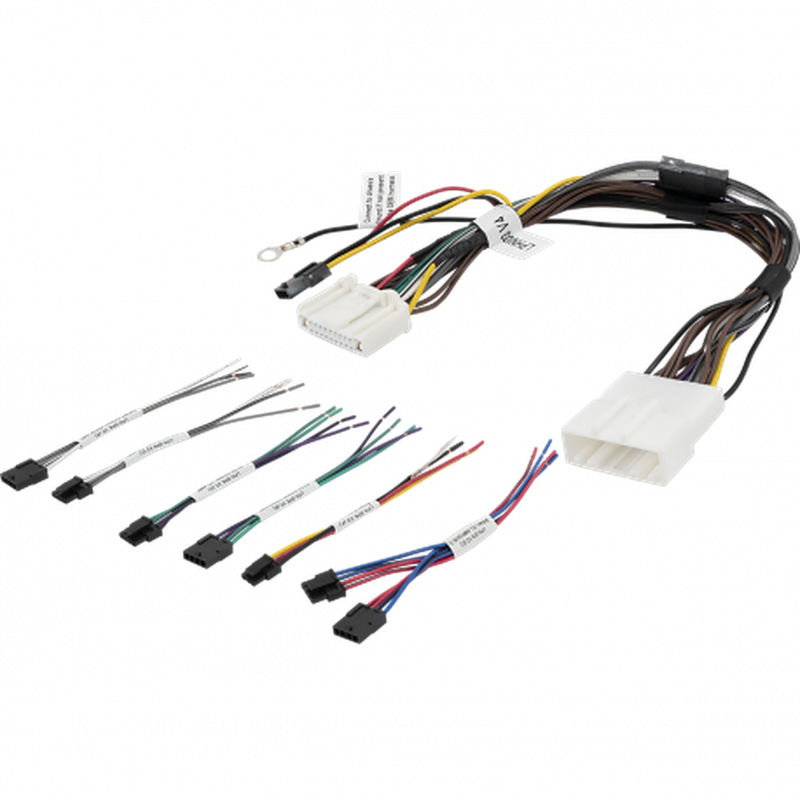

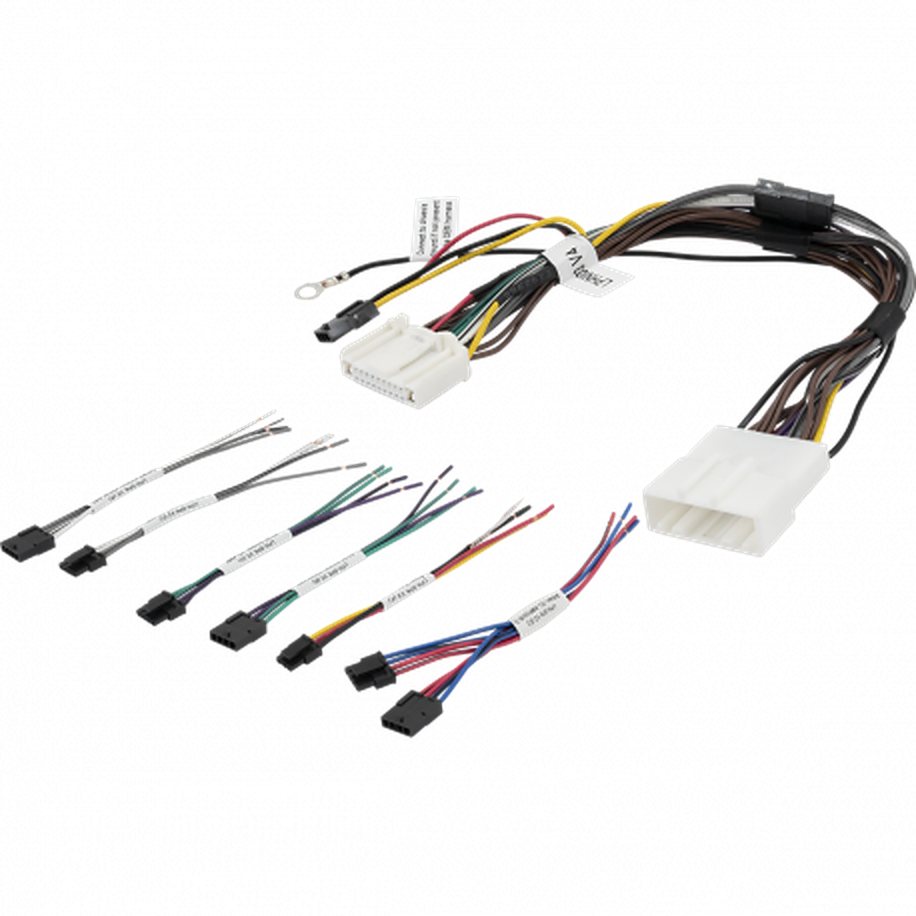

What's in the Box:
- 8" Main wiring harness
- LPH-SPK V2-A Harness (front signal from amp)
- LPH-SPK V2-B Harness (rear signal from amp)
- LPH-SPK V2-C Harness (front signal to amp)
- LPH-SPK V2-D Harness (rear signal to amp)
- LPH-SPK V2-E Harness (sub signal to amp T-harness)
- LPH-SPK V2-F Harness (power extension)
- Instruction guide
Note: The power and ground wires in this harness will only support a low-current accessory, like an active line output converter or digital signal processor, and should not be used to power an amplifier.
| Specification | Details |
|---|---|
| Model Number | LPHNI03 |
| Product Name | LocPro Advanced T-Harness |
| Type | Stereo/Receiver T-harness |
| Compatibility | Select non-amplified Nissan, Infiniti, Subaru, Chevrolet (20‑pin systems; 2002–2020) |
| Features | Provides 4‑channel speaker‑level outputs; fused 12 V power/ACC/remote leads; subwoofer pigtail; supports line-output converters or amps |
| Dimensions (L×W×H) | ~8.38″ × 8.38″ × 1″ |
| Weight | ~0.4 lb |
| Warranty | 1 year parts |
| UPC | 609098900508 |
