PAC Audio PAC-AP4FD21 Amplifier Integration Interface for Select Ford vehicles with 8.4” Radio and Factory Sony Amplified System

AmpPRO simplifies the installation of upgraded amplifiers in data-bus controlled amplified sound systems. With AmpPRO, you can improve audio performance while keeping an original radio’s fit, finish and features.

BENEFITS:

• Simplifies amplifier installation
• Prevents need for summing and DSP devices
• Provides factory sound system upgrade solution

FEATURES:

• Can be used to upgrade the entire sound system or just part of it thanks to retention of original amplifier
• Enables the addition of a subwoofer system to the original sound system
• Variable volume, fade, balance, bass, mid and treble audio settings
• Front, rear, sub preamp outputs (5 volt RMS)
• Provides flat audio output for a solid audio foundation
• Customized OE bass, mid and treble center frequency selection
• Retains Sync, Bluetooth audio and all warning chimes
• Plug & play installation
• Sub level controller
• Optional TOSLINK optical output (APA-TOS1 sold separately)

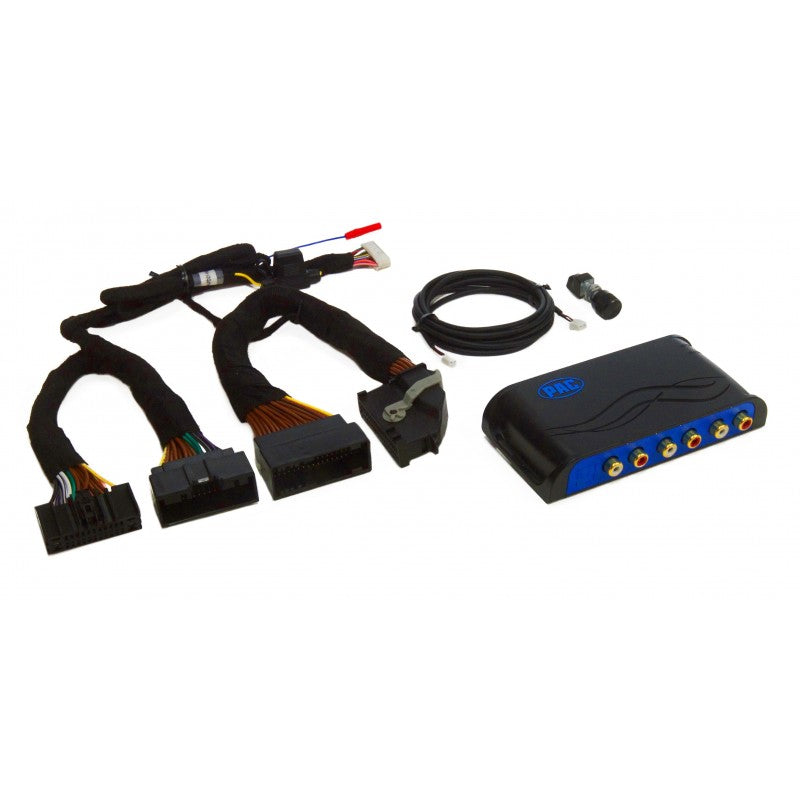

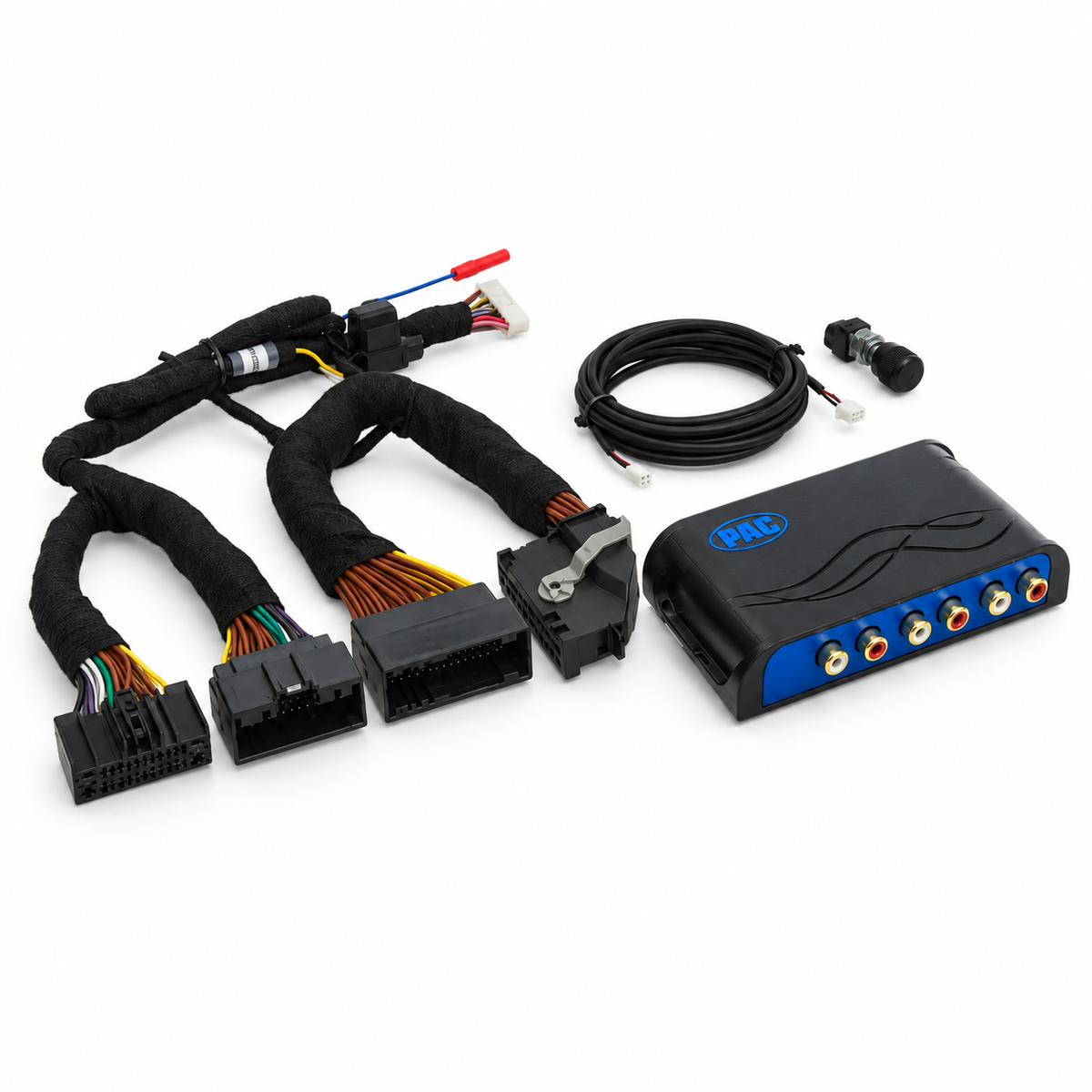

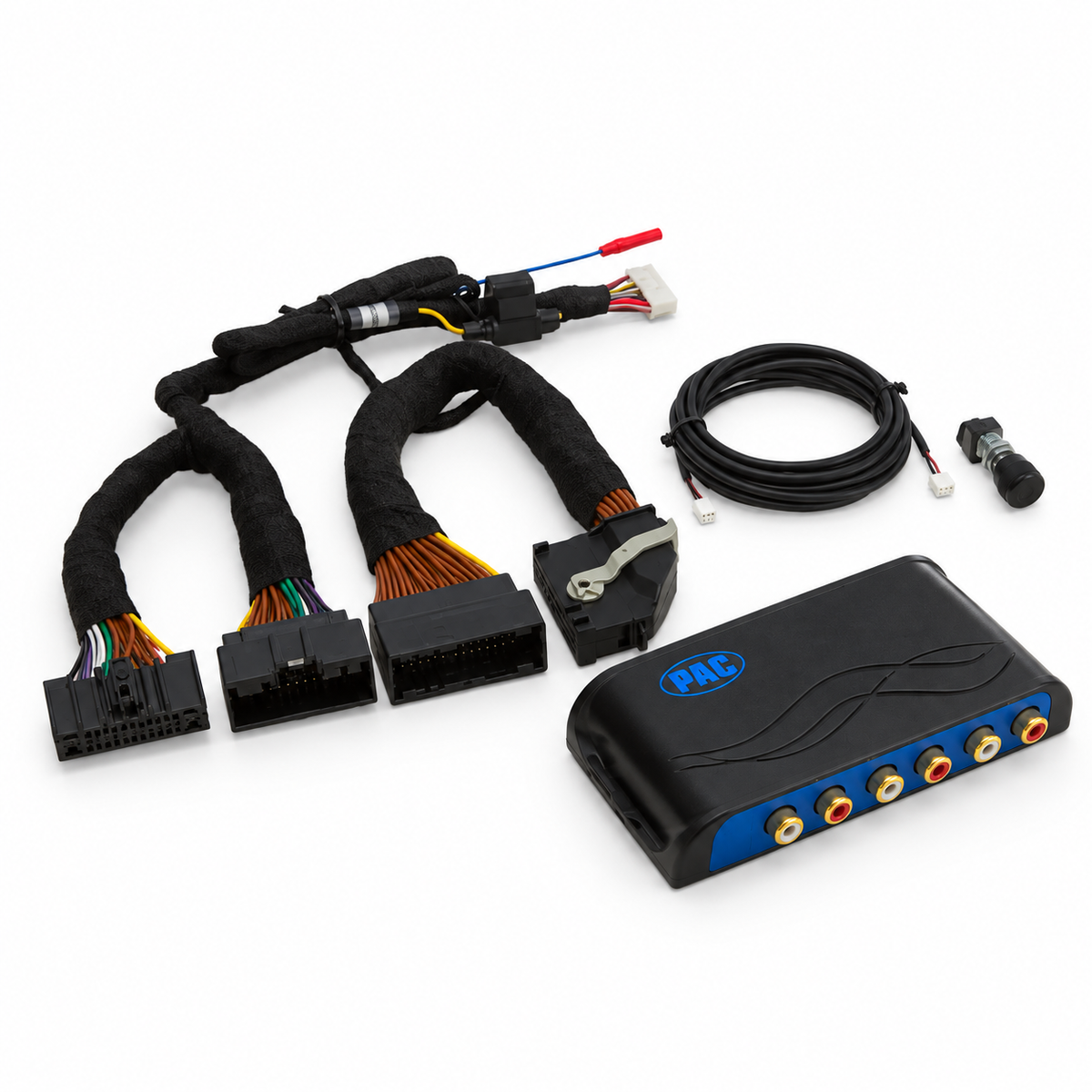

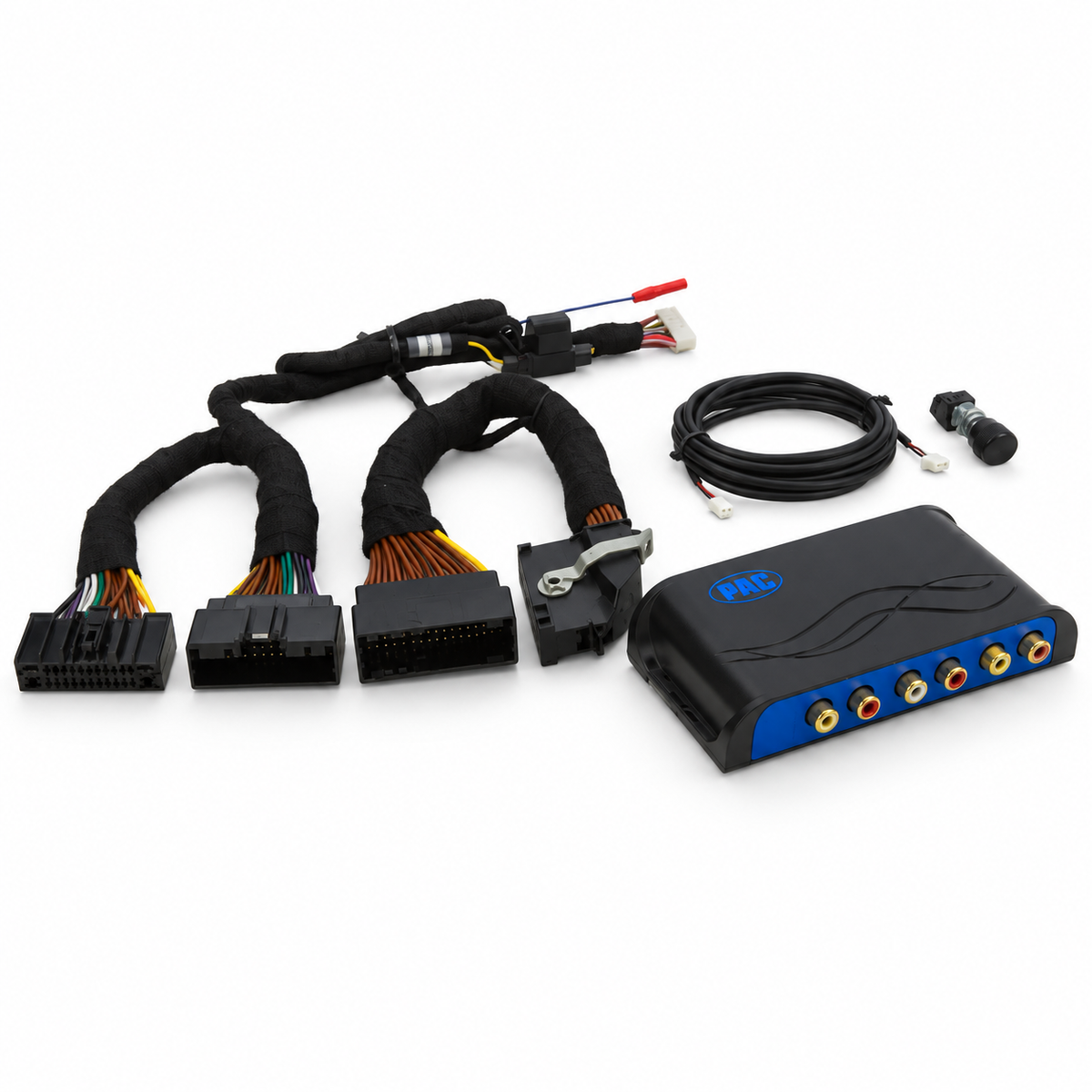

INCLUDES:

• AmpPRO module
• 24-pin and 54-pin harness (MS CAN) (Dual MS CAN)
• Bass knob
• Knob harness
• Manual
