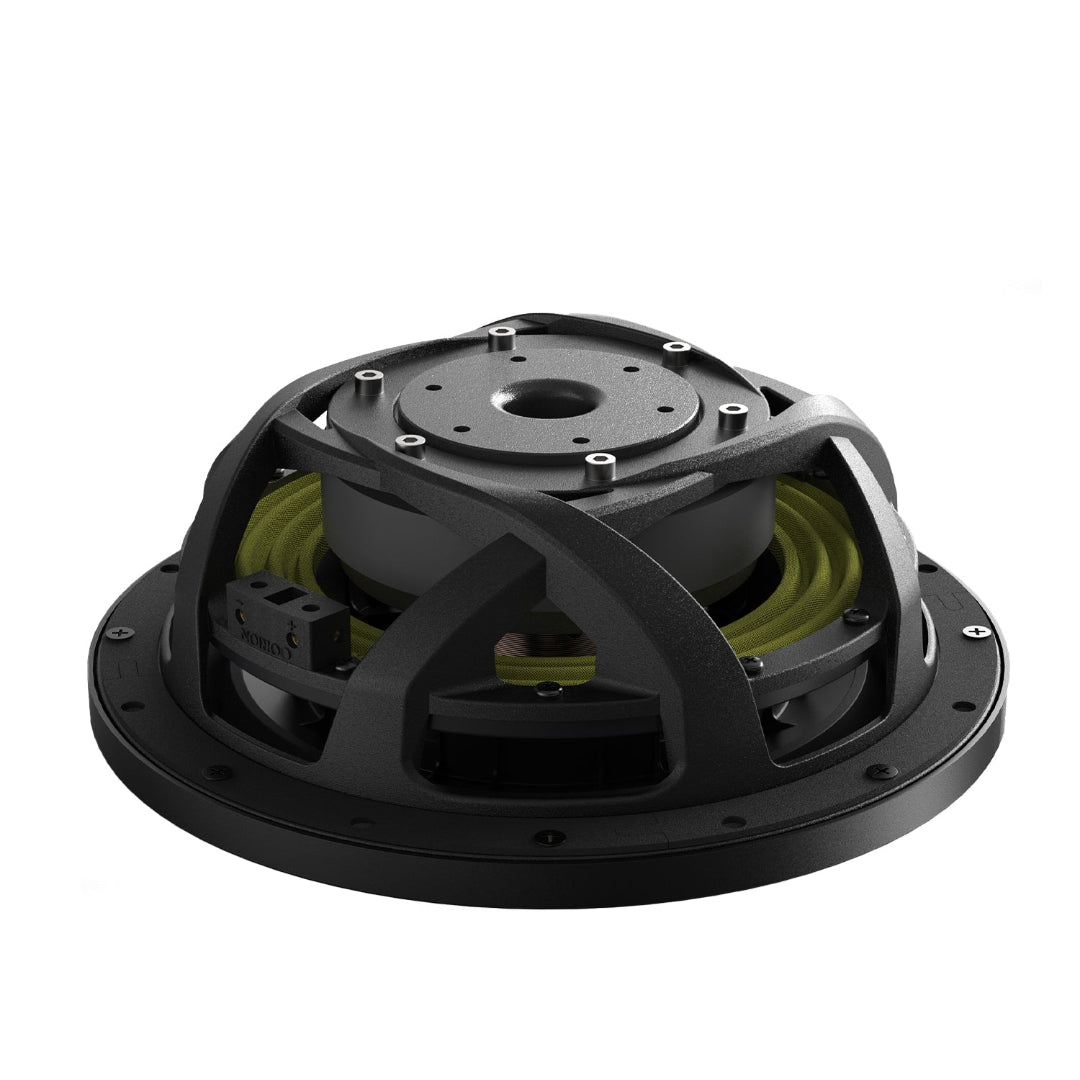

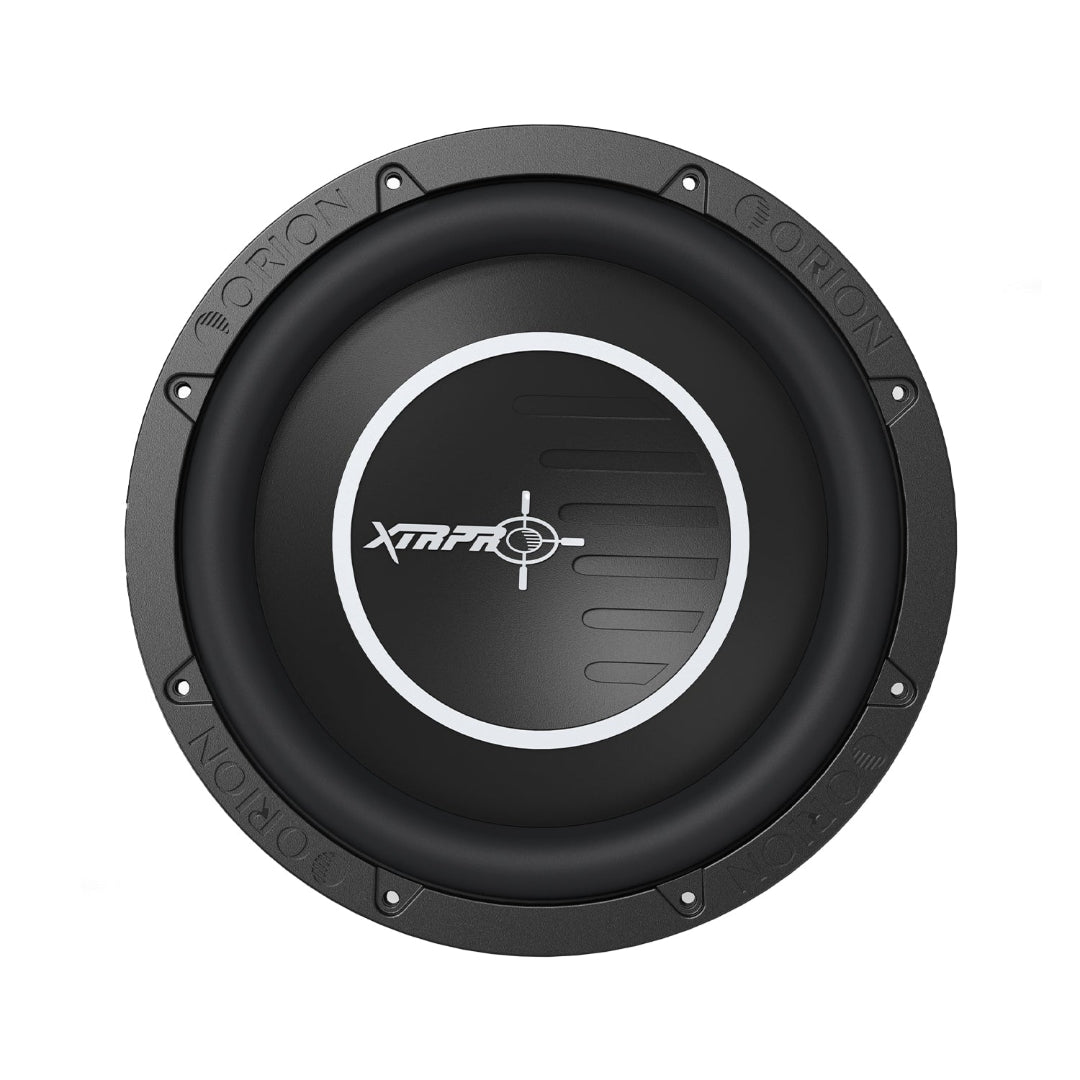

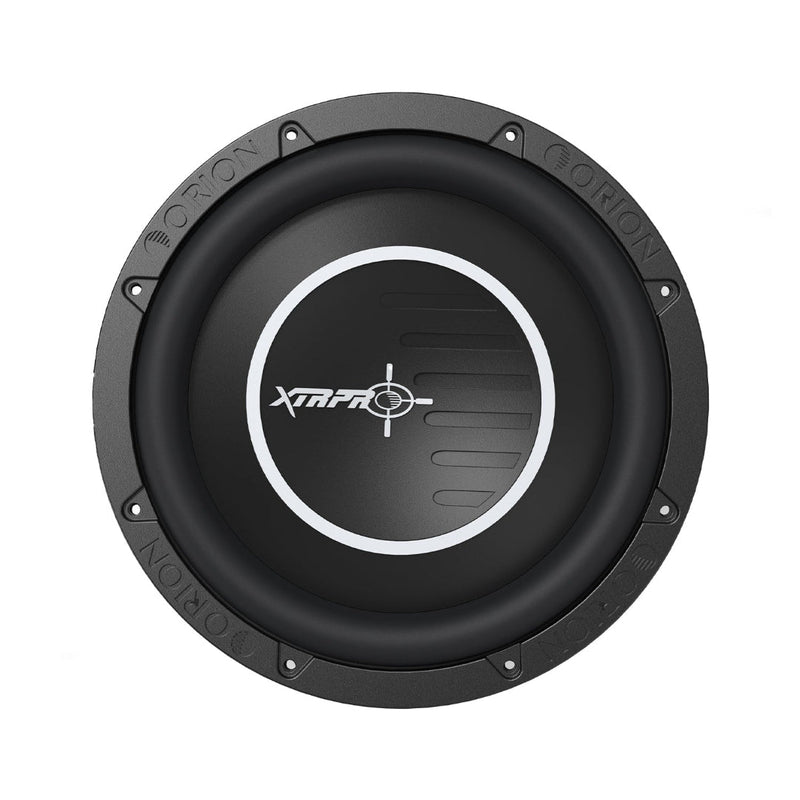

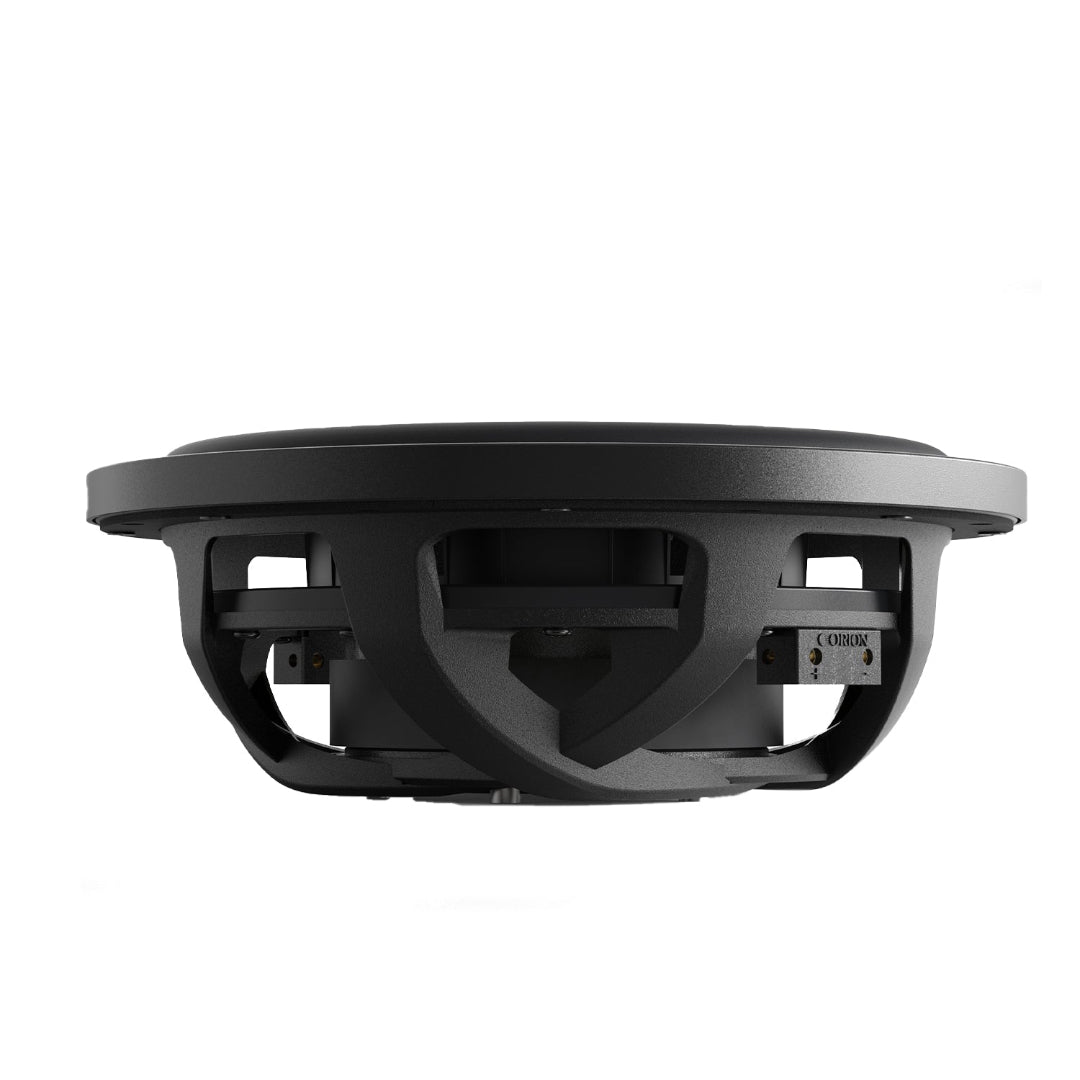

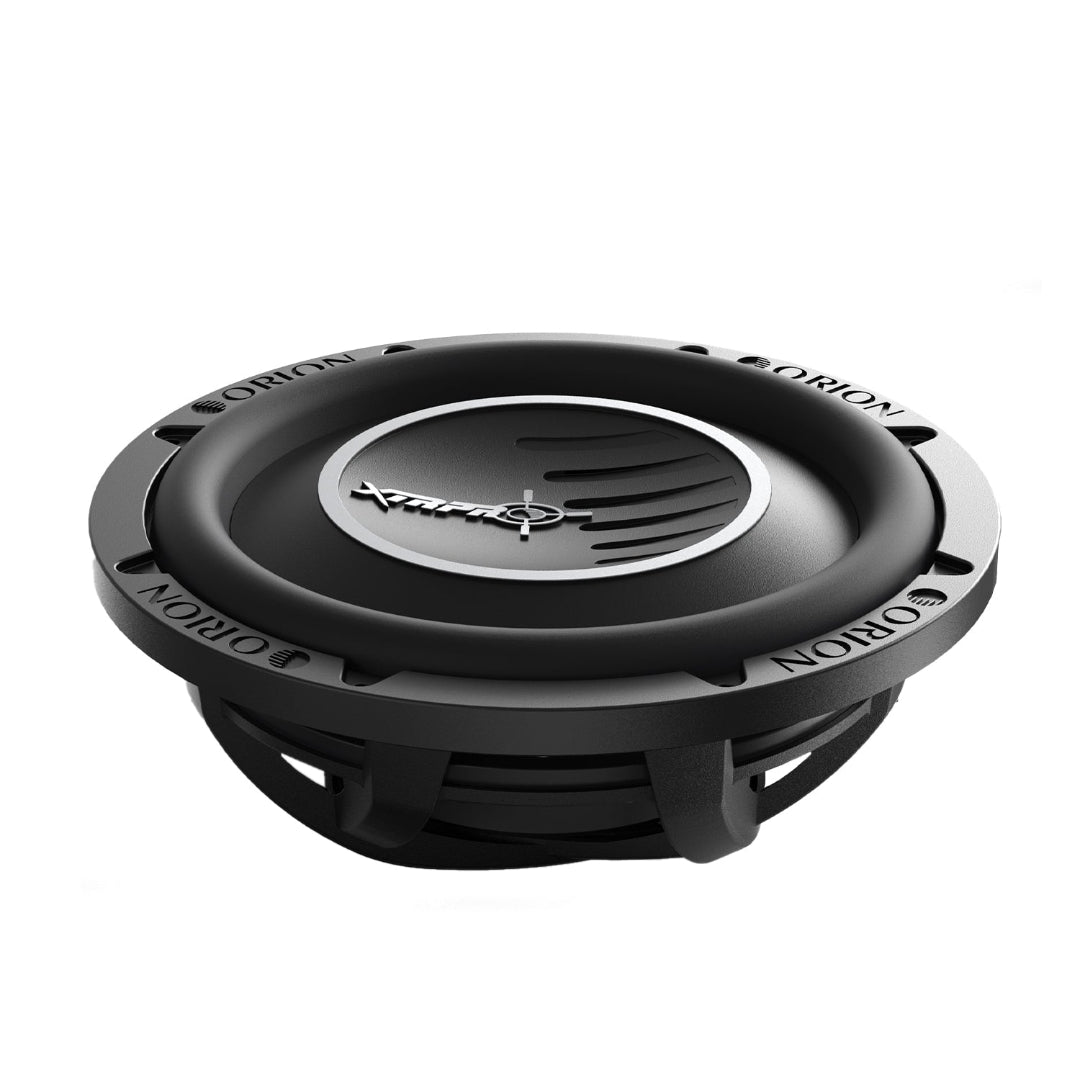

Orion XTRPRO-SW10D2 10" 600W RMS Shallow Subwoofer Dual 2‑Ohm | Bass Power
-
600W RMS / 2400W peak power handling
-
10" Dual 2‑Ohm shallow‑mount subwoofer with flexible DVC wiring
-
UV‑coated paper & fiber blend cone for durability
-
NBR surround for controlled excursion in shallow designs
-
Polypropylene dustcap for added cone rigidity
-
Ceramic magnet motor structure
-
Ultra‑shallow 3" mounting depth
-
Optimized for compact sealed enclosures
-
Built with proven Orion XTRPRO Shallow Series engineering
Specifications:
Subwoofer Size: 10 (Inches)
Voice Coil Configuration: Dual 2-ohm
Power Handling (Peak): 2400 Watts
Power Handling (RMS): 600 Watts
Sensitivity: 82 dB
Frequency Response: 20 Hz - 300 Hz
Dustcap Material: Polypropylene
Cone Material: UV Coated Paper / Fiber Blend Cone
Surround Material: NBR
Magnet Information: Ceramic
Mounting Depth: 3 (Inches)
Cutout Diameter: 9.21 (Inches)
Overall Diameter: 10.87 (Inches)
UPC: 818550019676
