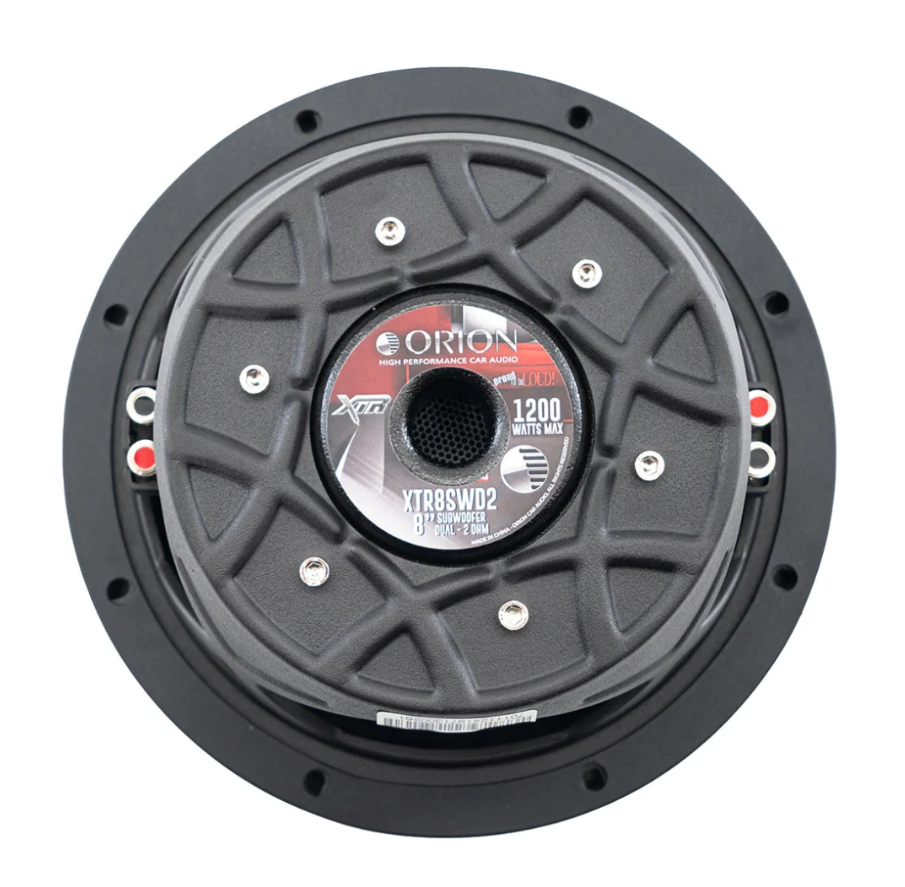

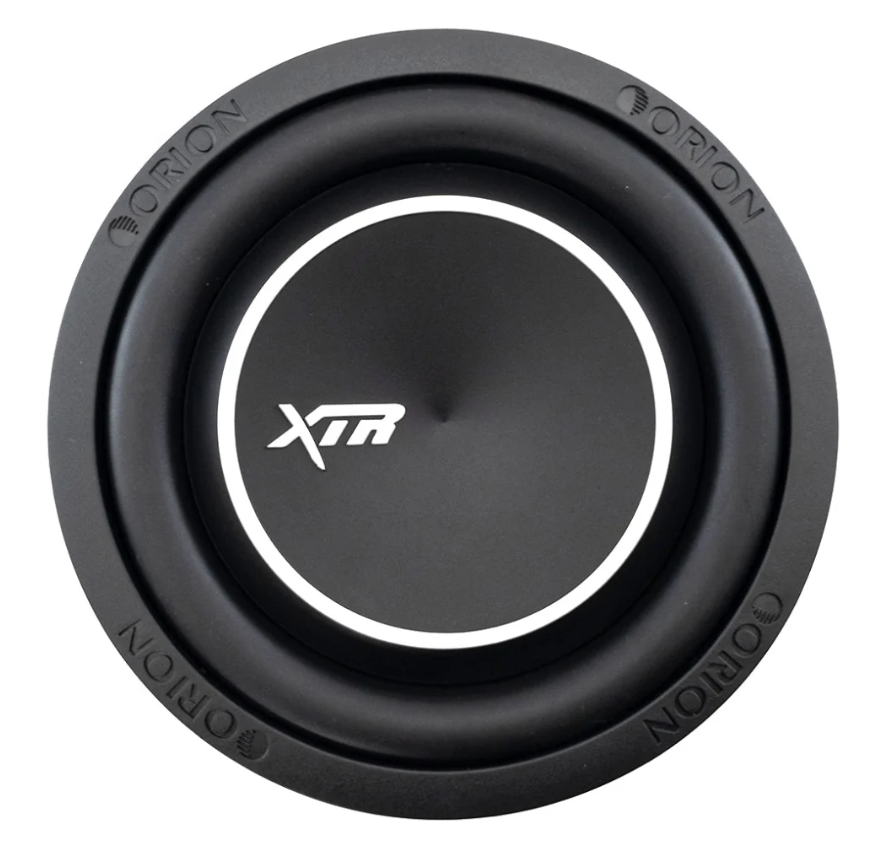

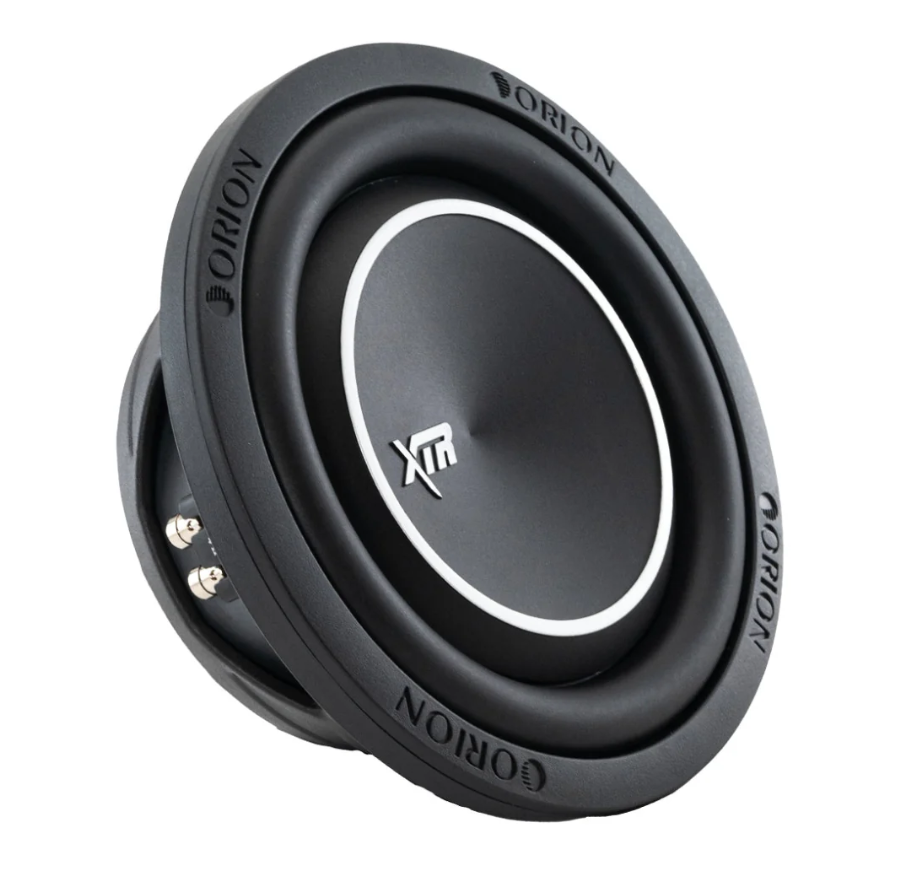

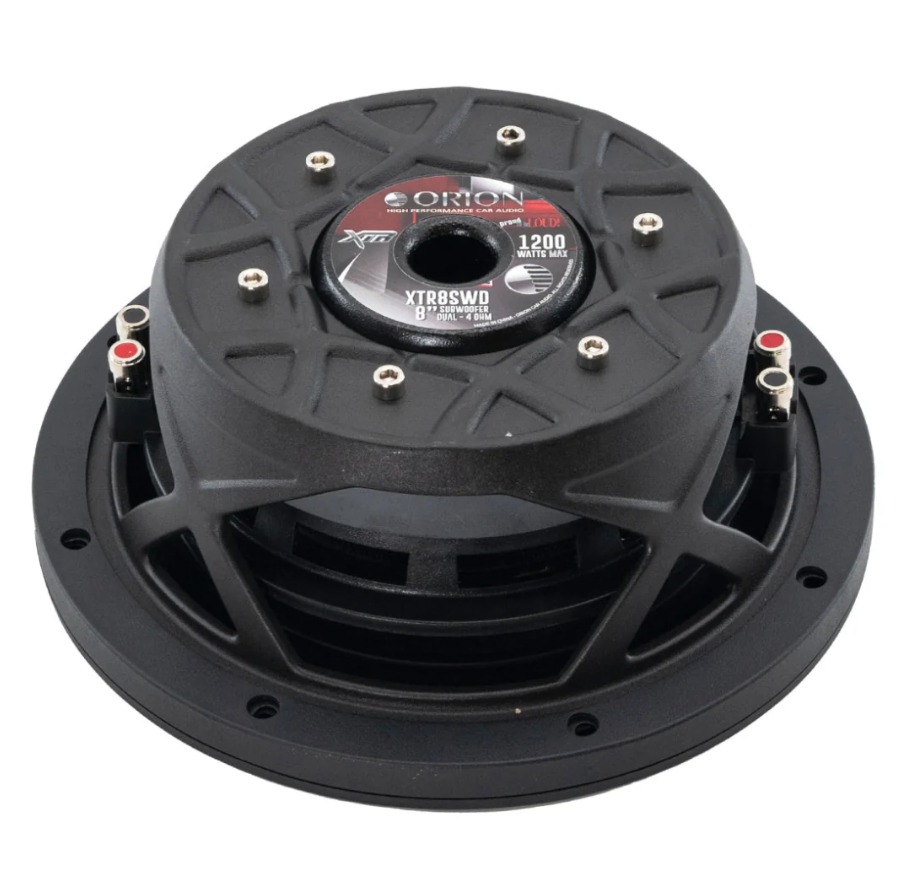

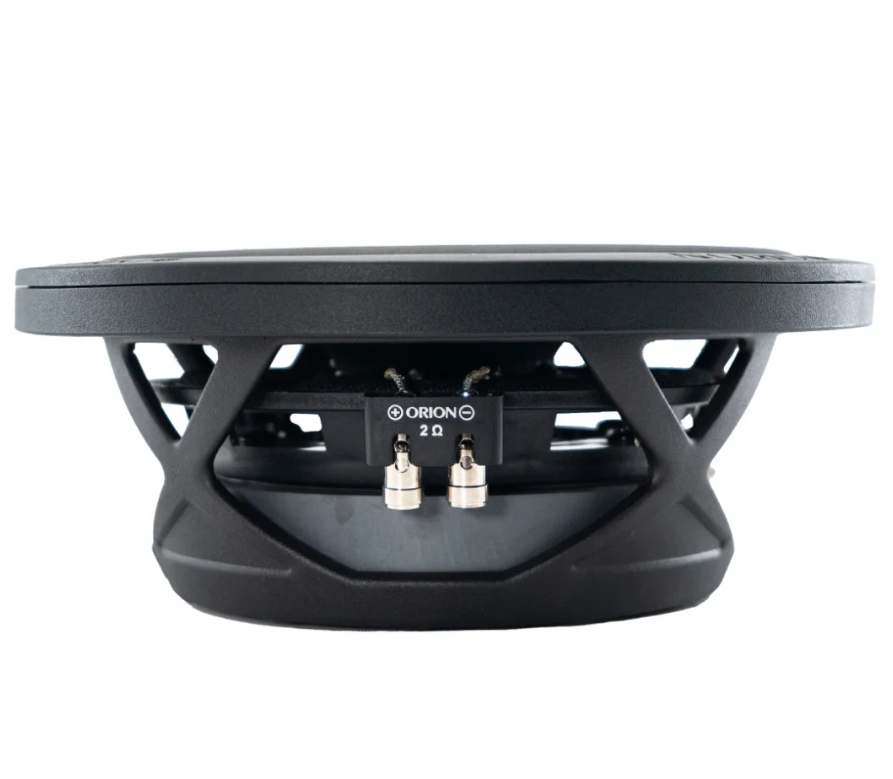

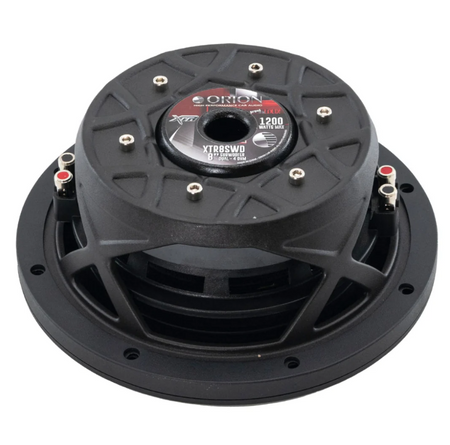

Orion XTR8SWD2 – 8 Inch Dual 2 Ohm Shallow Mount Subwoofer | 300W RMS Bass Power

When space is limited but powerful bass is still a priority, the Orion XTR8SWD2 8" Dual 2-Ohm Shallow Mount Subwoofer is designed to deliver. Its slim-profile construction makes it a practical solution for vehicles with limited room for a traditional subwoofer, including under-seat locations and custom shallow enclosures. Rated at 300 watts RMS and 1,200 watts peak power, the XTR8SWD2 offers solid bass output in a compact 8-inch design. Dual 2-ohm voice coils provide multiple wiring possibilities, giving installers greater flexibility when pairing the subwoofer with a compatible amplifier.

The XTR8SWD2 combines durable materials with a compact motor structure to produce accurate and responsive low frequencies. Its UV-coated paper and fiber blend cone works alongside an NBR rubber surround to maintain stable cone movement during operation, while the polypropylene dustcap adds support and protection to the assembly. A ceramic magnet supplies the motor strength needed for dependable performance. Measuring only 2.76" deep, this shallow-mount subwoofer makes it easier to add meaningful bass to vehicles and installations where every inch of mounting space matters.

Key Features

• High-Output 8" Shallow Mount Subwoofer – Delivers 300W RMS and 1,200W peak power handling
• Dual 2-Ohm Voice Coils – Provides flexible wiring configurations for different amplifier setups
• Ultra-Shallow Mounting Design – Features a compact 2.76" mounting depth for tight installation spaces
• UV-Coated Paper/Fiber Blend Cone – Designed for durability and responsive bass reproduction
• NBR Rubber Surround – Provides controlled cone movement and long-term durability
• Polypropylene Dustcap – Reinforces the cone structure for added stability
• Ceramic Magnet Motor – Provides reliable magnetic performance and efficient bass output
• 2" Copper-Wound Voice Coils – Designed for enhanced durability and reliable performance
• Heavy-Gauge Stamped Steel Basket – Increases structural integrity and helps reduce unwanted vibration
• Nickel-Plated Push Terminals – Provides secure and reliable speaker connections
• Compact Enclosure Compatible – Optimized for space-conscious sealed enclosure applications
• XTR Series Performance – Built for compact, high-quality car audio systems

Specifications

• Model: XTR8SWD2
• Series: XTR Shallow
• Subwoofer Size: 8"
• Voice Coil Configuration: Dual 2-Ohm
• Power Handling RMS: 300 Watts
• Power Handling Peak: 1,200 Watts
• Sensitivity: 83 dB
• Frequency Response: 40–300 Hz
• Cone Material: UV-Coated Paper / Fiber Blend
• Surround Material: NBR Rubber
• Dustcap Material: Polypropylene
• Magnet: Ceramic
• Mounting Depth: 2.76" (70 mm)
• Cutout Diameter: 7.09" (180 mm)
• Overall Diameter: 8.58" (218 mm)

Package Includes

• 1 × Orion XTR8SWD2 8" Dual 2-Ohm Shallow Mount Subwoofer
• 1 × Owner's Manual
• Mounting Hardware

SKU: ORI-XTR8SWD2
UPC: 818550019713
