Orion XTR10US 10" Underseat Powered Subwoofer with Built-In Amp
Orion XTR10US 10" Underseat Powered Subwoofer offers deep, precise bass in a compact design, featuring a built-in 300W RMS amplifier, bass boost, phase switch, low-pass filter, and wired remote for easy underseat car audio installation.
Features:

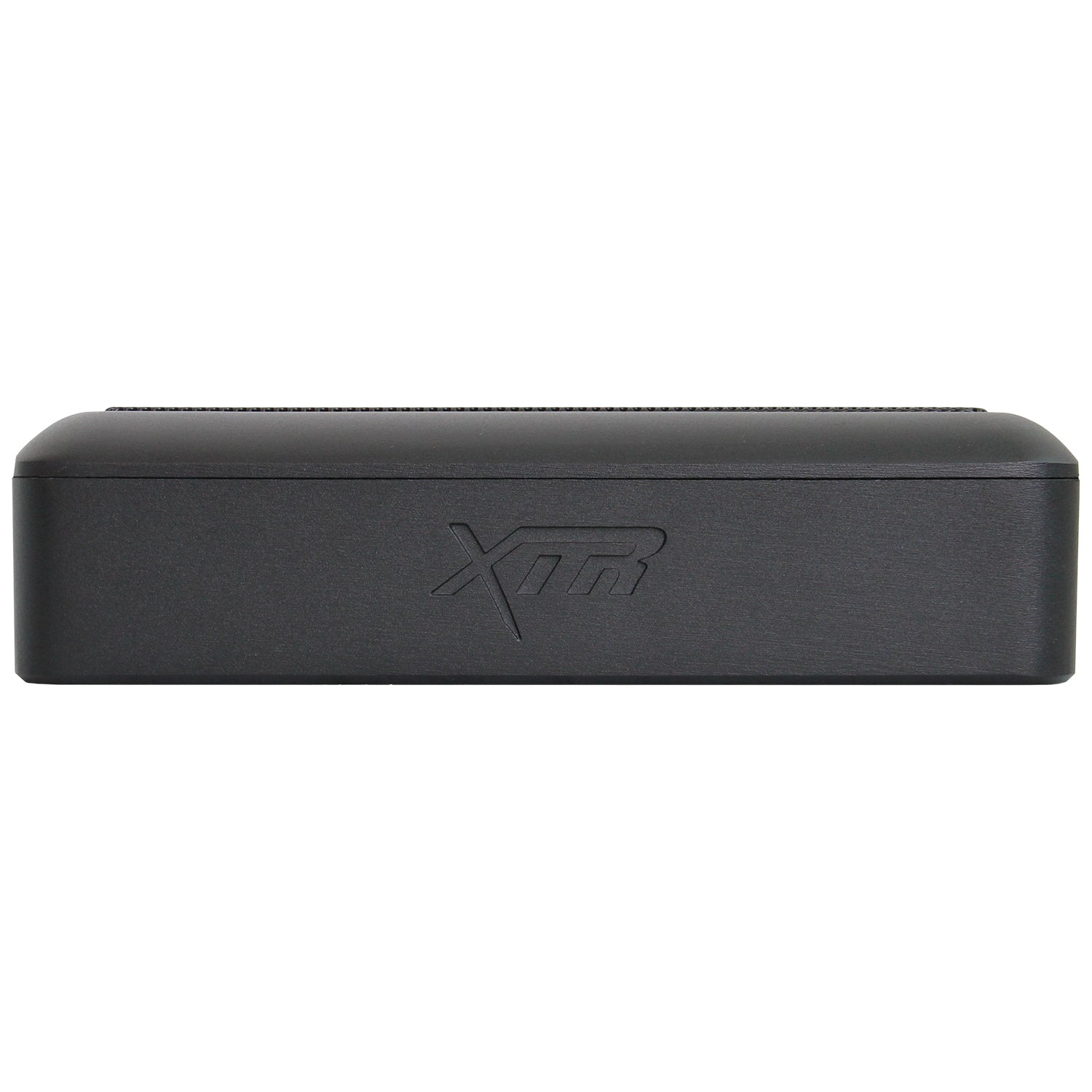

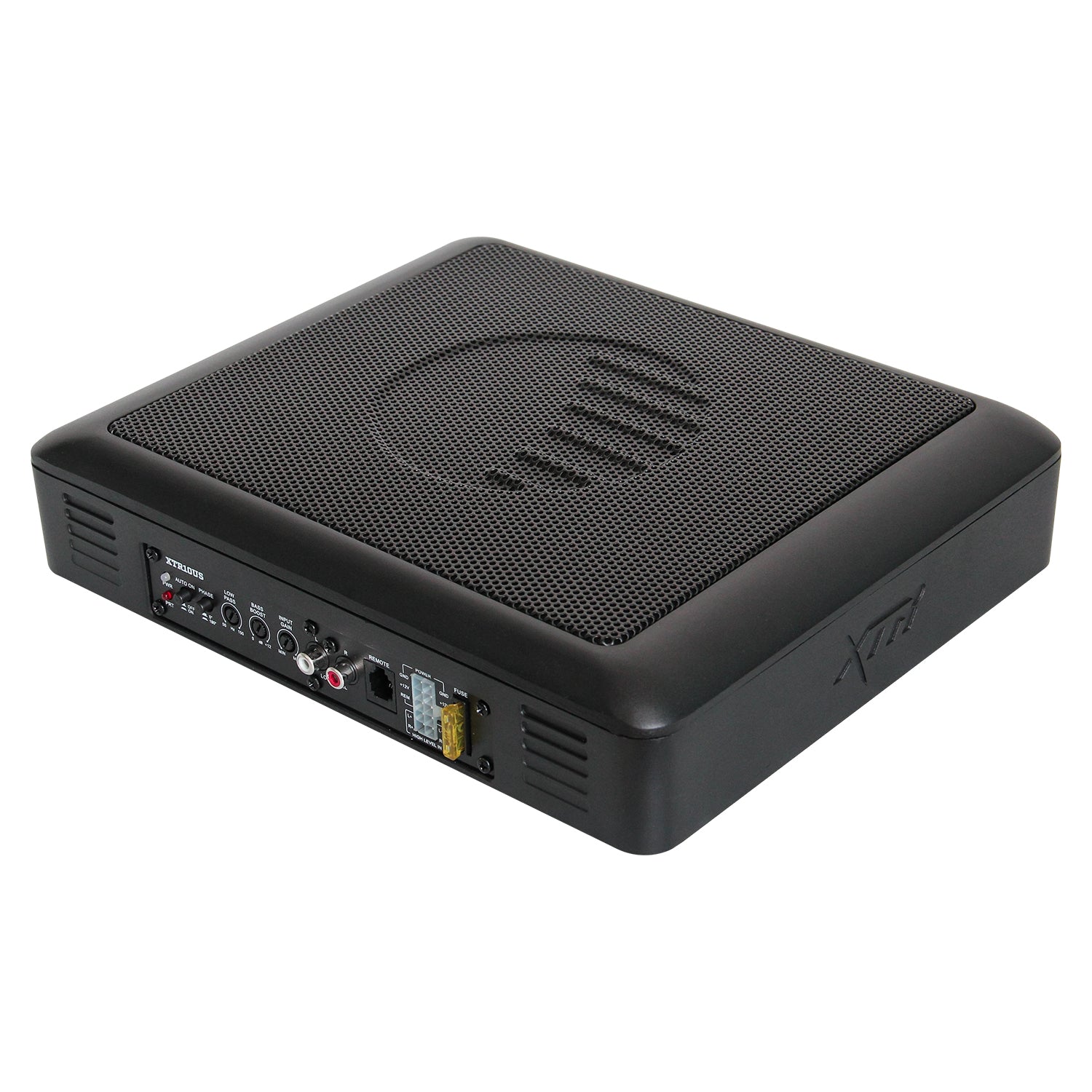

- Ultra-Compact Enclosure: Fits under seats or behind panels, delivering powerful bass without taking up space.
- Built-In 300W RMS Amp: Optimized for the woofer with up to 1200W peak output for tight, controlled bass.
- Adjustable Bass Controls: Bass boost (0–12 dB), low-pass filter (50–150 Hz), and phase switch (0°/180°) for precise tuning.

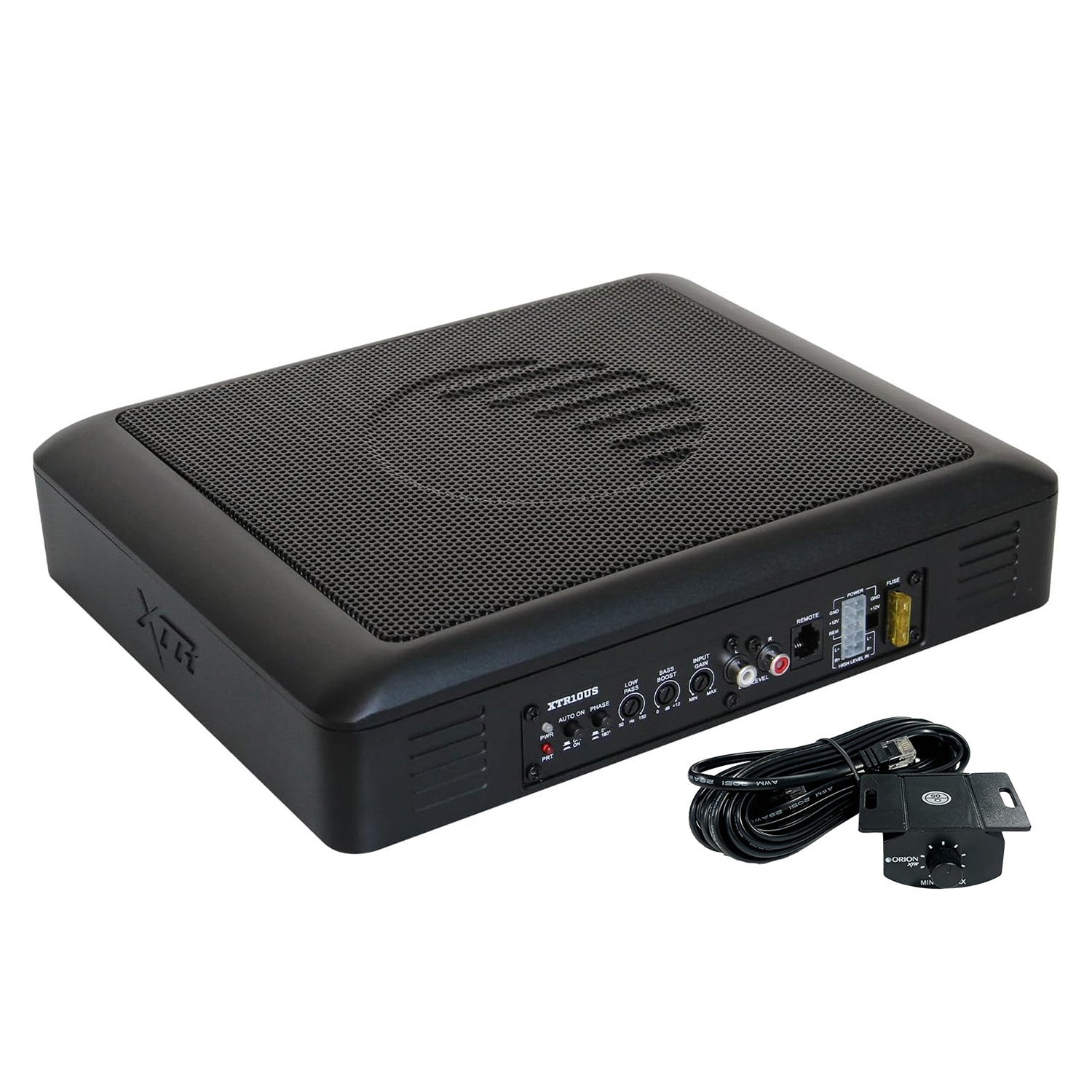

- Wired Remote Included: Adjust bass from the driver’s seat with the included remote knob.
- Protected Performance: 4-way protection, LED status lights, and auto-start for safe, reliable operation.
Specifications:
- Speaker Size: 10”
- Power Handling (RMS): 300 Watts
- Power Handling (Peak): 1200 Watts
- Bass Boost: 0 – 12 dB
- Low Pass Filter: 50 – 150 Hz
- Frequency Response: 30 Hz – 150 Hz
- Signal to Noise Ratio: 90 dB
- Phase Switch: 0° / 180°
- Dimensions (inches): 11.81” x 9.65” x 2.56”

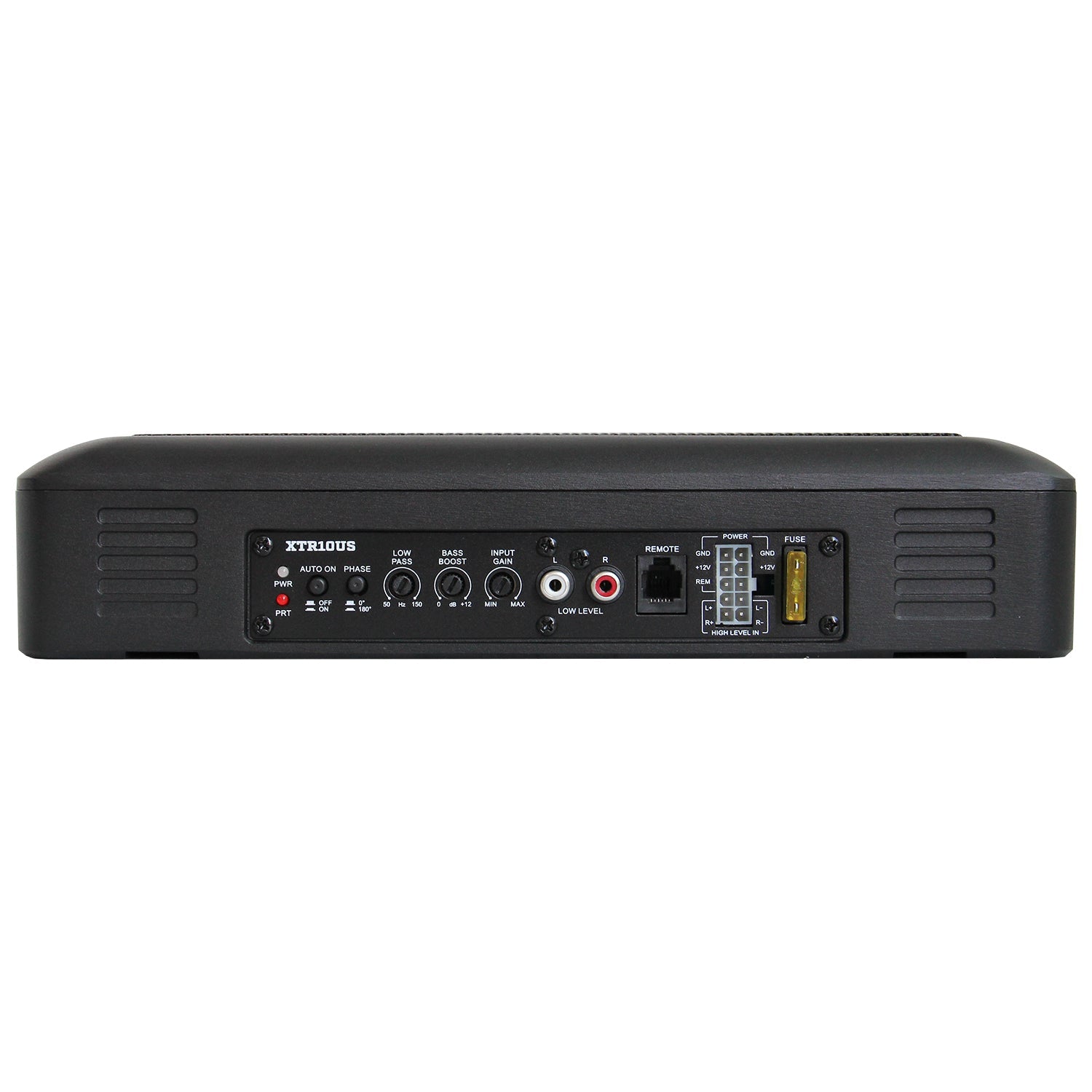

- Inputs: RCA Input / High-Level Input
- Controls: Remote Control for Subwoofer Level
- Power Supply: P.W.M. MOSFET
- Protection: 4-Way System (thermal, overload, short, DC offset)
- Illumination: Blue / Red LED Indicators
UPC: 818550010291
