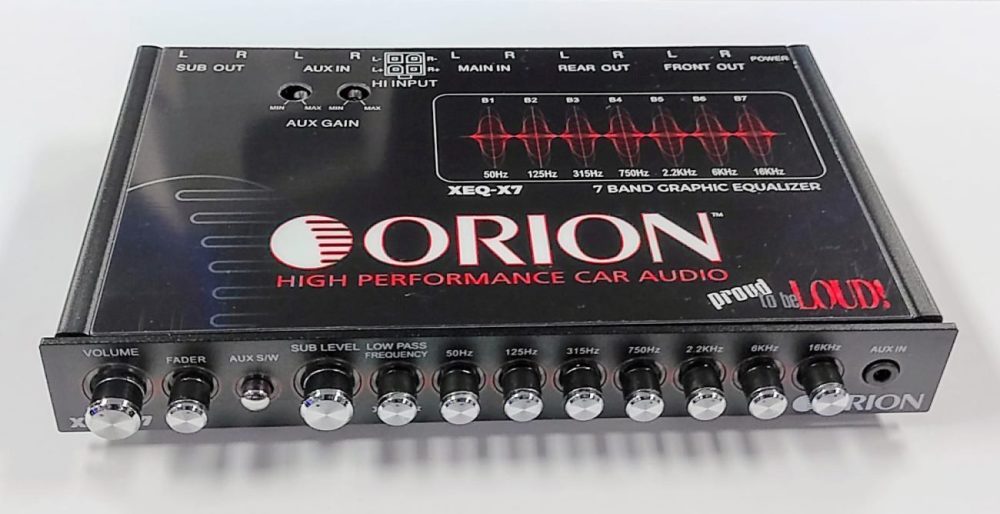

Orion XTR XEQ-X7 7-Band Graphic Equalizer w/ Front AUX Input
Massive Power & Clarity
Superior Performance
Advanced Technology
Premium Quality
YOU MIGHT ALSO NEED
The Orion XTR XEQ-X7 7-Band Graphic Equalizer is a versatile and compact audio enhancement tool designed for car audio enthusiasts. It features a 7-band graphic equalizer that allows precise sound customization across a wide frequency range, ensuring optimal audio performance. The front AUX input provides easy connectivity for external devices, while the subwoofer level control enables fine-tuning of bass output. With three selectable inputs and variable low pass frequency control, this equalizer offers flexibility and detailed control over your audio system. Its compact design fits conveniently in a half-DIN slot, making it suitable for various car installations, perfect for those seeking superior sound quality and control in their vehicle.
Features:
- Front Auxiliary Input
- Subwoofer Level Control
- 3 Selectable Inputs Main/Aux
- Low-Level or Hi-Level Input
- Variable Low Pass Frequency Control
Specifications:
Frequencies – 50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6kHz, 16kHz
Boost/Cut – 12dB
S/N Ratio – 83dB
Frequency Response – 8Hz – 140kHz + /-1dB
Maximum output voltage – 8V
THD – 0.01%
Input Sensitivity (RCA) – <3.6V
Input Sensitivity (High) – <10.8V
Input Impedance – 20K Ohms
Output Impedance – 1K Ohms
Stereo Separation – 73dB/1kHz
Operating Voltage – 11V – 15V Negative Ground
Size (WxDxH) – 7″ x 4 1/4″ x 1″
| Specification | Detail |
|---|---|
| Product Name | Orion XTR XEQ‑X7 7‑Band Graphic Equalizer w/ Front AUX Input |
| UPC | 818550019942 |
| Bands & Frequency Range | 7 bands: 50 Hz, 125 Hz, 315 Hz, 750 Hz, 2.2 kHz, 6 kHz, 16 kHz |
| Boost/Cut Range | ±12 dB |
| S/N Ratio | ≥83 dB |
| Frequency Response | 8 Hz – 140 kHz ±1 dB |
| Max Output Voltage | 8 V |
| THD | 0.01% |
| Inputs | High‑level and RCA; Front 3.5 mm AUX |
| Outputs | 3 RCA outputs (Front, Rear, Subwoofer) |
| Subwoofer Control | Dedicated level and variable low‑pass filter |
| Input Impedance | 20 kΩ (Low), <10.8 V (High‑level) |
| Output Impedance | 1 kΩ |
| Stereo Separation | 73 dB @ 1 kHz |
| Operating Voltage | 11–15 V DC (negative ground) |
| Dimensions (W×D×H) | 7″ × 4¼″ × 1″ |
