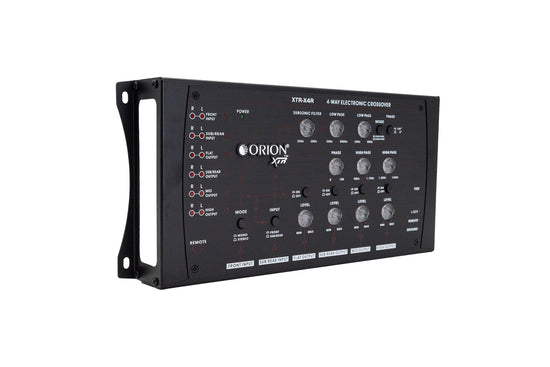

Orion XTR-X4R 4-Way Electronic Crossover Network with Remote Bass Boost
Introducing the Orion XTR-X4R 4-Way Electronic Crossover, a next-level solution for audiophiles who demand superior sound quality, precision control, and complete customization in their car audio systems. Engineered with the most discerning listeners in mind, this high-performance 4-way crossover is designed to deliver crystal-clear, precision-tuned sound across all frequency ranges, allowing for optimal separation between your subwoofers, midbass, midrange, and tweeters. Whether you’re a casual listener or a dedicated car audio enthusiast, the XTR-X4R ensures every detail of your music is reproduced with incredible clarity, depth, and accuracy. From deep, distortion-free bass to rich midrange tones and crisp, detailed highs, the XTR-X4R provides the flexibility to customize each frequency band to match your specific setup.
Precision-engineered components ensure exceptional sound quality, with minimal signal loss and maximum audio fidelity, so you can get the most out of every track. It comes packed with advanced features such as remote subwoofer bass boost and level control, phase alignment adjustments, and variable frequency control for each channel. These features ensure that every element of your audio system is perfectly synchronized for an immersive and fully customizable listening experience. Boasts a sleek and durable design, making it easy to install and integrate into any car audio setup. Its compact size allows for flexibility in installation, while its sturdy build guarantees years of reliable use.
Features:
- 4-Way Electronic Crossover: Separates subwoofer, midbass, midrange, and high frequencies for precise sound reproduction
- Adjustable Frequency Points: Customize crossover frequencies for each channel to suit your setup

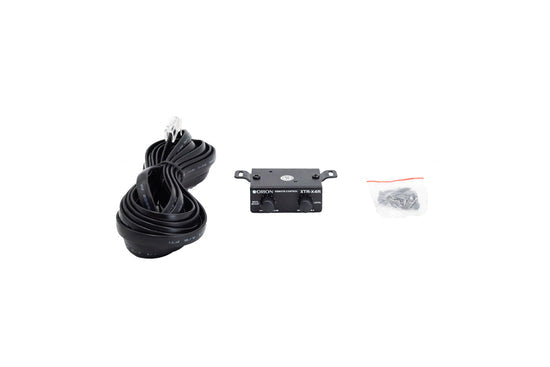

- Remote Subwoofer Control: Features bass boost and level adjustments for powerful, controlled bass
- High Signal-to-Noise Ratio: >90dB for clear, distortion-free sound quality
- Phase Alignment: Adjustable phase control for seamless speaker integration and enhanced sound staging
- Compact Design: Easy to install without taking up excessive space in your setup

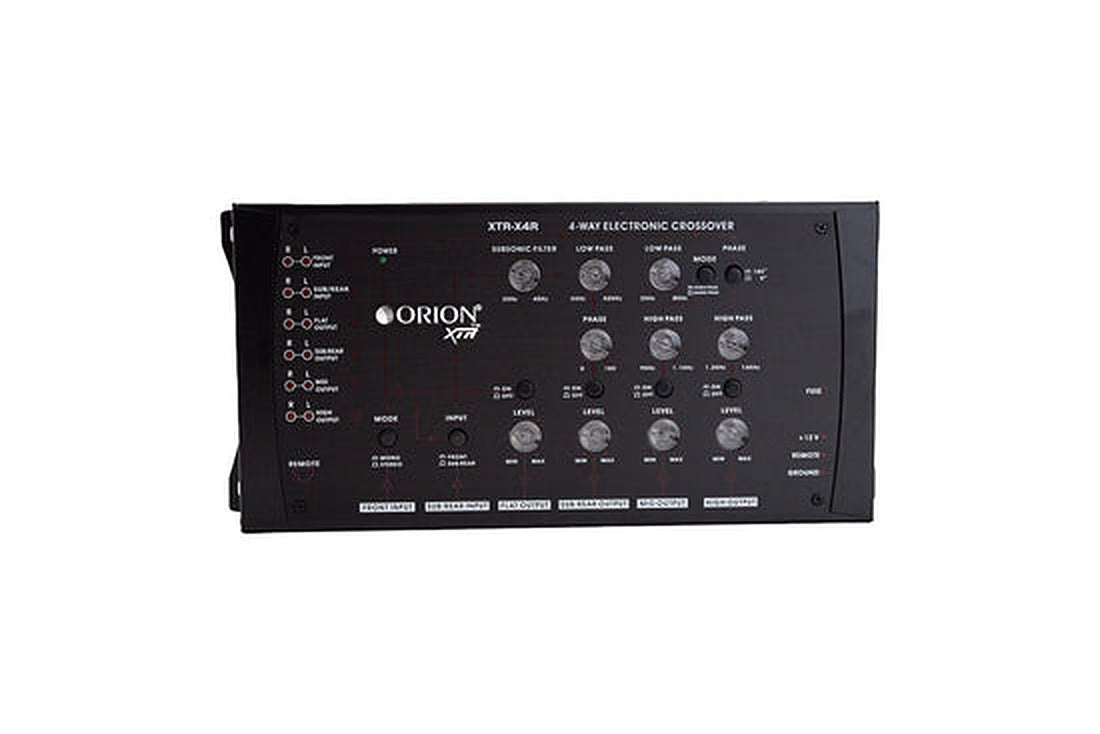

- Light Illuminated Control Panel: Easy-to-read illuminated panel for quick and precise adjustments
- Durable Construction: Built for long-lasting performance and reliability in demanding environments
Specifications:
Adjustable Bass Boost: 0 - 18dB
Selectable Crossover Frequency
High Pass: 1.2kHz - 8kHz
Mid High Pass: 90Hz - 1.1kHz
Mid Low Pass: 2kHz - 8kHz
Subwoofer (LowPass): 50Hz - 500Hz
Subsonic Filter: 20Hz - 40Hz

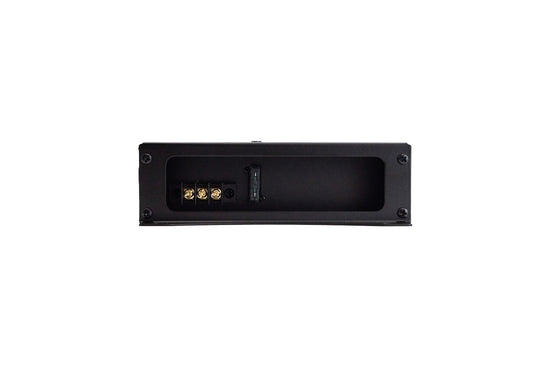

Power Supply: 10-16V DC, negative ground
Input Impedance: 10K Ohm
S/N ratio: >90dB
Slope Rate: 12dB/Octave
Max Output Signal Level: 11V
Channel Separation: 60dB
Distortion: less than 0.05%
Dimensions: WxDxH: 5.91" x 12.68" x 1.77" Inches (150x322x45mm)
| Specification | Details |
|---|---|
| Model | XTR-X4R |
| UPC | 818550014303 |
| Crossover Type | 4-Way Electronic |
| Crossover Frequencies | |
| - High Pass | 1.2kHz – 8kHz |
| - Mid High Pass | 90Hz – 1.1kHz |
| - Mid Low Pass | 2kHz – 8kHz |
| - Subwoofer Low Pass | 50Hz – 500Hz |
| - Subsonic Filter | 20Hz – 40Hz |
| Adjustable Bass Boost | 0 – 18dB |
| Remote Subwoofer Control | Included |
| Slope Rate | 12dB/Octave |
| Signal-to-Noise Ratio (S/N) | >90dB |
| Phase Alignment | Adjustable |
| Channel Separation | 60dB |
| Max Output Signal Level | 11V |
| Input Impedance | 10K Ohm |
| Distortion (THD) | <0.05% |
| Power Supply | 10 – 16V DC, Negative Ground |
| Control Panel | Light-illuminated |
| Build | Compact and Durable |
| Dimensions (WxDxH) | 5.91" x 12.68" x 1.77" (150mm x 322mm x 45mm) |
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
Customer Support : 9:00 am to 5:00 pm
Email: info@eliteautogear.com
For technical support questions, contact us at cs@eliteautogear.com
Phone: (877)-215-8187
