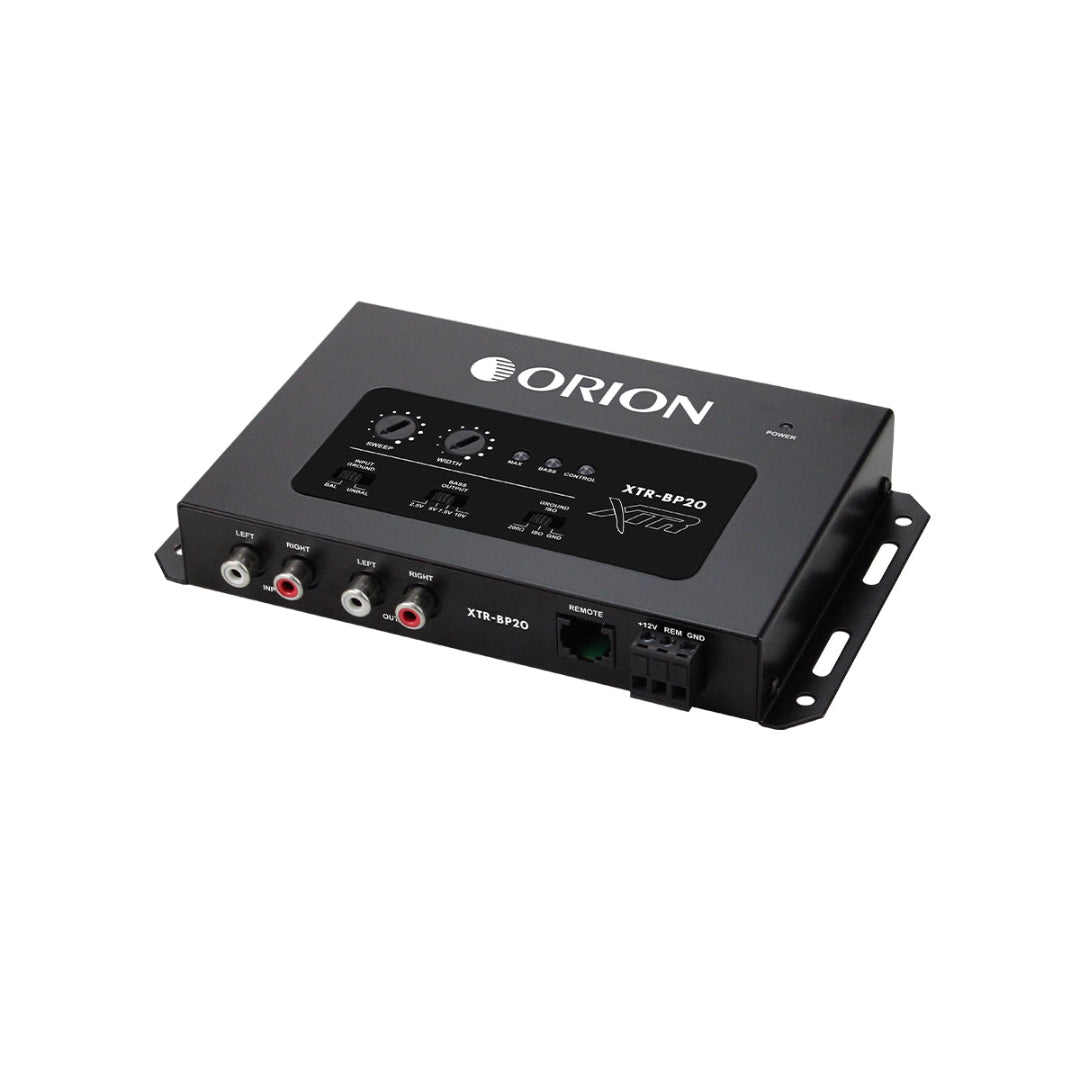

Orion XTR-BP20 High-Performance Bass Processor – 10V Output & Bass Control
XTR-BP20 Bass Processor delivers controlled, powerful low-frequency performance with 10V output, precision sweep and width tuning, ground isolation, and balanced/unbalanced inputs for clean, deep bass in car audio systems.
Features:
- XTR Bass Processor: Enhances low-frequency performance for deeper, tighter subwoofer bass.
- Bass Restoration: Recovers lost bass from compressed or factory audio.
- Sweep & Width Control: Adjust center frequency and bandwidth for precise bass tuning.
- Selectable Output: 2.5V, 5V, 7.5V, or 10V to match amplifier input.
- High SNR & Low Distortion: Clean bass with >110dB SNR and <0.02% THD.
- Balanced/Unbalanced Inputs: Compatible with factory and aftermarket head units.
- Ground Isolation: Reduces alternator noise and interference.
- Remote Bass Control: Adjust bass in real time from the driver’s seat.
Specifications:
Power Supply: 6.5V – 18V
Maximum Input Level: 10V
Maximum Output Level: 10.5V
Input Sensitivity: 10.5V
Input Impedance: >50K Ohms
Output Impedance: 100 Ohms
EQ Boost / Cut: 15 dB
Signal-to-Noise Ratio: >110 dB
THD @ 2V Output: <0.02%
Channel Separation: >80 dB
CMRR: -70 dB Balanced / -29 dB Unbalanced
Frequency Response: 10 Hz – 30 kHz
Subsonic Filter: 31 Hz – 71 Hz
Current Draw: 180 mA
Interchannel Gain Tracking: 0.1 dB
Fuse Rating: 1A
Dimensions: 7.28” x 4.13” x 1.02”
UPC: 818550019454
