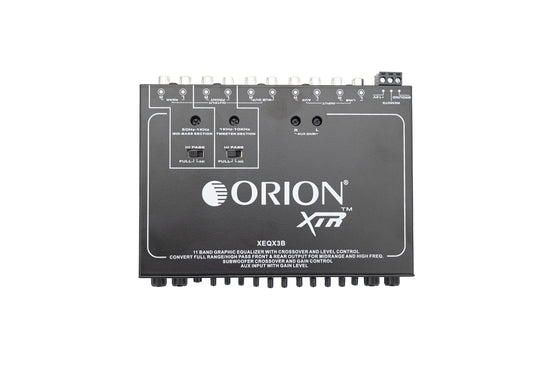

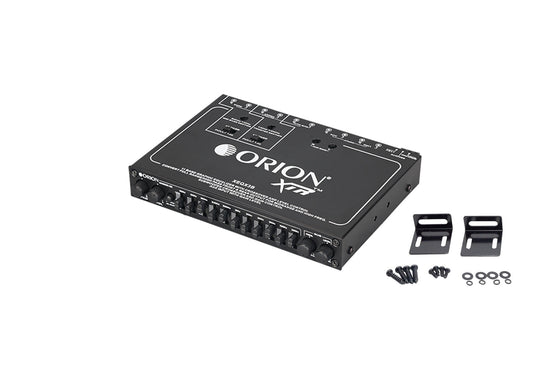

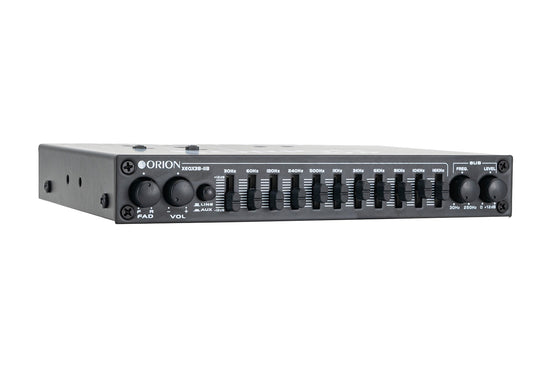

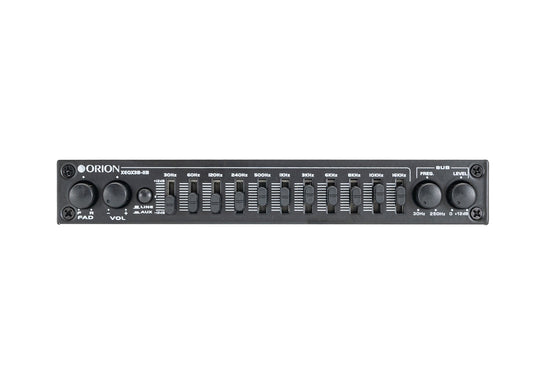

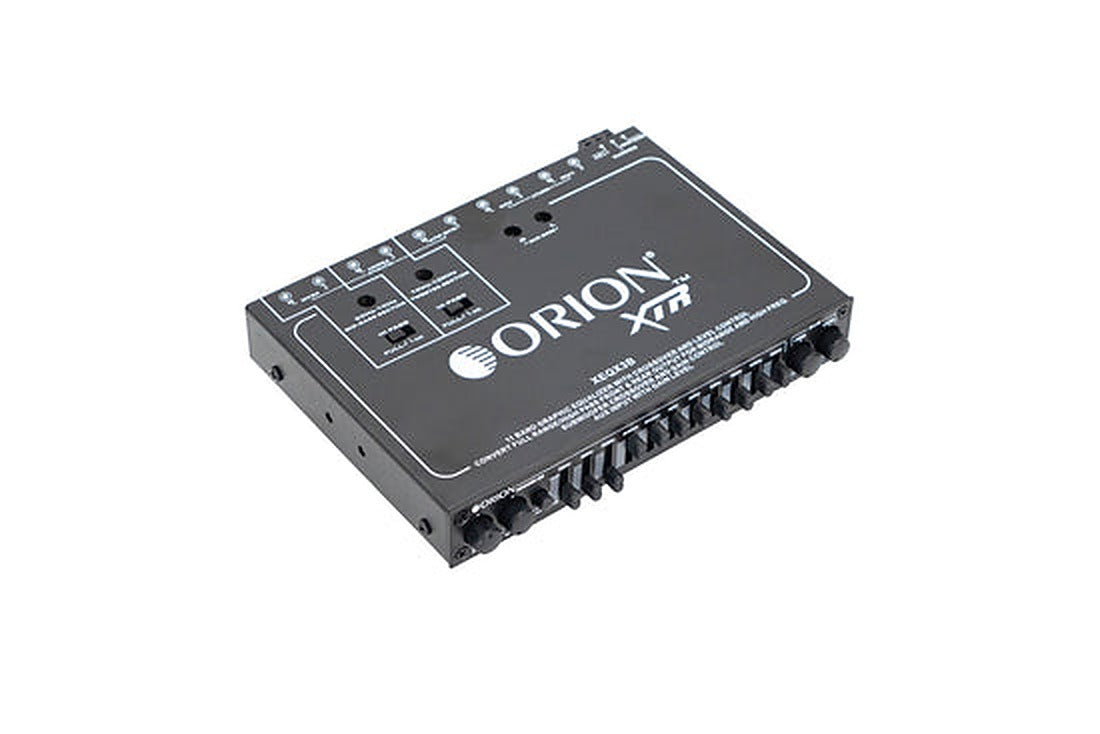

Orion XEQ-X3B 11-Band Parametric Equalizer
The Orion XEQ-X3B 11-Band Parametric Equalizer is the ultimate solution for audiophiles and car audio enthusiasts who demand the highest level of precision and control over their sound system. The 11-band equalization allows for precise tuning across the entire frequency spectrum. Unlike traditional equalizers with fewer bands, which may only allow for general adjustments, the XEQ-X3B lets you fine-tune specific frequencies for a highly customized sound profile. Each of the 11 bands can be independently adjusted, providing the flexibility to make subtle changes or dramatic shifts to your sound. This ensures that every element of your audio – from the deepest bass to the highest treble – can be optimized to your exact preferences, creating a rich, immersive sound experience.
With adjustable frequency centers, you can pinpoint the exact range of sound you want to modify, giving you more control than standard fixed-band equalizers. The gain controls allow you to adjust the output level of each frequency band, so whether you’re looking to amplify your bass response for a more powerful low-end, or reduce harshness in the high frequencies for a smoother sound, you can achieve the perfect balance. Additionally, the built-in low-pass filters help manage and clean up low-end frequencies, ensuring that your subwoofer produces deep, impactful bass without unwanted distortion or muddiness.
Want deeper, punchier bass? Simply boost the lower frequencies. Want to bring out the nuances in vocals or guitars? Adjust the mid and high frequencies to highlight those details. In short, the Orion XEQ-X3B 11-Band Parametric Equalizer offers comprehensive control over your car audio system, transforming your in-car sound experience from ordinary to extraordinary.
Features:
- 11 Bands of Sound Control: Fine-tune your audio output with customizable control over a wide frequency range
- High-Quality Signal Processing: Designed with low distortion circuitry for clean, professional-grade sound quality
- Front, Rear, and Subwoofer Outputs: Multiple outputs for tailored control of different speaker zones in your car
- LED-Illuminated Display: Easily adjust settings even in low-light conditions with a sleek, illuminated interface
Specifications:
Number of Bands: 11
Frequency Range: 20 Hz to 20 kHz
Equalization Range: ±12 dB
Subwoofer Output: Yes
Line Driver: Yes, enhances signal quality from source to amplifier
Front/Rear Outputs: Yes, with fader control
Input Voltage: 11V - 15V
Signal-to-Noise Ratio: >90 dB
Total Harmonic Distortion (THD): <0.05%
Dimensions: 7" x 4.5" x 1.25"
Weight: Approximately 1.5 pounds
| Specification | Details |
|---|---|
| Model | XEQ-X3B |
| UPC | 818550019966 |
| Number of Bands | 11 |
| Frequency Range | 20 Hz – 20 kHz |
| Equalization Range | ±12 dB per band |
| Subwoofer Output | Yes |
| Line Driver | Yes |
| Front/Rear Outputs | Yes (with fader control) |
| Input Voltage | 11V – 15V (Negative Ground) |
| Signal-to-Noise Ratio | >90 dB |
| Total Harmonic Distortion (THD) | <0.05% |
| Dimensions (W x D x H) | 7" x 4.5" x 1.25" |
| Weight | Approx. 1.5 lbs |
| Display | LED-illuminated interface |

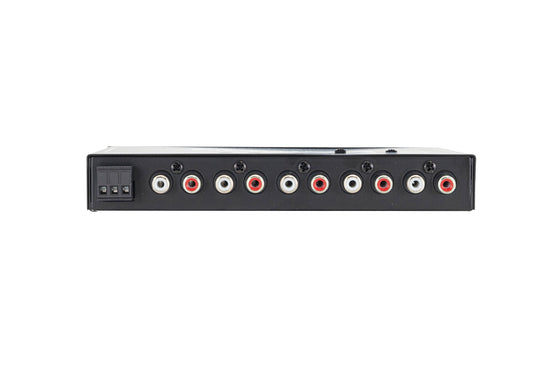

| Outputs | Front, Rear, and Subwoofer RCA outputs |
