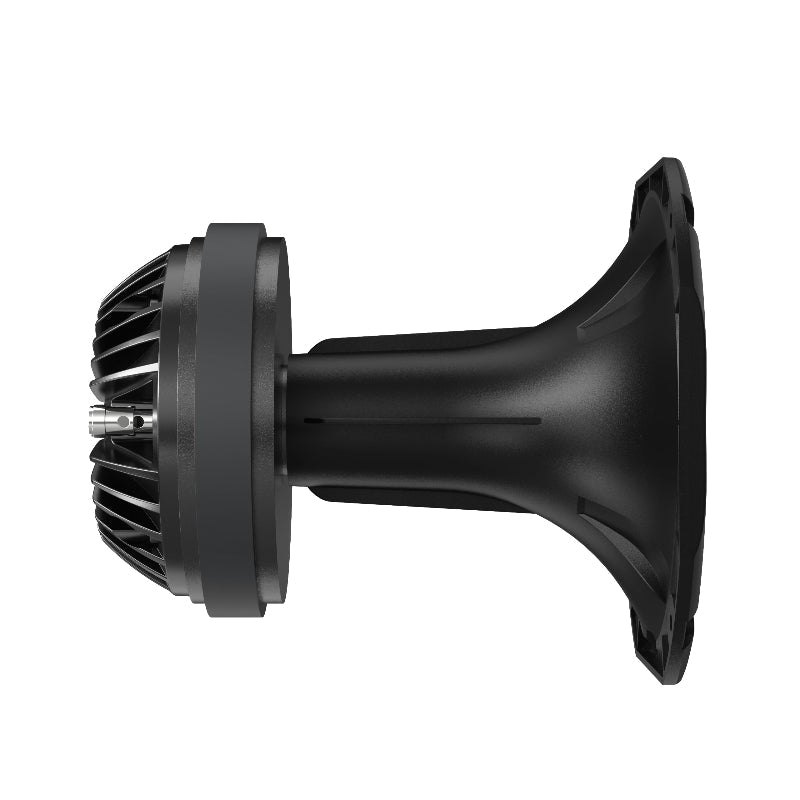

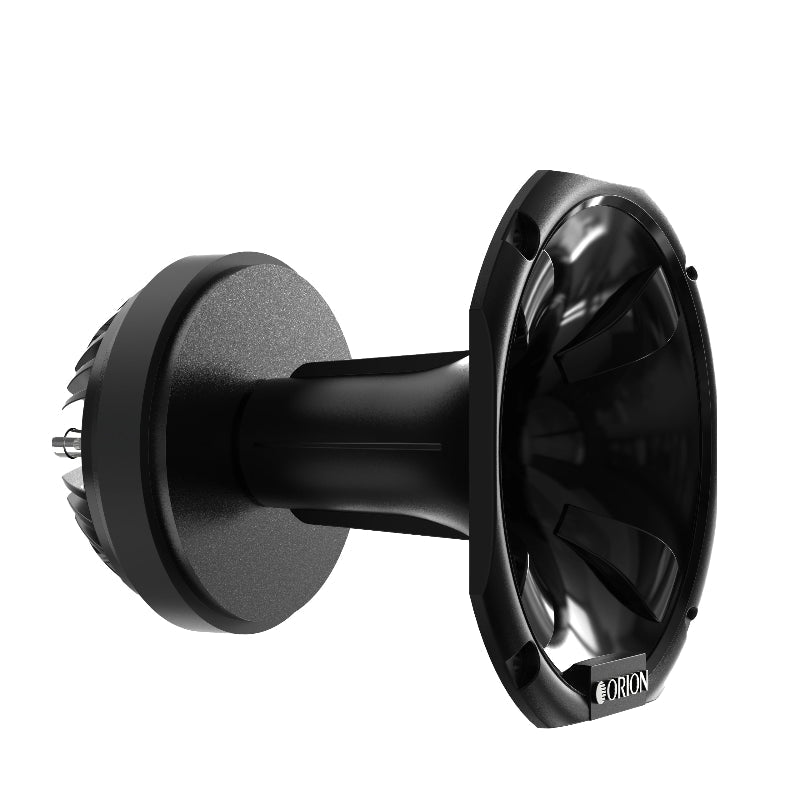

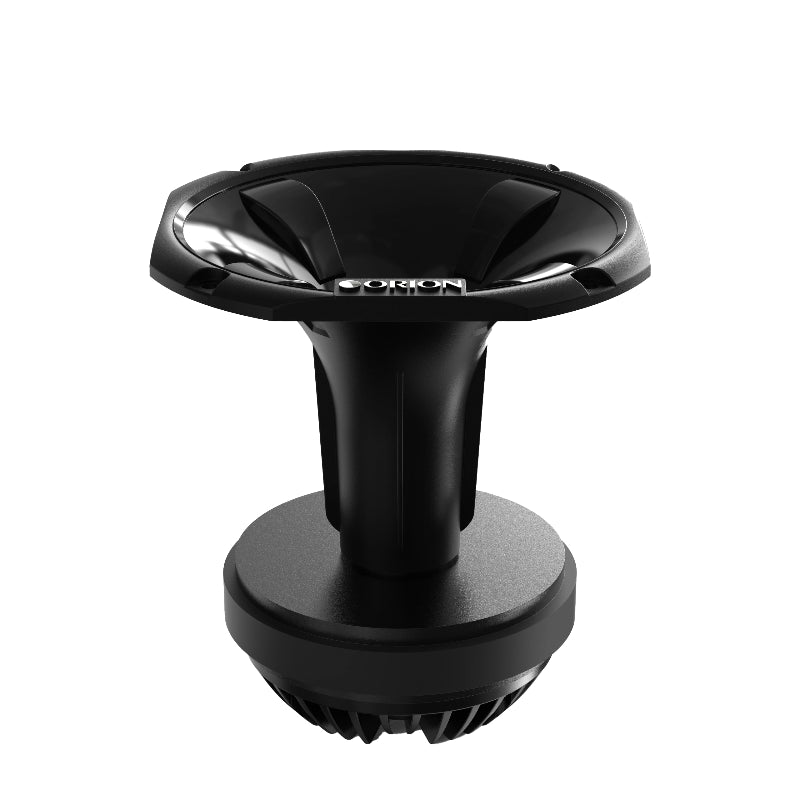

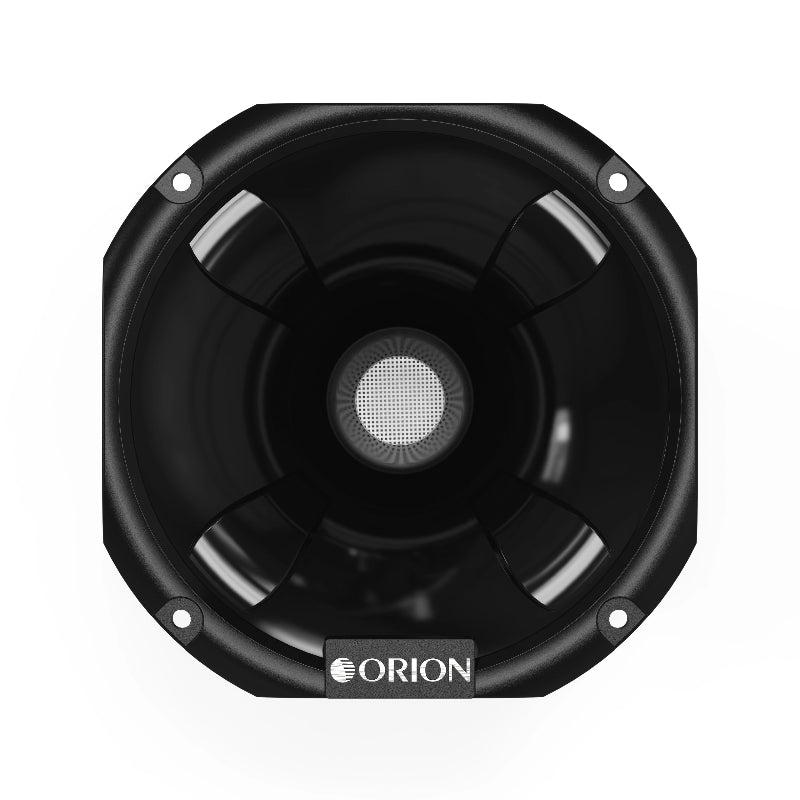

Orion XDK175 1.75" Voice Coil Compression Driver – Plastic Horn, 150W RMS / 600W Max
ORION XDK175 1.75" Voice Coil Compression Driver with plastic horn delivers exceptional high-frequency clarity, engineered precision, and powerful projection (150W RMS / 600W Max). Optimized sound dispersion for professional audio systems, live sound, and high‑performance installs.
Features:
- Crystal-Clear Highs: 1.75" voice coil compression driver reproduces high-frequency sounds with exceptional clarity and detail.
- Powerful Projection: Handles 150W RMS (600W Max) to deliver strong, precise sound that fills any space.
- Precision-Engineered Horn: Plastic horn optimizes sound dispersion for even, consistent high-frequency coverage.
- Professional-Grade Audio: Ideal for audiophiles, live sound, and custom audio installations requiring top-tier performance.
Specifications:
Speaker Size: 1.75 (Inches)
Voice Coil Configuration: 8 ohm
Power Handling (Peak): 600 Watts
Power Handling (RMS): 150 Watts
Sensitivity: 106 dB
Frequency Response: 1.2 kHz - 20 kHz
Quantity 1 Horn Driver
Material: Injected Molded
Voice Coil Material: CCAW
Magnet Information: 29 Oz Ceramic
Dimensions (L x W x H): 9 x 7 x 6.75"
UPC: 818550014831
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
Customer Support : 9:00 am to 5:00 pm
Email: info@eliteautogear.com
For technical support questions, contact us at cs@eliteautogear.com
Phone: (877)-215-8187
