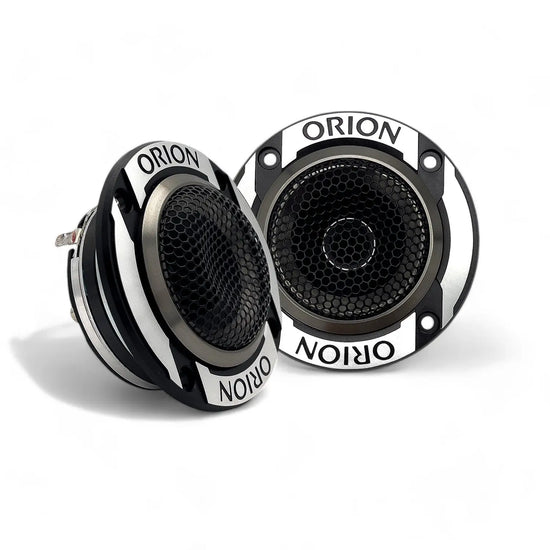

Orion HCCA150NE - 3.6” Super Shallow Neodymium Tweeters
HCCA150NE – 3.6” Super Shallow Neodymium Tweeters, the ultimate enhancement for your car audio system. These high-quality tweeters are designed to provide superior sound performance without compromising space in your vehicle. With their super shallow design, they easily fit into tight spots, making them an ideal choice for custom installations. Their combination of superior sound quality, sleek design, and easy installation makes them the perfect upgrade for any vehicle. If you're looking to take your car’s audio system to the next level, then these tweeters are the ideal choice. Experience the difference and enhance your driving experience with the best in neodymium tweeter technology.
| Feature | Specification |
|---|---|
| Brand | Orion |
| Model | HCCA150NE |
| Tweeter Type | Super-shallow neodymium bullet tweeter pair |
| Speaker Size | 3.6″ overall diameter (93 mm); cutout: 70 mm |
| Voice Coil | 4 Ω, 1.5″ diameter |
| Power Handling (RMS/Peak) | 150 W RMS / 600 W peak |
| Sensitivity | 107 dB |
| Frequency Response | 1.5 kHz – 20 kHz |
| Materials | Die-cast aluminum housing; aluminum diaphragm, phase plug; neodymium magnet |
| Recommended Capacitor | 3.3 µF 250 V |
| Mounting Depth | 30.6 mm (1.2″) |
| Overall Depth | 46.5 mm (1.83″) |
| Cutout Diameter | 70 mm (2.76″) |
| Overall Diameter | 93 mm (3.66″) |
| UPC | 818550019782 |
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
Customer Support : 9:00 am to 5:00 pm
Email: info@eliteautogear.com
For technical support questions, contact us at cs@eliteautogear.com
Phone: (877)-215-8187
From Our Community

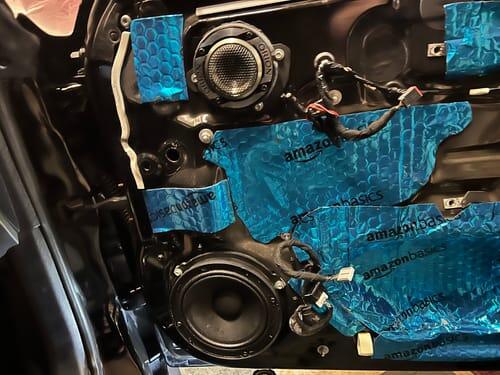

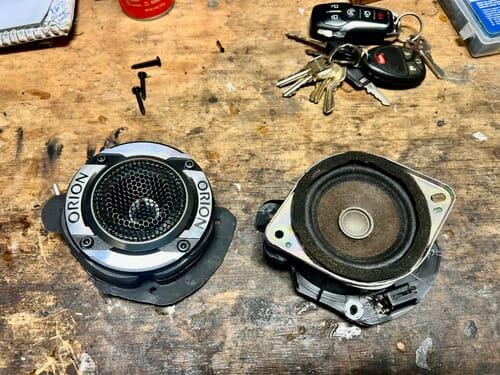

Real Installs. Real Sound.
