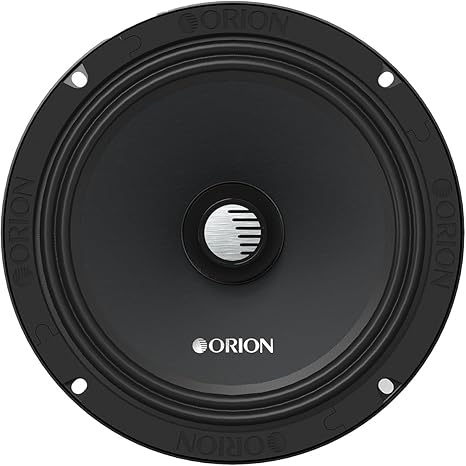

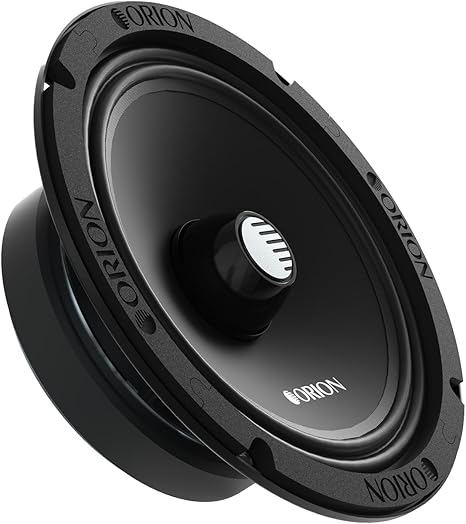

Orion CSH85 - 8” Shallow Slim Midrange Speakers
The CSH85 Shallow Slim Midrange Speaker delivers high-quality sound with powerful performance and lasting durability. Designed for precision, it features a bullet phase plug for enhanced clarity and cooling, a heavy-duty steel frame to reduce distortion, and a non-pressed paper cone with treated cloth surround for accurate audio. With 250W RMS power and a wide frequency range of 80 Hz to 7 kHz, it’s built to handle demanding environments while delivering rich, balanced midrange sound—perfect for serious car audio upgrades.
Features:
- 4-Ohm Midrange Speaker: Delivers precise and accurate sound reproduction, integrating seamlessly into any high-performance audio system.
- Bullet Phase Plug: Enhances sound clarity, reduces distortion, and cools the voice coil, providing consistent, high-quality audio.
- Heavy-Gauged Stamped Steel Frame: Offers exceptional strength and rigidity, minimizing vibrations and resonance for improved sound clarity.
- High-Temperature Coating: Protects the speaker components from heat during extended use at high power levels, ensuring consistent performance.
- High Power Handling: 250 Watts RMS and 1000 Watts peak power for dynamic, powerful sound performance in any environment.
- Slim Design: 8" midrange speaker engineered for tight spaces—delivering clear, powerful sound without sacrificing installation flexibility.
- Wide Frequency Range: From 80 Hz to 7 kHz, capturing detailed midrange frequencies for a rich, immersive audio experience.
Specifications:
- Speaker Size: 8" (Inches)
- Voice Coil Configuration: 4 ohm
- Power Handling (Peak): 1000 Watts
- Power Handling (RMS): 250 Watts
- Sensitivity: 94 dB
- Frequency Response: 80 Hz - 7 kHz
- Voice Coil Diameter: 1.5" (Inches)

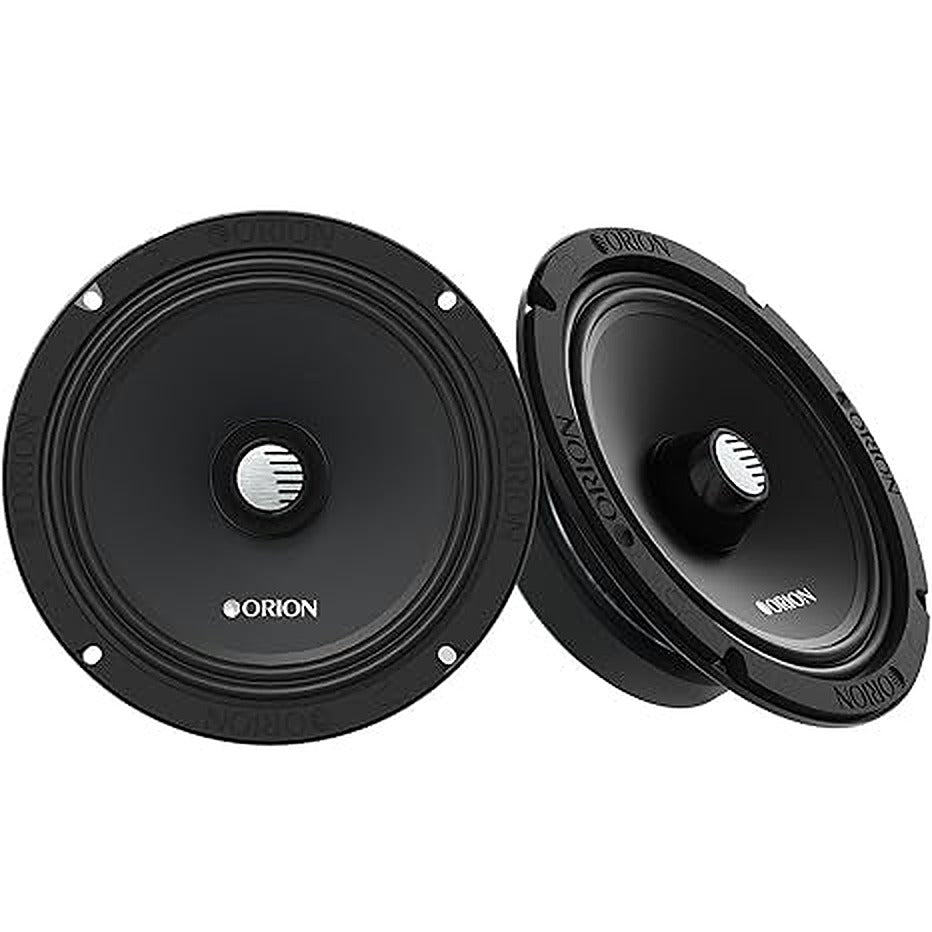

- Midrange Speaker: 2 UNITS (2 Speakers)
- Grills Included: No
- Magnet Information: 43.5 Oz
- Mounting Depth: 65mm / 2.56 (Inches)
- Overall Depth: 72mm / 2.83 (Inches)
- Cutout Diameter: 199.5mm / 7.85 (Inches)
- Overall Diameter: 209mm / 8.23 (Inches)
- UPC: 818550015616
