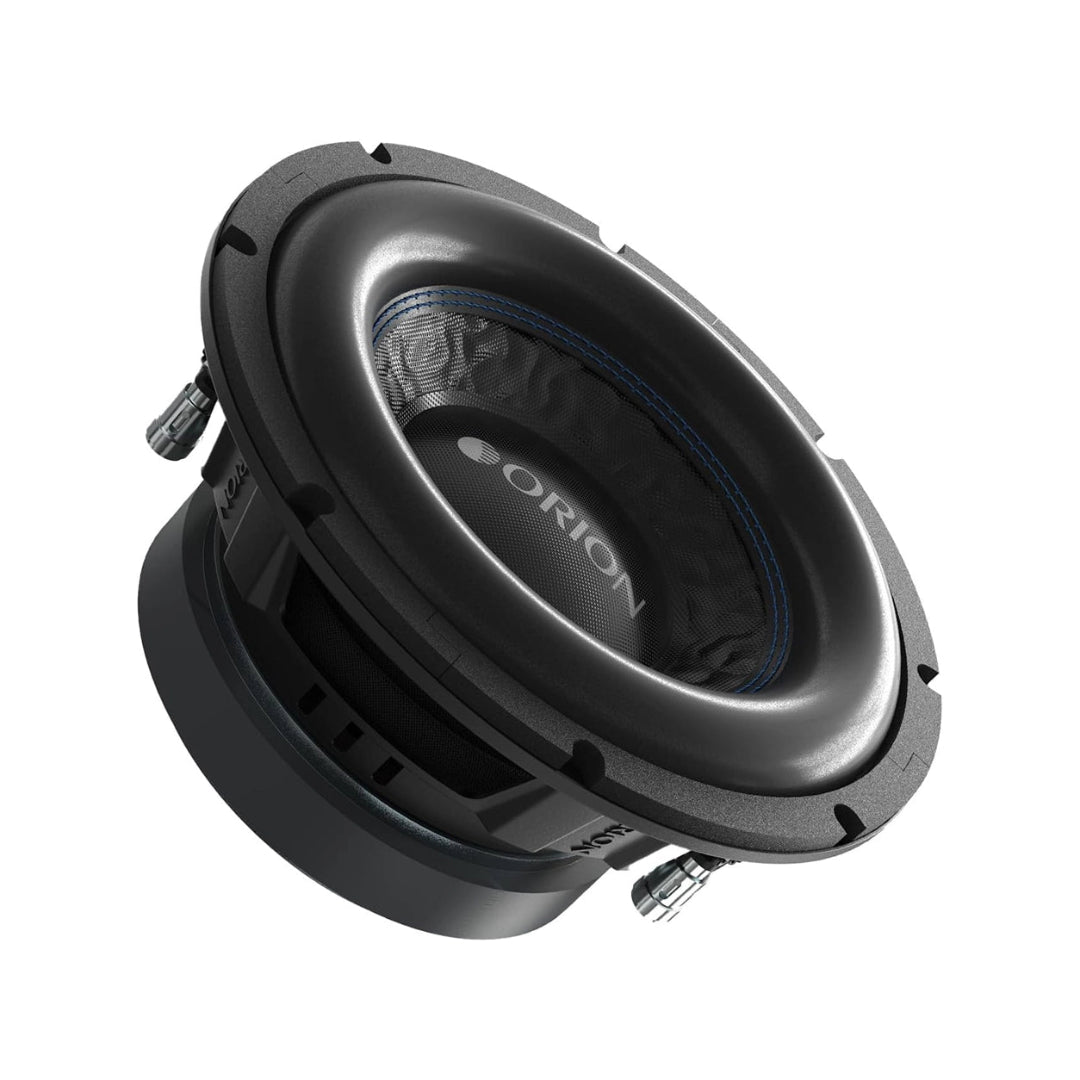

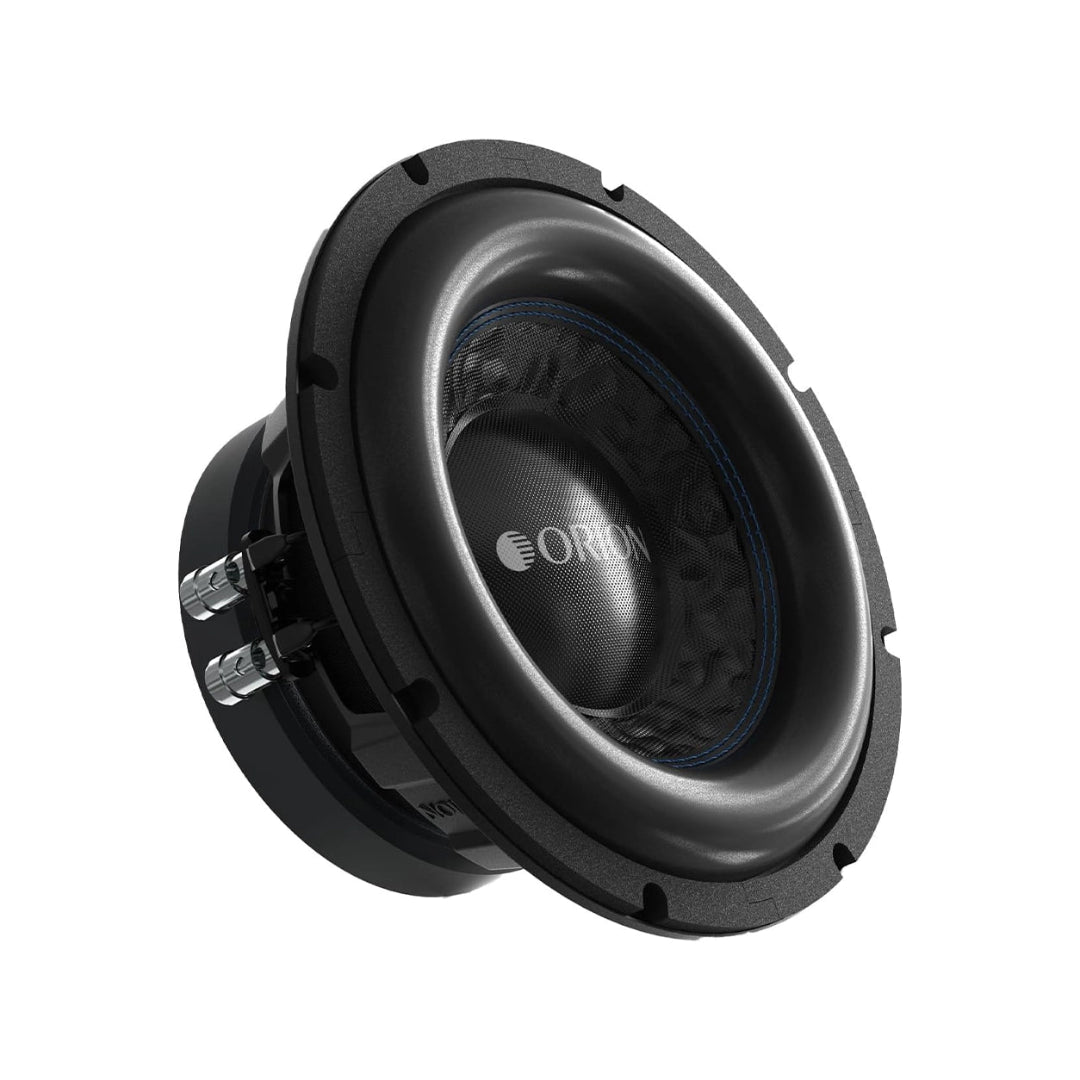

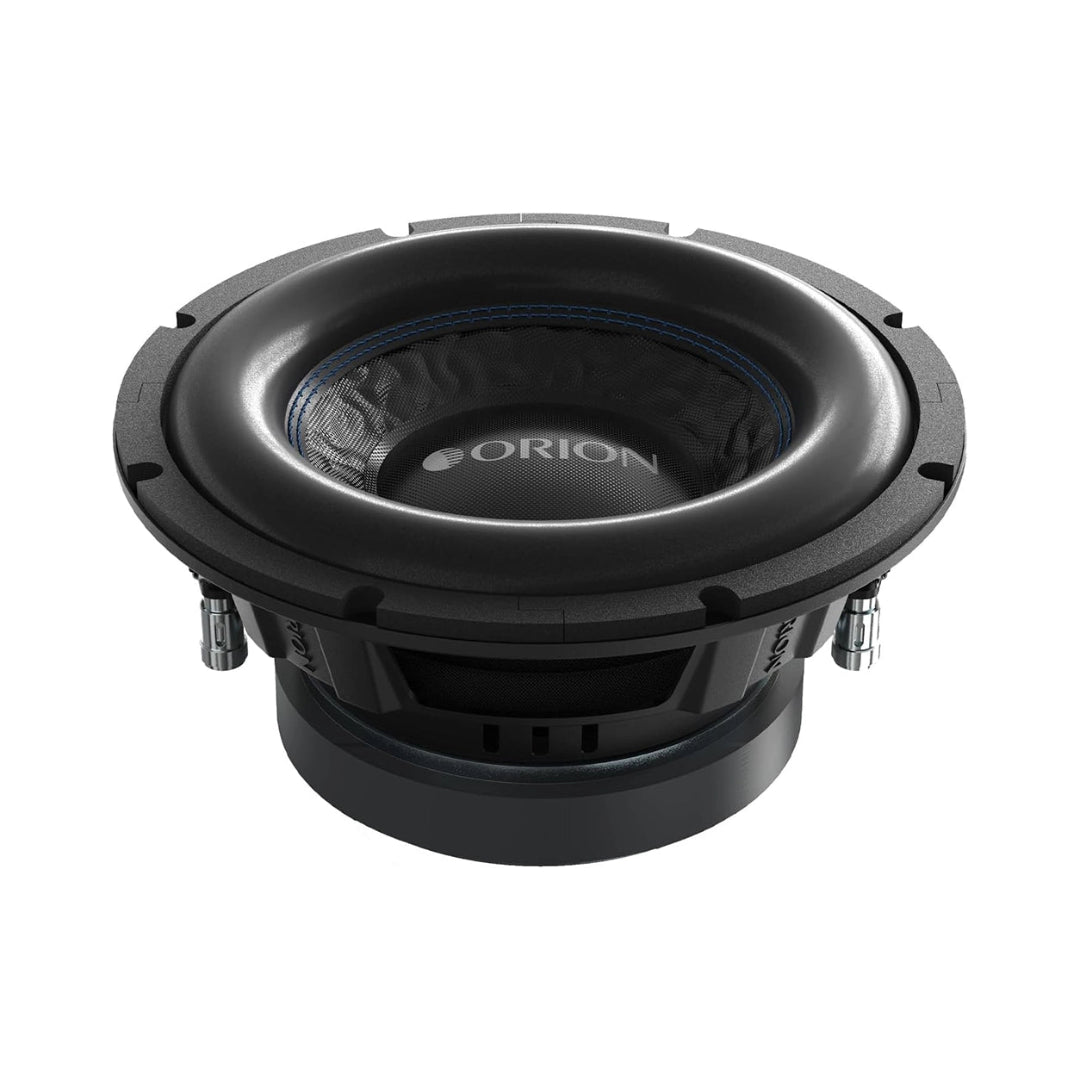

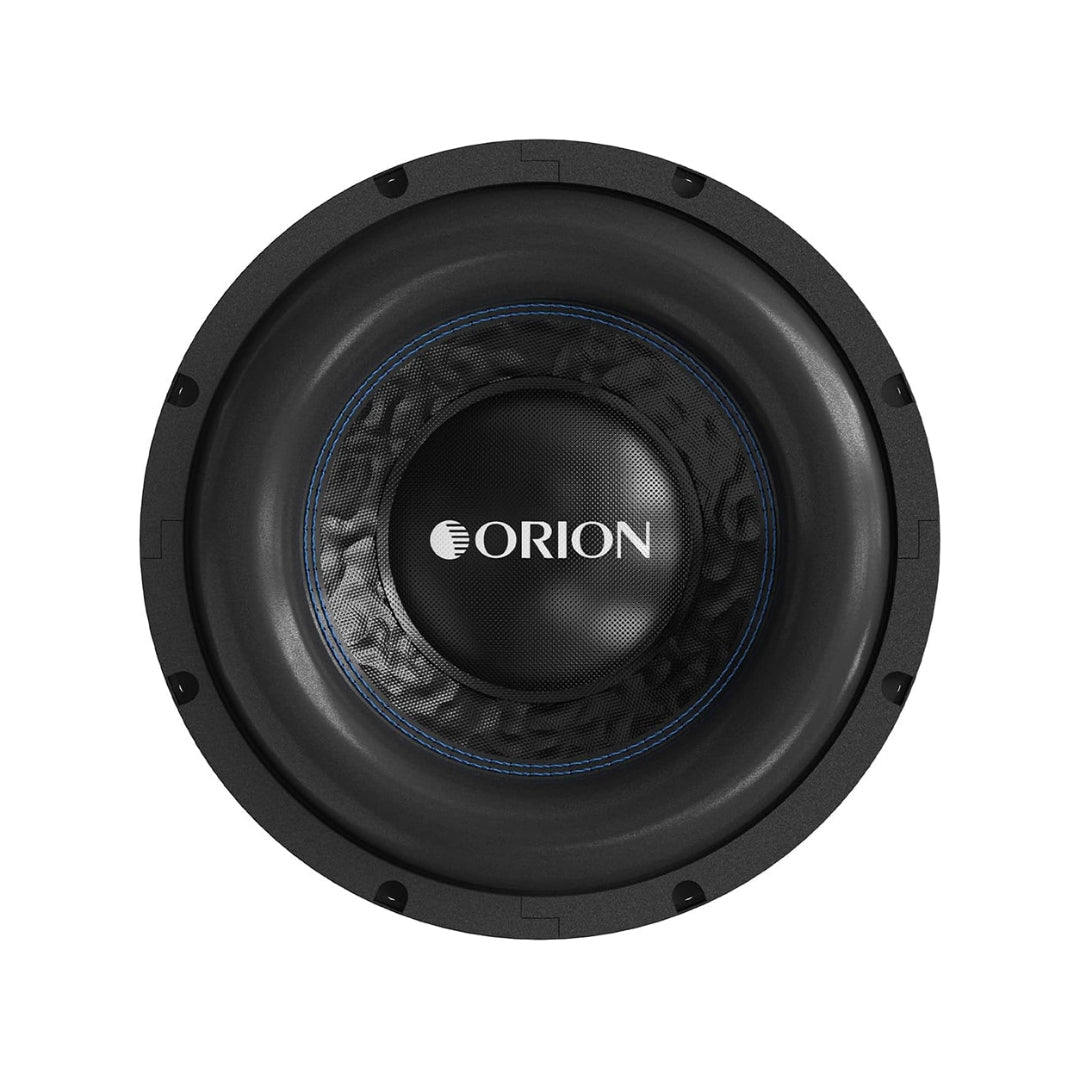

Orion Cobalt Series CBW804D 8” DVC Subwoofer | 4 Ohm Dual Voice Coil, 800W Max Car Audio Bass
Orion CBW804D 8” dual 4-ohm subwoofer from the Cobalt Series delivers clean, reliable bass for everyday car audio systems. With 200W RMS and 800W max power, it provides tight, controlled low-end performance in a compact design. A UV-coated paper/fiber cone with foam surround ensures durability and consistent sound, while the 2” copper-clad aluminum voice coil on a Kapton former improves heat handling and reliability. With a 3.78” mounting depth, it fits easily in sealed or ported enclosures, making it ideal for factory upgrades and custom builds.
Features:
- Dual 4-Ohm Design: Flexible wiring with tight, accurate bass response.
- Power Handling: 200W RMS / 800W Max for reliable daily performance.
- 2” Voice Coil: OFC CCAW on Kapton former for heat resistance and durability.
- UV-Coated Cone: Strong, stable cone for clean low-frequency output.
- Foam Surround: Smooth movement with reduced distortion at higher volume.
- Frequency Range: 20Hz–300Hz for deep, punchy bass.
- Compact Fit: 3.78” mounting depth for easy enclosure installation.
- Ferrite Magnet: Strong motor force for improved bass control.
- Versatile Use: Ideal for factory upgrades and custom audio builds.
Specifications:
Subwoofer Size: 8 (Inches)
Voice Coil Configuration: Dual 4-ohm
Power Handling (Peak): 800 Watts
Power Handling (RMS): 200 Watts
Sensitivity: 85 dB
Frequency Response: 20 Hz - 300 Hz
Voice Coil Diameter: 2 (Inches)
Cone Material: UV Coated Paper / Fiber Blend Cone
Surround Material: Foam Surround
Magnet Information: 40 Oz Ferrite
Overall Depth: 113.25mm / 4.46 (Inches)
Mounting Depth: 96mm / 3.78 (Inches)
Overall Diameter: 214mm / 8.43 (Inches)
Mounting Diameter: 204mm / 8.03 (Inches)
UPC: 818550010338
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
Customer Support : 9:00 am to 5:00 pm
Address: 13446 Alondra Boulevard, Cerritos ,California 90703, United States
Email: info@eliteautogear.com
For technical support questions, contact us at cs@eliteautogear.com
Phone: (877)-215-8187
From Our Community
Real Installs. Real Sound.
See what enthusiasts are saying — straight from their builds
Low End You Can Feel
Bass Built for Daily Driving and Competition
Controlled Low End
Designed for tight, repeatable bass rather than one-note boom, so basslines and kick drums stay separate.
Built to Take Power
Voice coil, spider and cone materials are matched to the rated RMS so the sub handles sustained output.
Match the Enclosure
Performance depends on the box. Sealed for accuracy, ported for output. See the specs for recommended volume and tuning.
Wire It Right
Coil configuration decides your final impedance. Match it to a load your amplifier is stable at before wiring.
