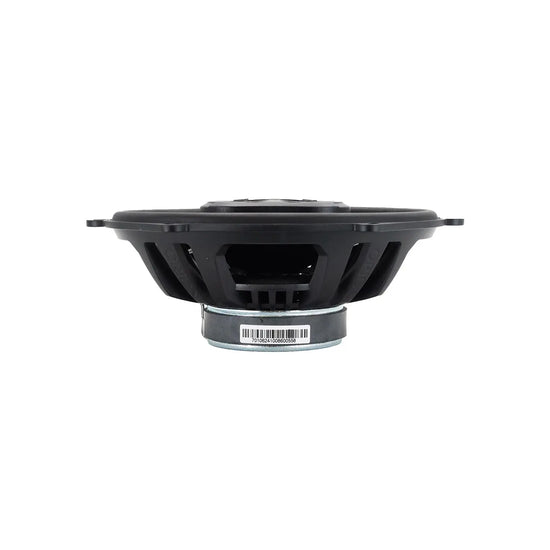

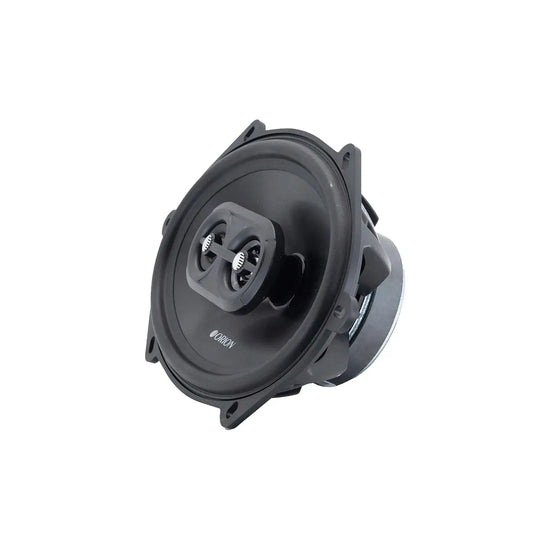

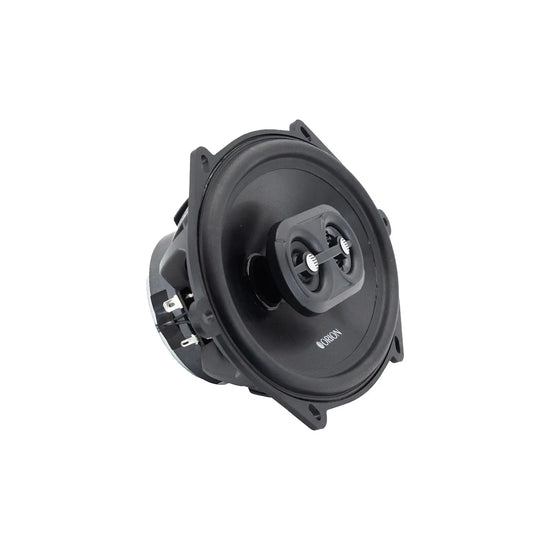

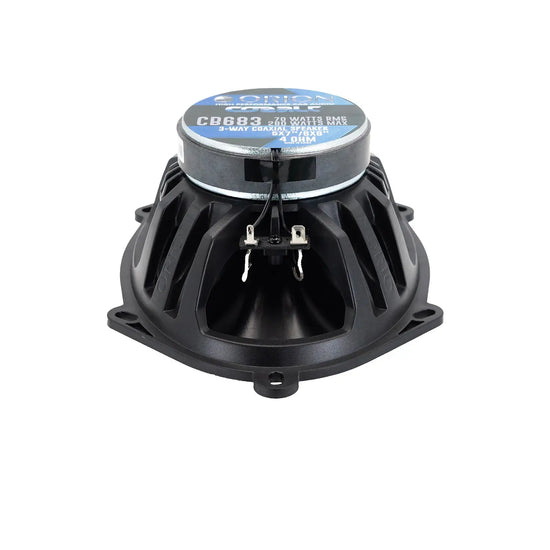

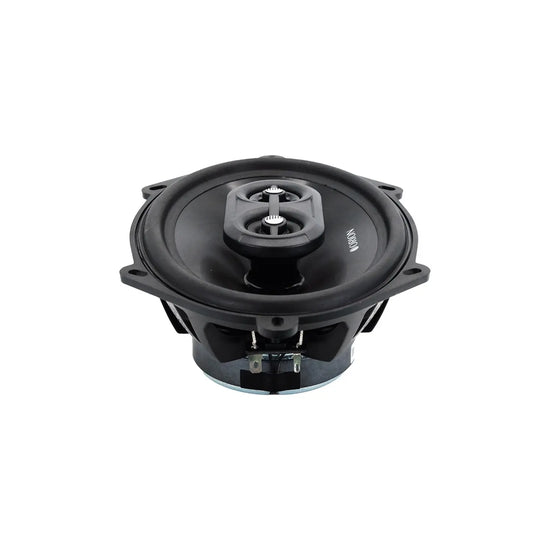

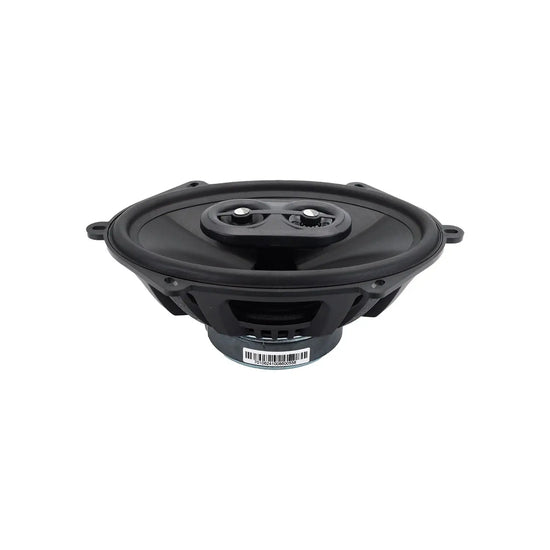

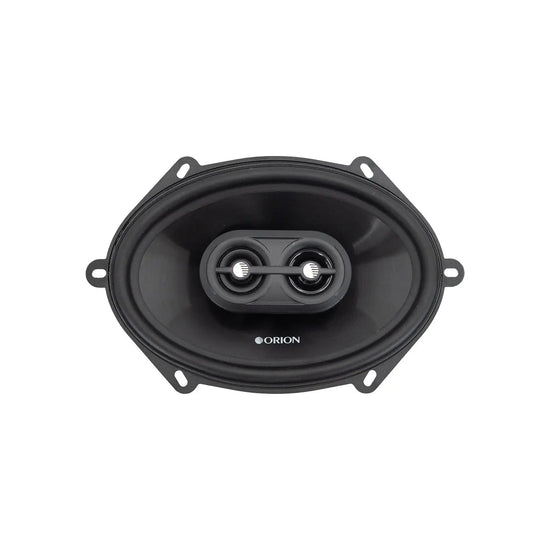

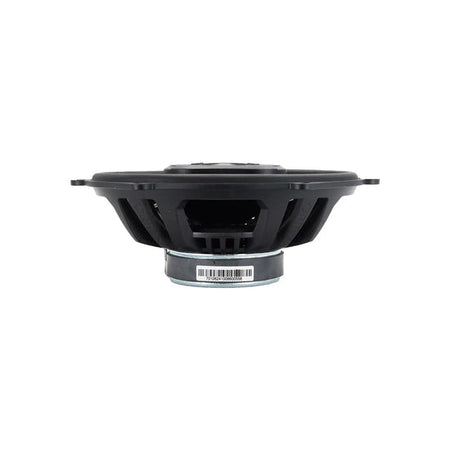

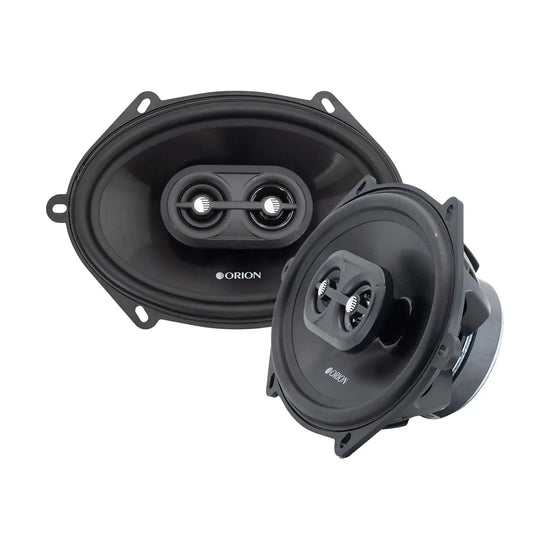

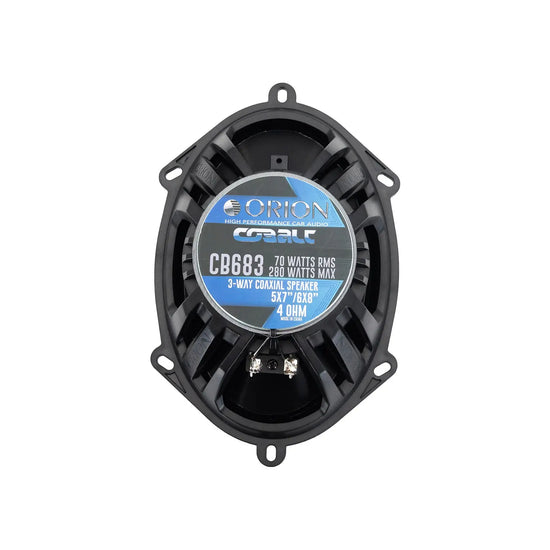

Orion Cobalt Series CB683 6x8" 3-Way Coaxial Speakers 70 Watts RMS | 280 Watts MAX
Say goodbye to dull, lifeless audio and crank up the fun with the Cobalt CB683 3 Way 6x8 Inch Speakers! The Cobalt CB683 3 Way 6x8 Inch speakers split the sound into three glorious components: booming bass, rich midrange, and crystal-clear highs. And let’s talk power: the Cobalt CB683 3 Way 6x8 Inch speakers handle up to 300 watts without breaking a sweat. (We’re talking about sound levels that could make your rearview mirror dance!)
With a wide frequency range, these speakers ensure you don’t miss a beat. High sensitivity means they’ll sound fantastic. These speakers are as easy to set up with a user-friendly guide. Compatible with a variety of car models, from compact sedans to mighty SUVs, they’ll fit right in—literally.
Features:
- Power Handling: 70 Watts RMS and 280 Watts MAX, delivering strong and clear audio performance.
- 3-Way Design: Includes a woofer, midrange, and tweeter for a balanced and full-range sound experience.
- Durable Construction: Built with high-quality materials to ensure long-lasting performance and reliability.
- Enhanced Sound Quality: Designed to provide deep bass and crisp highs for an immersive listening experience.
Specifications:
Speaker Size: 6x8 (Inches)
Voice Coil Configuration: 4 ohm
Power Handling (Peak): 280 Watts
Power Handling (RMS): 70 Watts
Sensitivity:88 dB
Frequency Response: 75 Hz - 20 kHz
Voice Coil:High temperature Voice Coil
Tweeter: 25mm Silk Dome Tweeter
Material:Injection-Molded
Cone Material:Polypropylene (IMPP)
Surround Material:NBR
Magnet Information: Ferrite
Grilles Included: No
Speaker Quantity:2 Speakers

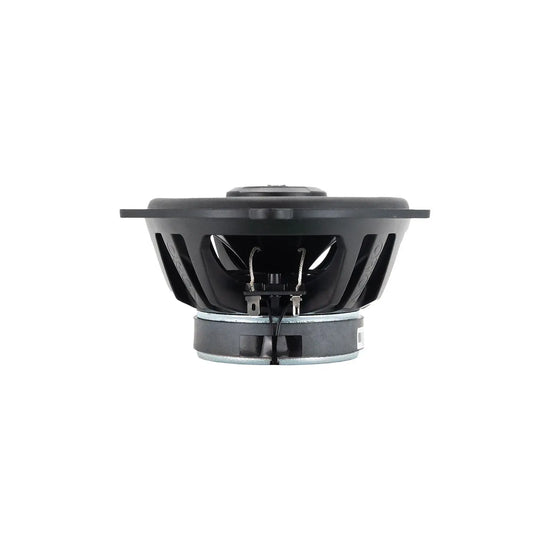

Total Height: 83mm / 3.27 (Inches)
Mounting Depth: 68m / 2.68 (Inches)
Cutout Diameter: 130x190mm / 5.12x7.48 (Inches)
| Feature | Details |
|---|---|
| Model | CB683 |
| Size | 6″ × 8″ |
| Impedance | 4 Ω |
| Power Handling (RMS/Max) | 70 W / 280 W |
| Sensitivity | 88 dB |
| Frequency Response | 75 Hz – 20 kHz |
| Tweeter | 25 mm Silk Dome |
| Cone Material | Polypropylene (IMPP) |
| Surround Material | NBR |
| Mounting Depth | 68 mm (2.68″) |
| Cutout Dimensions | 130 mm × 190 mm (5.12″ × 7.48″) |
| UPC | 818550010086 |
| Pair | 2 speakers included |
