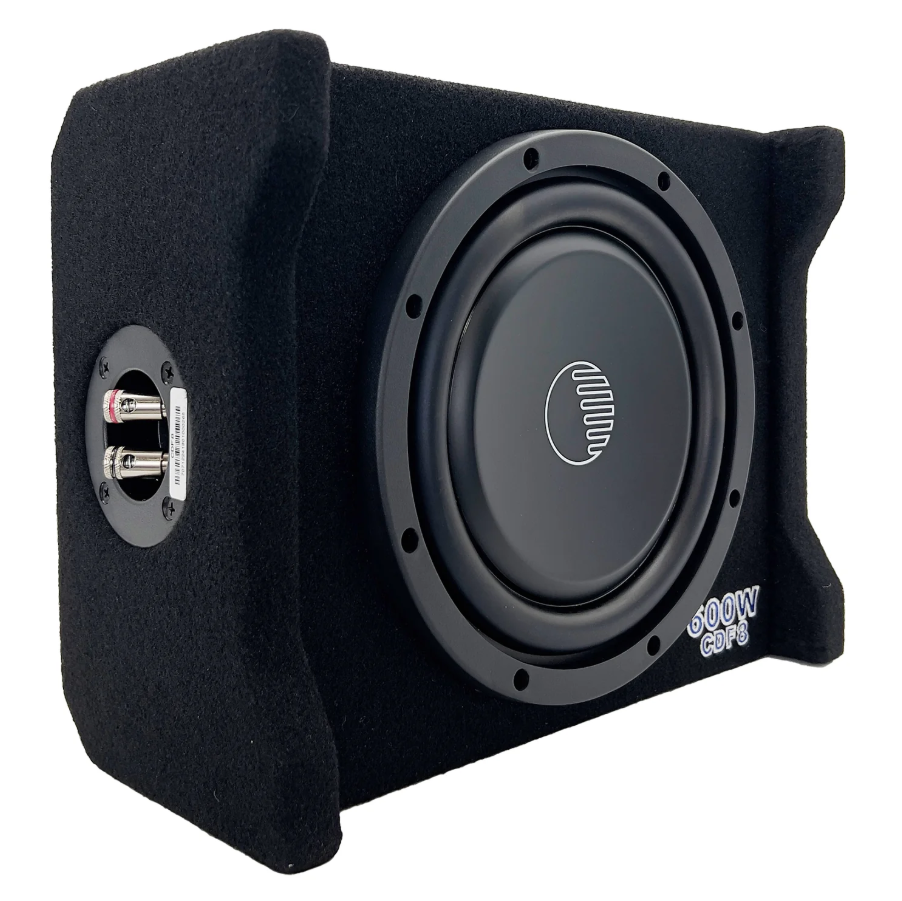

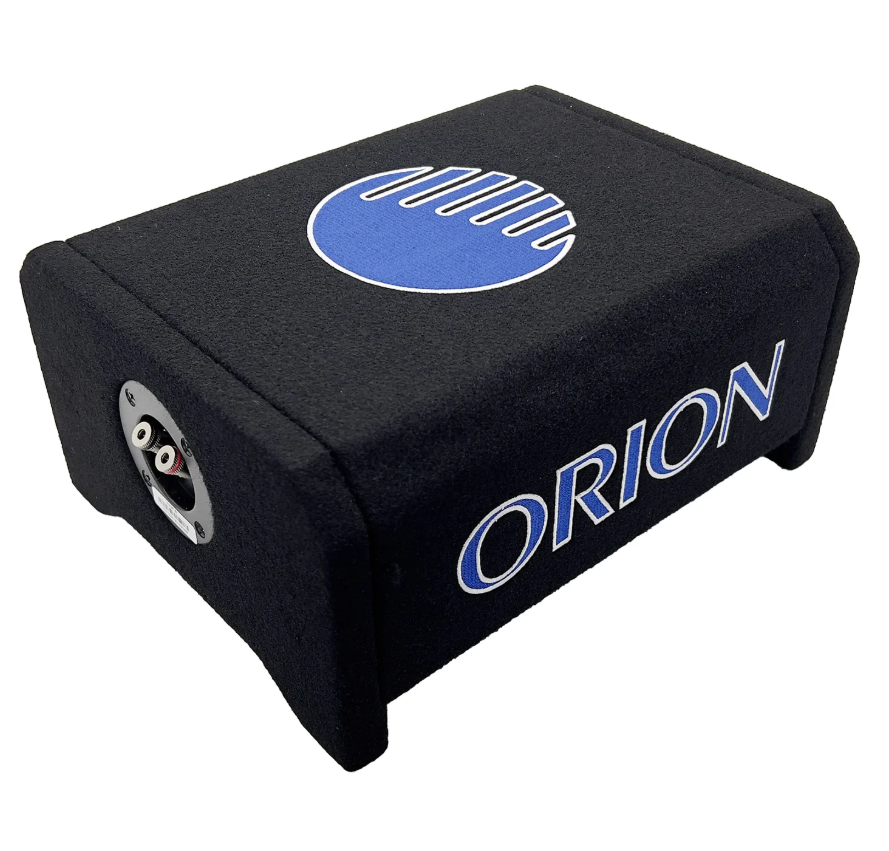

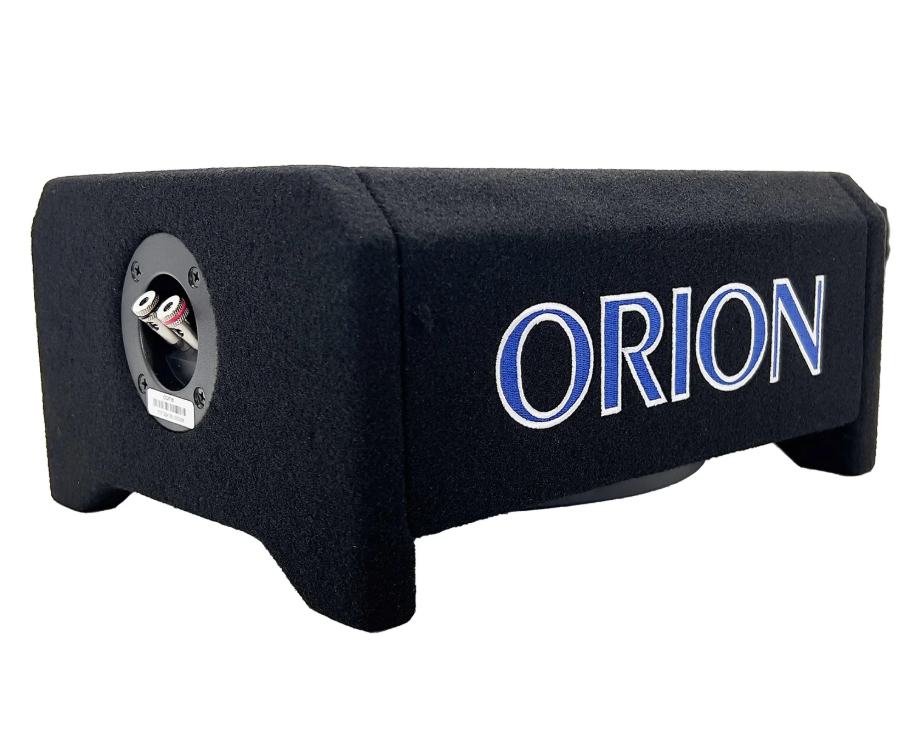

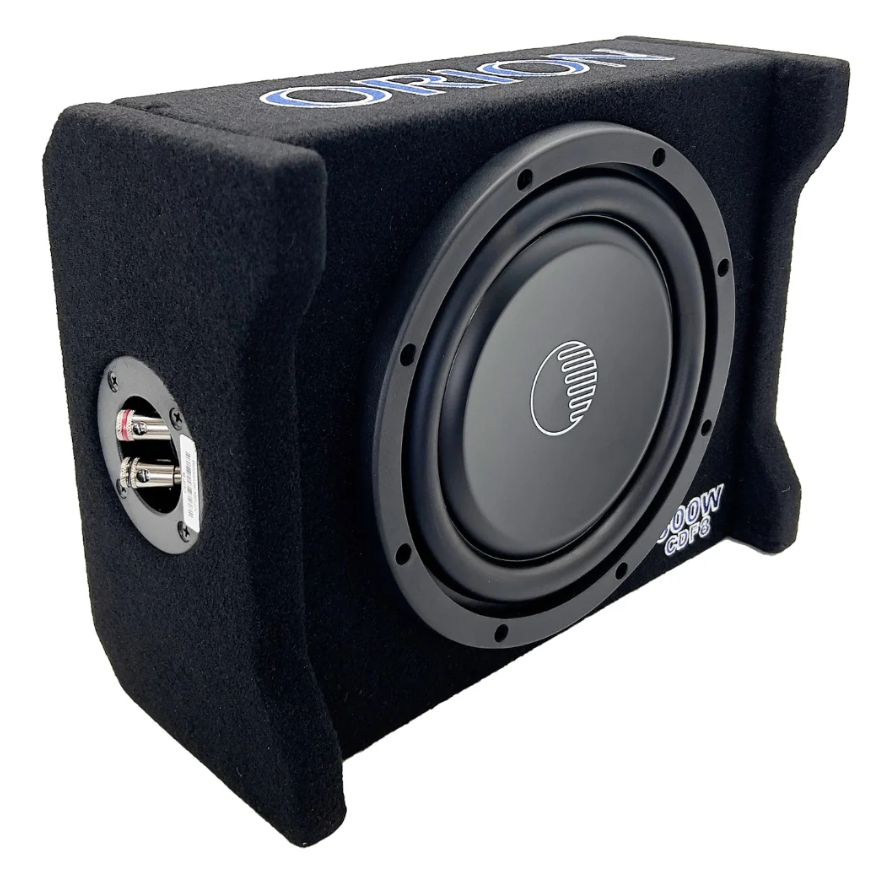

Orion Cobalt CDF8 – 8-Inch Passive Down-Firing Enclosure

Add deep, controlled bass to your vehicle without sacrificing valuable cargo space with the Orion Cobalt CDF8 8" Passive Down-Firing Enclosure. Designed as a compact all-in-one bass solution, this enclosure combines an 8-inch subwoofer with a sealed, down-firing enclosure for strong low-frequency performance in a space-conscious design. With 200W RMS and 600W peak power handling, the CDF8 is an excellent choice for factory audio upgrades, daily drivers, and compact custom audio systems.

The down-firing configuration directs the subwoofer toward the vehicle's floor, helping create a fuller and more immersive bass response while also keeping the speaker protected. Built with a sealed MDF enclosure, the CDF8 helps reduce unwanted resonance for cleaner and more controlled bass performance. The enclosure is finished with durable industrial-strength automotive-grade carpet for a clean appearance and added protection. Its compact design makes it easy to integrate into vehicles where installation space is limited.

Key Features

• Compact 8" Down-Firing Enclosure – Delivers powerful bass in a space-saving design
• Passive Enclosure Design – Ideal for pairing with a compatible external amplifier
• Down-Firing Configuration – Uses the vehicle's floor to help enhance low-frequency response
• 200W RMS Power Handling – Designed for reliable daily bass performance
• 600W Peak Power Handling – Provides strong short-term power capability
• Sealed Enclosure Design – Helps produce tight and controlled bass response
• Premium MDF Construction – Provides a rigid enclosure structure and helps minimize unwanted resonance
• Spun Aluminum Cone – Designed for responsive and durable low-frequency reproduction
• High-Strength EPDM Rubber Surround – Supports controlled cone movement and long-term durability
• Compact Installation Footprint – Ideal for vehicles with limited cargo or mounting space
• Push-Type Terminals – Provides convenient and secure speaker connections
• Automotive-Grade Carpet Finish – Offers a clean appearance and additional protection
• Cobalt Series Performance – Built for reliable bass enhancement in everyday car audio systems

Specifications

• Model: CDF8
• Series: Cobalt
• Speaker Size: 8"
• Enclosure Type: Passive Down-Firing / Sealed
• Power Handling RMS: 200 Watts
• Power Handling Peak: 600 Watts
• Final Impedance: 4 Ohms
• Sensitivity: 90 dB
• Frequency Response: 32 Hz–500 Hz
• Cone Material: Spun Aluminum
• Surround Material: High-Strength EPDM Rubber
• Enclosure Material: MDF
• Enclosure Volume: 0.26 cu. ft.
• Terminal Type: Push-Type Terminals
• Carpet Type: Black and Grey Industrial-Strength Carpet
• Dimensions: 12.09" × 5.7" × 9.45" (W × H × D)
• Dimensions: 307 × 145 × 240 mm (W × H × D)

Package Includes

• 1 × Orion Cobalt CDF8 8" Passive Down-Firing Enclosure
• 1 × Owner's Manual

SKU: ORI-CDF8
UPC:  818550019010
