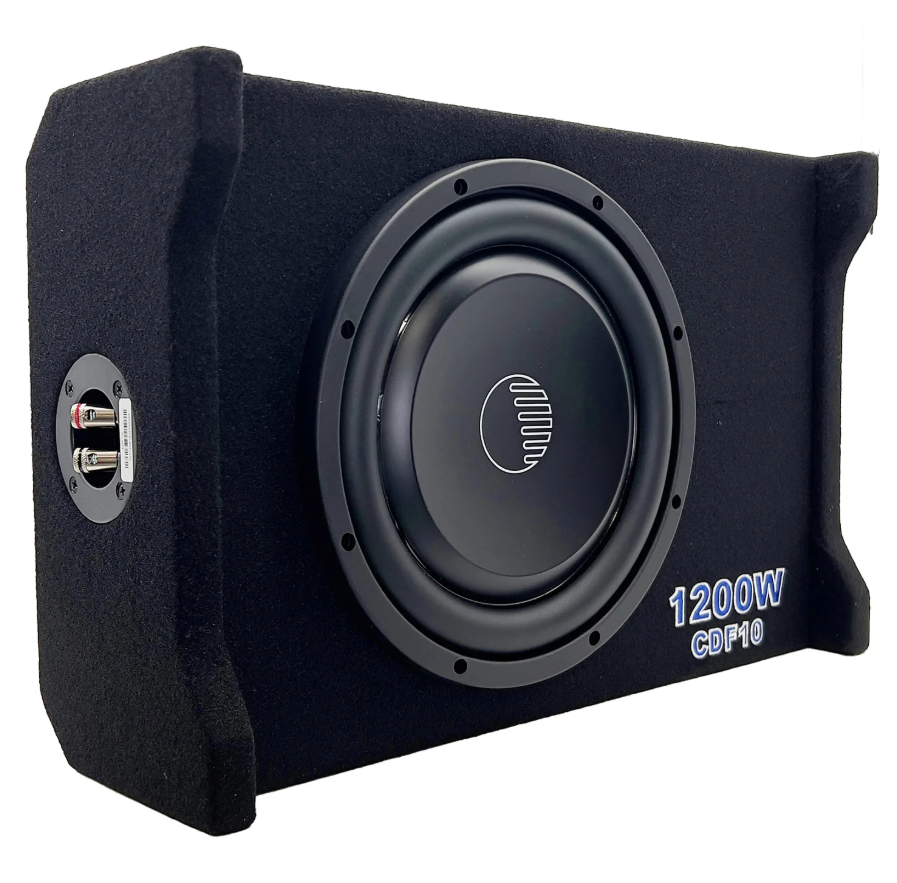

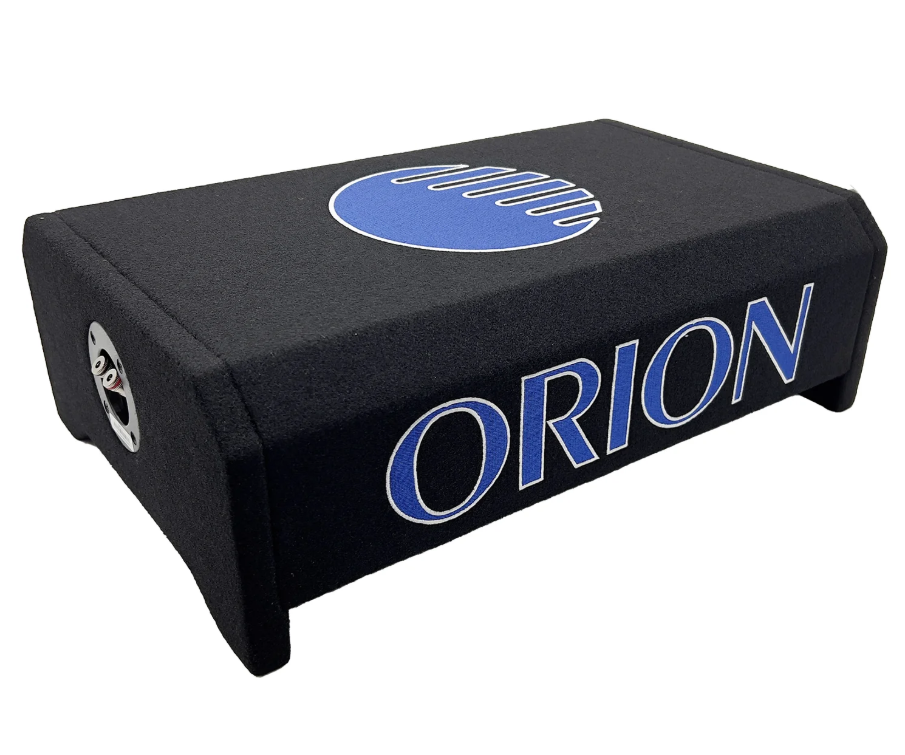

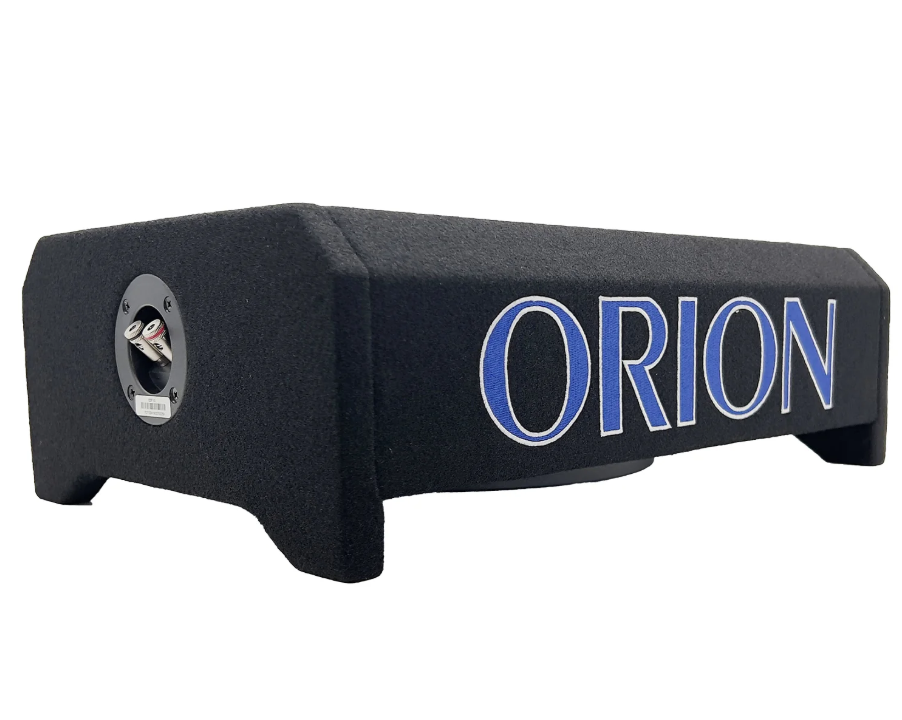

Orion Cobalt CDF10 – 10-Inch Passive Down-Firing Enclosure

Bring deeper, more powerful bass to your car audio system with the Orion Cobalt CDF10 10" Passive Down-Firing Enclosure. Designed for drivers who want strong low-frequency performance without giving up excessive cargo space, this compact enclosure combines a 10-inch subwoofer with a space-conscious down-firing design. Rated at 400W RMS and 1,200W peak power handling, the CDF10 is an excellent choice for upgrading factory audio systems, enhancing daily-driven vehicles, and building a clean custom sound system.

The CDF10 uses a down-firing configuration that directs bass toward the vehicle's floor, helping produce a fuller and more immersive low-frequency response while protecting the subwoofer from direct exposure. Its airtight sealed MDF enclosure is designed to provide controlled bass performance while minimizing unwanted resonance. A spun aluminum cone and high-strength EPDM rubber surround support responsive and reliable bass reproduction, while the automotive-grade carpet finish provides a clean appearance and additional protection. With its compact footprint and 0.5 cubic-foot enclosure volume, the CDF10 is well suited for vehicles where space and bass performance are equally important.

Key Features

• High-Output 10" Passive Down-Firing Enclosure – Delivers 400W RMS and 1,200W peak power handling
• Down-Firing Design – Directs bass toward the vehicle's floor for deeper and more immersive low-frequency response
• Passive Configuration – Designed to be powered by a compatible external amplifier
• Airtight Sealed Enclosure – Helps deliver controlled and accurate bass performance
• Premium MDF Construction – Provides a rigid enclosure structure and helps minimize unwanted resonance
• Spun Aluminum Cone – Designed for responsive and durable low-frequency reproduction
• High-Strength EPDM Rubber Surround – Supports controlled cone movement and long-term durability
• 4-Ohm Final Impedance – Compatible with a variety of external amplifier configurations
• Space-Saving Design – Provides powerful bass without taking up excessive cargo space
• Automotive-Grade Carpet Finish – Offers a clean appearance and helps protect the enclosure
• Cobalt Series Performance – Built for reliable bass enhancement in everyday car audio systems

Specifications

• Model: CDF10
• Series: Cobalt
• Speaker Size: 10"
• Enclosure Type: Passive Down-Firing / Airtight Sealed
• Power Handling RMS: 400 Watts
• Power Handling Peak: 1,200 Watts
• Final Impedance: 4 Ohms
• Sensitivity: 95 dB
• Frequency Response: 30 Hz–500 Hz
• Cone Material: Spun Aluminum
• Surround Material: High-Strength EPDM Rubber
• Enclosure Material: MDF
• Enclosure Volume: 0.5 cu. ft.
• Dimensions: 18.7" × 6.1" × 12.2" (W × H × D)
• Dimensions: 475 × 155 × 310 mm (W × H × D)
• Carpet Type: Black and Grey Industrial-Strength Carpet

Package Includes

• 1 × Orion Cobalt CDF10 10" Passive Down-Firing Enclosure
• 1 × Owner's Manual

SKU: ORI-CDF10
UPC: 818550019027
