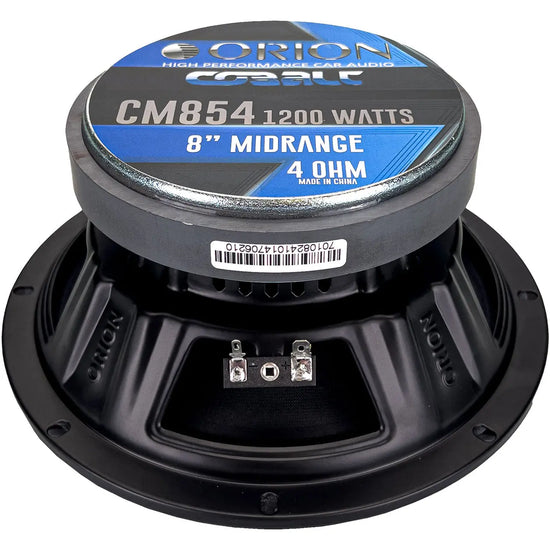

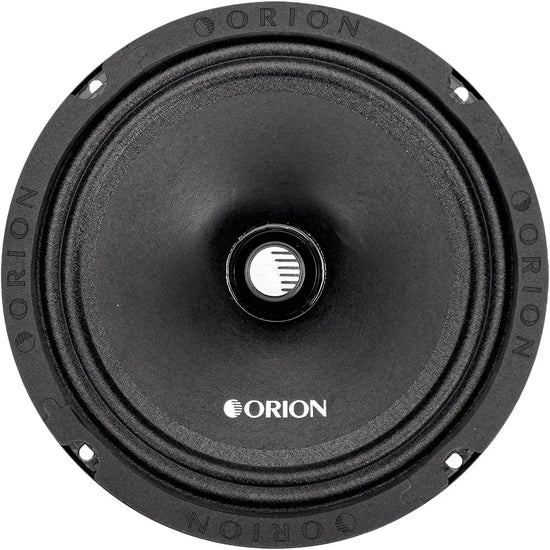

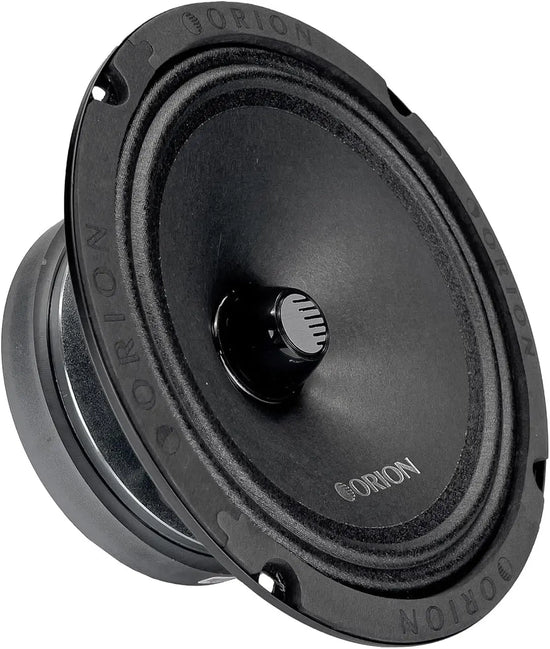

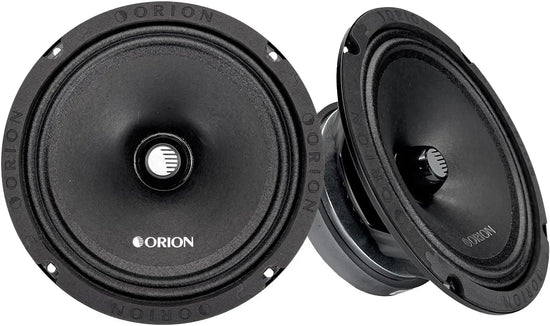

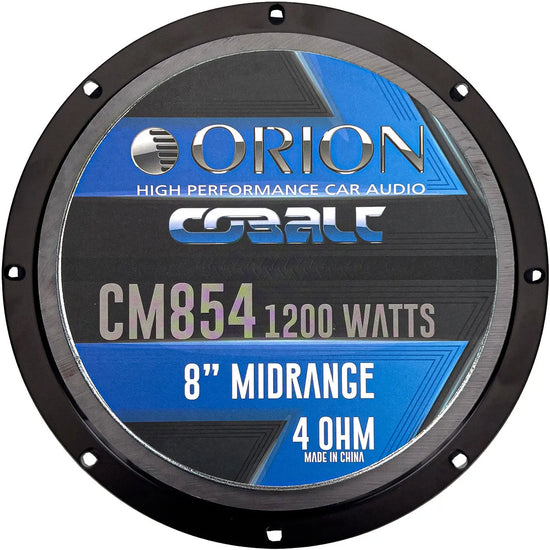

Orion CM854 High Efficiency 8" Midrange Bullet Speakers 4-Ohm 300W RMS / 1200W MAX
The CM854 Midrange Speaker is perfect for those seeking precision and dynamic performance in a reliable design. It delivers crystal-clear, balanced midrange frequencies and handles demanding environments with ease. Key features include a bullet phase plug for enhanced audio clarity and dispersion, a heavy-gauged stamped steel frame for strength and rigidity, and a non-pressed paper cone with a treated cloth accordion surround for durability and accurate sound reproduction. With 300 Watts RMS and 1200 Watts peak power, it offers dynamic sound performance across a wide frequency range (80 Hz to 16 kHz). Ideal for car audio enthusiasts, the CM854 combines power, durability, and precision to transform your audio experience.
Features:
4-Ohm Midrange Speaker:Ā Delivers precise and accurate sound reproduction, integrating seamlessly into any high-performance audio system.
Bullet Phase Plug:Ā Enhances sound clarity, reduces distortion, and cools the voice coil, providing consistent, high-quality audio.
Heavy-Gauged Stamped Steel Frame:Ā Offers exceptional strength and rigidity, minimizing vibrations and resonance for improved sound clarity.
High-Temperature Coating:Ā Protects the speaker components from heat during extended use at high power levels, ensuring consistent performance.
High Power Handling:Ā 300 Watts RMS and 1200 Watts peak power for dynamic, powerful sound performance in any environment.
Durable Construction:Ā Features a non-pressed paper cone and a treated cloth accordion surround for durability and accurate sound reproduction.
Wide Frequency Range:Ā From 80 Hz to 16 kHz, capturing detailed midrange frequencies for a rich, immersive audio experience.
Specifications:
Speaker Size:Ā 8" (Inches)
Voice Coil Configuration:Ā 4 ohm
Power Handling (Peak):Ā 1200 Watts
Power Handling (RMS):Ā 300 Watts
Sensitivity:Ā 96 dB
Frequency Response:Ā 80 Hz - 16 kHz
Voice Coil Diameter:Ā 1.5" (Inches)
Midrange Speaker:Ā 1 Pair (2 Speakers)
Grill Included:Ā No
Cone Material:Ā Non-Pressed Paper Cone
Damper Material:Ā Poly Cotton
Surround Material:Ā Accordian Treated Cloth
Magnet Information:Ā 44 Oz Ferrite
Mounting Depth:Ā 81mm / 3.19 (Inches)
Overall Depth:Ā 88.7mm / 3.49 (Inches)
Cutout Diameter:Ā 184.5mm / 7.26 (Inches)
Overall Diameter:Ā 209.4mm / 8.24 (Inches)
Ā
Attribute | Details |
---|---|
Model / SKU | CM854 |
UPC | 818550010147 |
Speaker Size | 8ā³ (203āÆmm) |
Impedance | 4āÆĪ© |
Power Handling | 300āÆW RMS / 1200āÆW MAX |
Sensitivity | 96āÆdB |
Frequency Response | 80āÆHz ā 16āÆkHz |
Voice Coil | 1.5ā³ high-temp, Kapton former |
Woofer Cone Material | Nonāpressed paper |
Surround Material | Treated cloth accordion |
Magnet | 44āÆoz ferrite |
Mounting Depth | 81āÆmm (3.19ā³) |
Overall Depth | 88.7āÆmm (3.49ā³) |
Cutout Diameter | 184.5āÆmm (7.26ā³) |
Overall Diameter | 209.4āÆmm (8.24ā³) |
