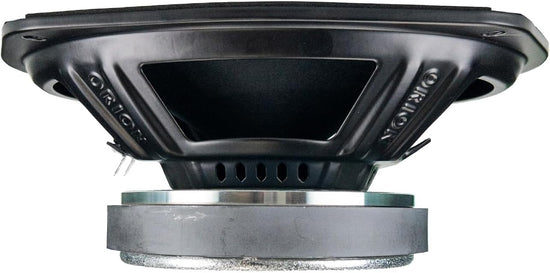

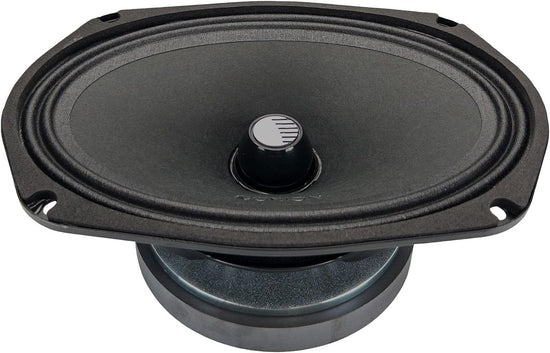

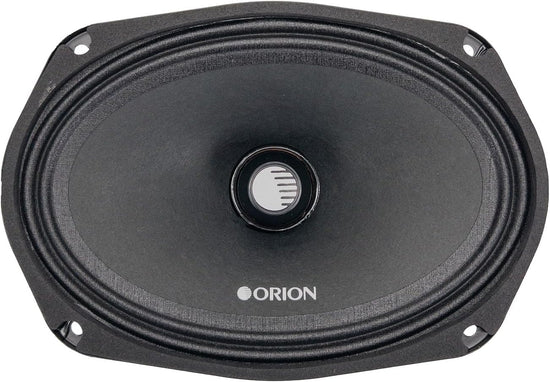

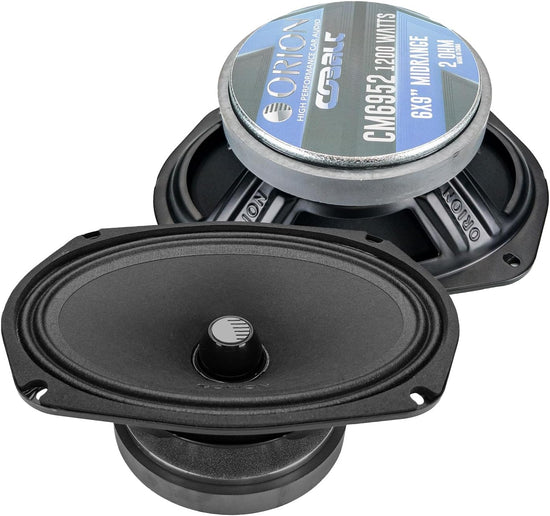

Orion CM6952 High Efficiency 6x9" Midrange Bullet Speaker 2-Ohm 300W RMS / 1200W MAX
The CM6952 Midrange Speaker is perfect for those seeking precision and dynamic performance. It features a bullet phase plug for enhanced audio clarity and dispersion, and a heavy-gauged stamped steel frame for strength and rigidity. The non-pressed paper cone and treated cloth accordion surround ensure durability and accurate sound reproduction. With 300 Watts RMS and 1200 Watts peak power, and a frequency range from 70 Hz to 20 kHz, this speaker delivers crystal-clear, balanced midrange frequencies, making it ideal for high-performance audio systems.
Features:
High-Efficiency 2-Ohm Midrange Speaker: Delivers precise and accurate sound reproduction, integrating seamlessly into any high-performance audio system.
Bullet Phase Plug: Enhances sound clarity, reduces distortion, and cools the voice coil, providing consistent, high-quality audio.
Heavy-Gauged Stamped Steel Frame: Offers exceptional strength and rigidity, minimizing vibrations and resonance for improved sound clarity.
High-Temperature Coating: Protects the speaker components from heat during extended use at high power levels, ensuring consistent performance.
High Power Handling: 300 Watts RMS and 1200 Watts peak power for dynamic, powerful sound performance in any environment.
Durable Construction: Features a non-pressed paper cone and a treated cloth accordion surround for durability and accurate sound reproduction.
Wide Frequency Range: From 70 Hz to 20 kHz, capturing detailed midrange frequencies for a rich, immersive audio experience.
Specifications:
Speaker Size: 6x9" (Inches)
Voice Coil Configuration: 2 ohm
Power Handling (Peak): 1200 Watts
Power Handling (RMS): 300 Watts
Sensitivity: 95 dB
Frequency Response: 70 Hz - 20 kHz
Voice Coil Diameter: 1.5" (Inches)
Midrange Speaker: 1 Pair (2 Speakers)
Grill Included: No
Cone Material: Non-Pressed Paper Cone
Damper Material: Poly Cotton
Surround Material: Accordion Treated Cloth
Magnet Information: 44 Oz Ferrite
Mounting Depth: 88mm / 3.46 (Inches)
Overall Depth: 94.8mm / 3.73 (Inches)
Cutout Diameter: 211mm / 8.31 (Inches)
Overall Diameter: 235mm / 9.25 (Inches)
Specification | Detail |
---|---|
Model | CM6952 |
Configuration | 6×9″, 2 Ω (dual speakers per pair) |
Power Handling (RMS/Peak) | 300 W RMS / 1200 W Max |
Sensitivity | 95 dB |
Frequency Response | 70 Hz – 20 kHz |
Voice Coil Diameter | 1.5″ (38 mm) Kapton/CCAW |
Cone Material | Non‑pressed paper |
Surround | Accordion treated cloth |
Magnet | 44 oz ferrite |
Bullet Phase Plug | Yes |
Frame | Heavy-stamped steel, high‑temp coating |
Mounting Depth | 88 mm |
Overall Depth | 94.8 mm |
Cutout Diameter | 211 mm |
Overall Diameter | 235 mm |
Included | Pair of speakers |
UPC | 818550019249 |
