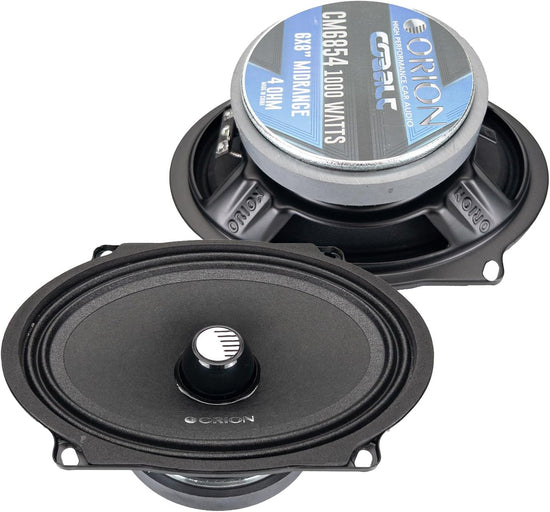

Orion CM6854 High Efficiency 5x7/6x8" Midrange Bullet Speaker 4-Ohm 250W RMS / 1000W MAX
The CM6854 Midrange Speaker is perfect for those seeking precision and dynamic performance. It features a bullet phase plug for enhanced audio clarity and dispersion, and a heavy-gauged stamped steel frame for strength and rigidity. The non-pressed paper cone and treated cloth accordion surround ensure durability and accurate sound reproduction. With 250 Watts RMS and 1000 Watts peak power, and a frequency range from 70 Hz to 20 kHz, this speaker delivers crystal-clear, balanced midrange frequencies, making it ideal for high-performance audio systems.
Features:
High-Efficiency 4-Ohm Midrange Speaker:Ā Delivers precise and accurate sound reproduction, integrating seamlessly into any high-performance audio system.
Bullet Phase Plug:Ā Enhances sound clarity, reduces distortion, and cools the voice coil, providing consistent, high-quality audio.
Heavy-Gauged Stamped Steel Frame:Ā Offers exceptional strength and rigidity, minimizing vibrations and resonance for improved sound clarity.
High-Temperature Coating:Ā Protects the speaker components from heat during extended use at high power levels, ensuring consistent performance.
High Power Handling:Ā 250 Watts RMS and 1000 Watts peak power for dynamic, powerful sound performance in any environment.
Durable Construction:Ā Features a non-pressed paper cone and a treated cloth accordion surround for durability and accurate sound reproduction.
Wide Frequency Range:Ā From 70 Hz to 20 kHz, capturing detailed midrange frequencies for a rich, immersive audio experience.
Specifications:
Speaker Size:Ā 5x7/6x8" (Inches)
Voice Coil Configuration:Ā 4 Ohm
Power Handling (Peak):Ā 1000 Watts
Power Handling (RMS):Ā 250 Watts
Sensitivity:Ā 92 dB
Frequency Response:Ā 70 Hz - 20 kHz
Voice Coil Diameter:Ā 1.5" (Inches)
Midrange Speaker:Ā 1 Pair (2 Speakers)
Grill Included:Ā No
Cone Material:Ā Non-Pressed Paper Cone
Damper Material:Ā Poly Cotton
Surround Material:Ā Accordion Treated Cloth
Magnet Information:Ā 21 Oz Ferrite
Mounting Depth:Ā 65.4mm / 2.57 (Inches)
Overall Depth:Ā 71.7mm / 2.82 (Inches)
Cutout Diameter:Ā 176.3mm / 6.94 (Inches)
Overall Diameter:Ā 198.4mm / 7.81 (Inches)
Ā
Spec | Value |
---|---|
Model | CM6854 |
UPC | 818550019270 |
Speaker Size | 5Ć7 / 6Ć8" |
Impedance | 4āÆĪ© |
Power Handling (RMS) | 250āÆW |
Power Handling (Peak) | 1000āÆW |
Sensitivity | 92āÆdB |
Frequency Response | 70āÆHz ā 20āÆkHz |
Voice Coil Diameter | 1.5ā³ |
Cone Material | Nonāpressed paper |
Surround Material | Accordion treated cloth |
Magnet | 21āÆoz ferrite |
Bullet Phase Plug | Yes |
Frame | Heavyāgauged stamped steel |
Mounting Depth | 65.4āÆmm / 2.57ā³ |
Cutout Diameter | 176.3āÆmm / 6.94ā³ |
Overall Diameter | 198.4āÆmm / 7.81ā³ |
